SKU:61650

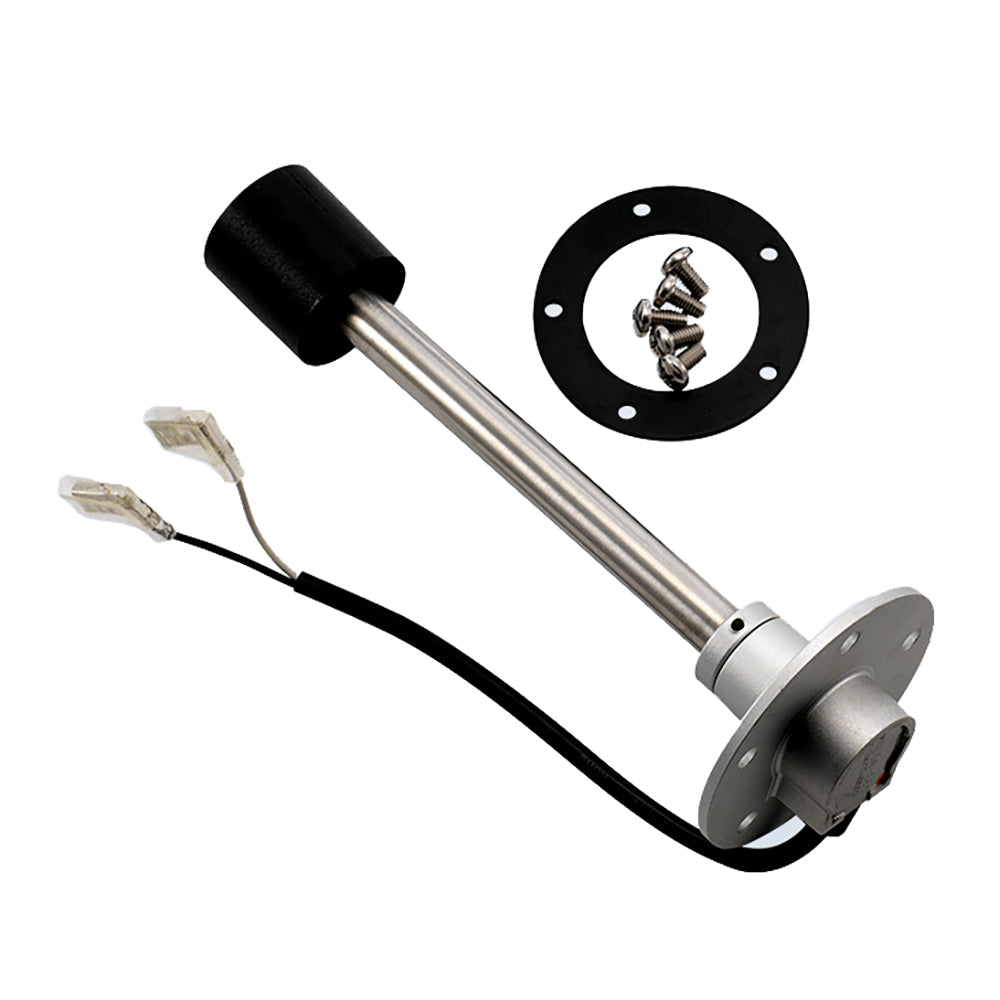

Reed Switch Fuel Sender - 350 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-635) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 13.8 inches deep. Unlike traditional float arm senders, this design features a floatless, tubular construction that dampens fuel slosh and prevents erratic gauge readings. Its stainless steel body ensures durability and resistance to harsh marine environments, making it suitable for both marine and truck fuel tanks. The unit utilizes a top-mounted mounting flange with a standard SAE 5-hole pattern, complete with neoprene gasket and hardware for straightforward installation. The resistance range of 240-33 Ohms ensures compatibility with most standard fuel gauges, providing accurate and consistent readings.
The sensor is equipped with insulated 1/4-inch spade connectors for secure electrical connections and ground floating design for safe operation. Ethanol-resistant Viton gasket enhances longevity by resisting fuel-related deterioration, ensuring a long service life. This fuel sender is an ideal upgrade for applications where space constraints or clearance issues prevent the use of conventional swing-arm senders.
Designed for ease of installation and dependable performance, the VDO Reed Switch Fuel Sender is a valuable addition to your fuel monitoring system. It’s crafted to withstand the demands of marine and truck environments, offering peace of mind with accurate fuel level readings and reduced maintenance. Please note, this product can expose you to chemicals including lead, which may cause health concerns; refer to the provided warning for more information.
Features:
