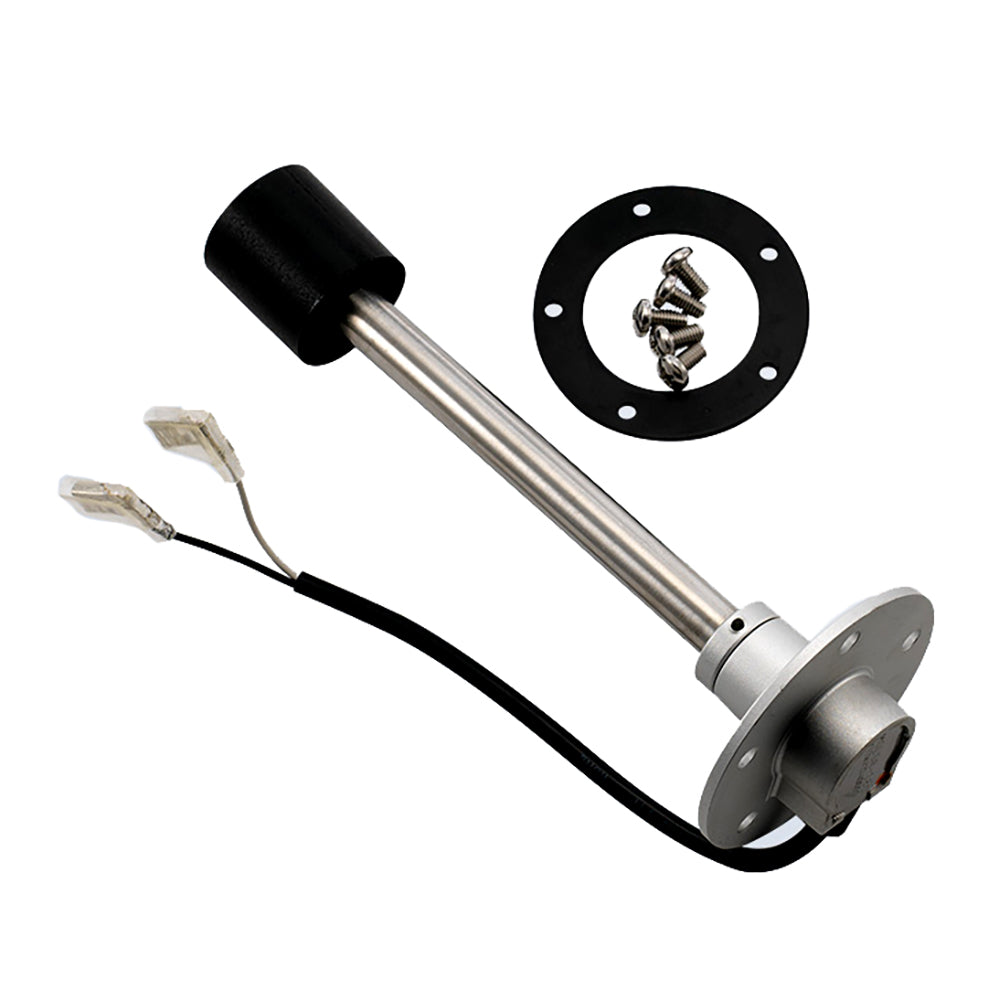

Reed Switch Fuel Sender - 400 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-640) offers a reliable and maintenance-free solution for measuring fuel levels in various tanks. Unlike traditional float-based sensors, this model features a floatless tubular design that eliminates side-to-side motion and wear parts, ensuring consistent performance over time. Its top-mounted configuration with an SAE 5-hole mounting flange makes installation straightforward, compatible with most standard marine fuel gauges and similar systems. The stainless steel construction provides durability and corrosion resistance, ideal for demanding environments. The ethanol-resistant Viton gasket further enhances longevity and seal integrity, making it suitable for a wide range of fuel types. The sensor operates within a 240-33 Ohm range, providing accurate readings, and is equipped with insulated 1/4" spade connectors for secure electrical connections. Designed to fit tanks with a depth of approximately 15.75 inches (400mm), this fuel sender ensures precise fuel level monitoring in confined or restricted spaces. Note that this product is sold individually and includes necessary mounting hardware and gasket for easy installation. The VDO Reed Switch Fuel Sender is engineered to deliver consistent, long-lasting performance, reducing the need for maintenance and minimizing erratic gauge behavior caused by traditional float sensors. It is an excellent choice for marine, automotive, or truck applications where space constraints and reliable fuel measurement are critical considerations. Proper installation and compatibility with existing gauges are essential to ensure optimal operation and safety. Please be aware of chemicals like lead present in this product, which may pose health risks; consult the provided safety warning for additional information.
Features:
