SKU:61652

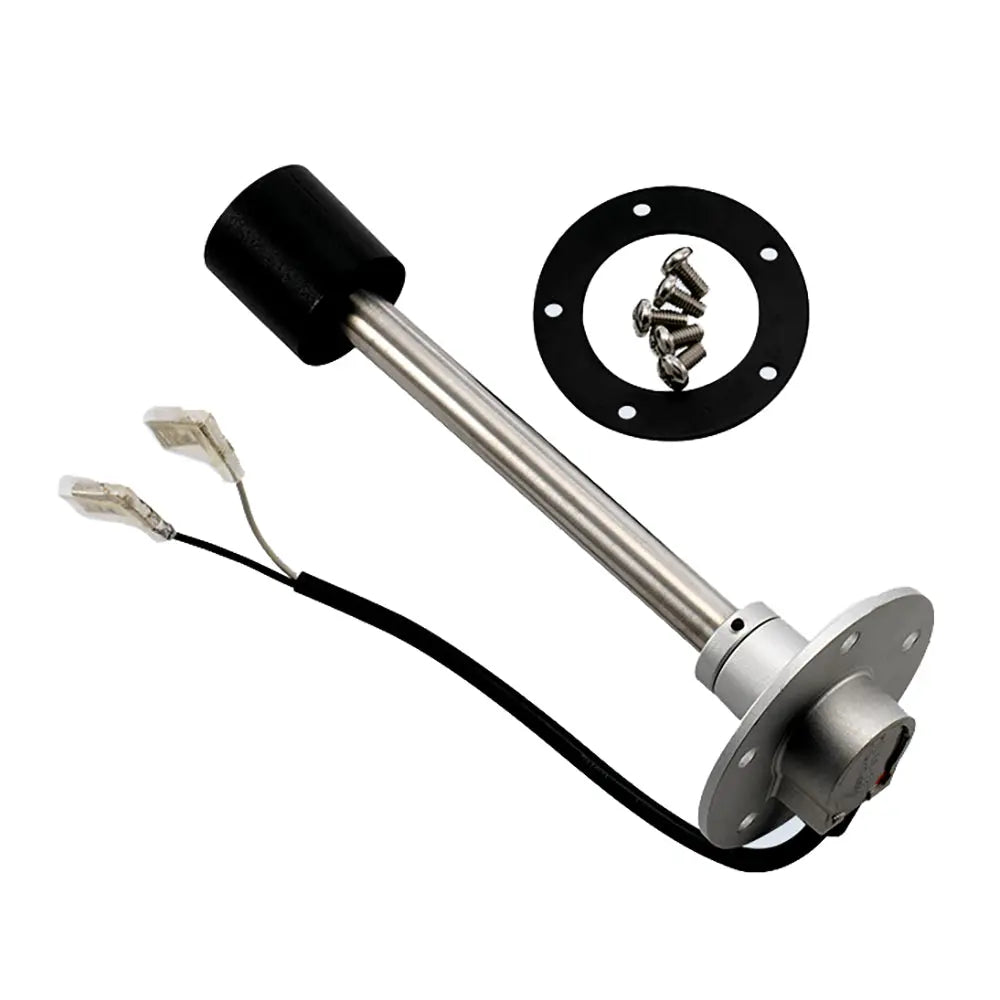

Reed Switch Fuel Sender - 450 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender Part Number 226-645 offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 17.7 inches deep. Unlike traditional float-based sensors, this floatless design eliminates side-to-side motion and wear caused by moving parts, providing consistent and accurate readings over time. Its tubular structure acts as a dampener, reducing the impact of fuel slosh on gauge accuracy, making it ideal for applications where space constraints prevent the use of swing arm sensors. The top-mounted configuration includes a standard SAE 5-hole mounting flange, complete with neoprene gasket and hardware for easy installation. Constructed from durable stainless steel, this fuel sender is built to withstand harsh marine and automotive environments, ensuring long-lasting performance. It features ethanol-resistant Viton gasket seals and operates within a 240-33 ohm range, compatible with most standard marine fuel gauges. The insulated 1/4-inch spade connectors facilitate reliable electrical connections, while the ground-floating design ensures safe operation. Designed to fit tanks with a depth of 17.7 inches, the VDO Reed Switch Fuel Sender provides precise fuel level readings, enhancing your vehicle or vessel's fuel management system. Please note, this product is sold individually and may contain chemicals such as lead, as per California regulations. For more information, visit P65Warnings.ca.gov.
Features:
