SKU:61655

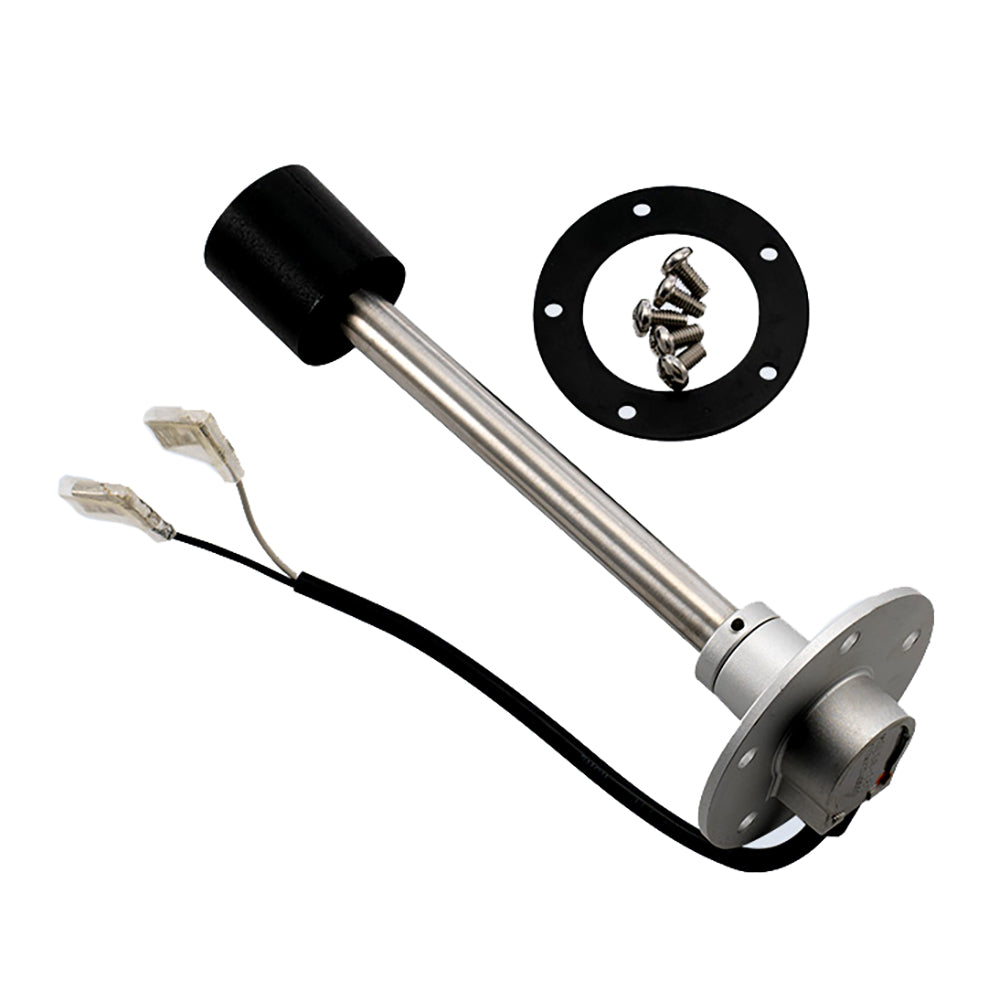

Reed Switch Fuel Sender - 800 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number: 226-680) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 31.5 inches deep. Unlike traditional float-based sensors that utilize rotating arms and resistance cards, this innovative design features a floatless tubular sensor, eliminating side-to-side motion and reducing wear over time. Its stainless steel construction ensures durability and resistance to corrosion, making it suitable for both marine and automotive applications where longevity and accuracy are critical. The sensor's design acts as a dampener, preventing gauge pointer fluctuations caused by fuel slosh, providing more stable readings for the user. It is compatible with most standard marine fuel gauges and employs an insulated 1/4 inch spade connector for secure electrical connections. The unit includes an SAE 5-hole mounting flange, neoprene gasket, and mounting hardware, simplifying installation and ensuring a tight, leak-proof fit. Designed to work with ethanol-blended fuels, the Viton gasket adds an extra layer of chemical resistance, extending the sensor's service life. With a resistance range of 240-33 Ohms, it provides precise fuel level readings, making it an excellent choice for applications requiring dependable and accurate fuel measurement. Whether for marine vessels or automotive fuel tanks, this sensor is engineered to provide consistent performance without the complexities and potential failures associated with traditional float systems. Please note that this product includes a warning regarding chemical exposure, including lead, which is mandated by California regulations, and proper handling is advised.
Features:
