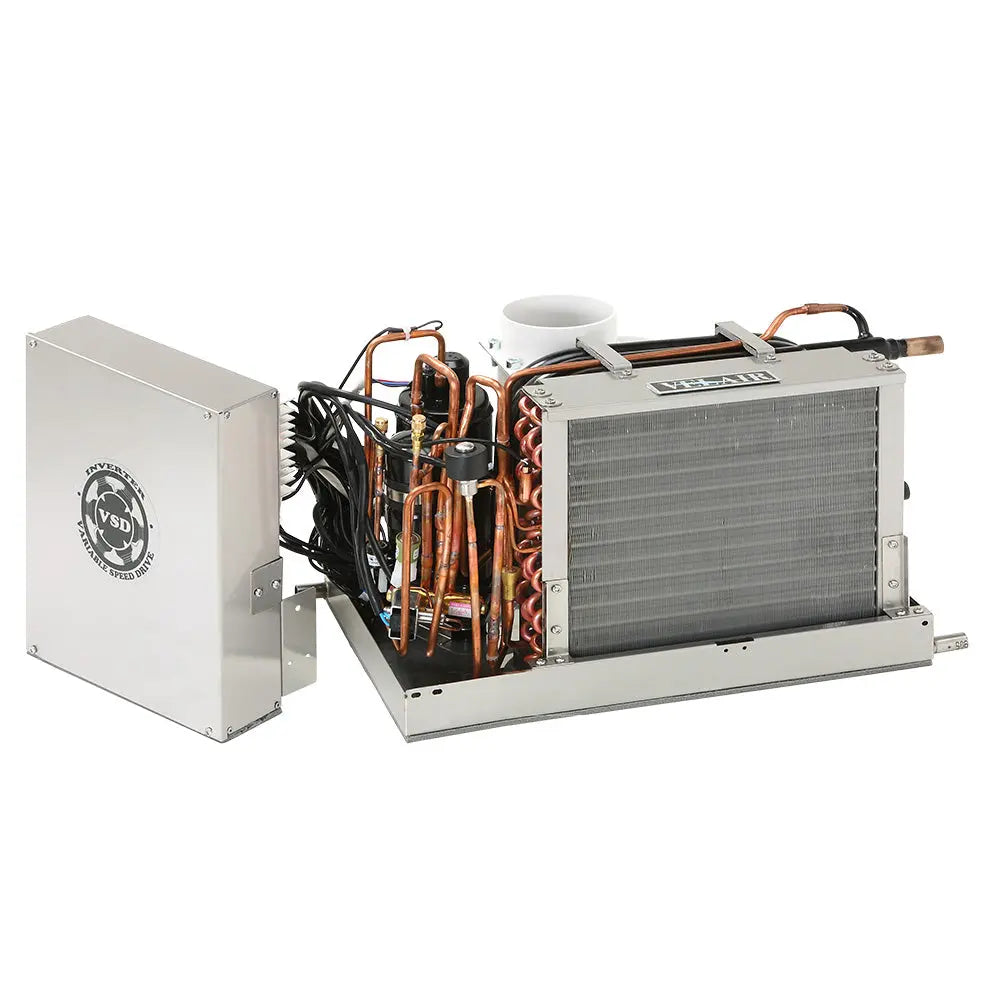

Velair 21K BTU VSD Smart Marine Air Conditioner with Reverse-Cycle Heat and Brushless Inverter Technology

21K BTU VSD Smart 115V Marine Air Conditioner Unit Brushless Variable Speed Soft Start Reverse-Cycle Heat

Self-contained VSD air conditioners provide the best existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivers cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve. Constant Flow technology fan (i10 and i16 only) Twin Rotary compressors 21.000 BTU/h max output.

The compressor continuously changes its running speed depending on the ambient and set temperatures. It operates at maximum power to cool the cabins rapidly, but once it reaches the set temperature, it reduces the power and electric consumption. In this way, it maintains the optimal comfort level with the minimum consumption. The inverter works between 20 and 100 Hz.

Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.

Velair Part Number 22571WU

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• Cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Technical Specifications:

• Input voltage - 120VAC 50/60Hz
• Refrigerant type - R410A
• Heat Pump - Yes
• Cooling Capacity - 21,000 BTU
• Maximum Air Flow - 800 m3/h
• Air Duct Diameter - 6
• Sea Water Flow Rate - 5.3 gpm/20 l/min
• Dimensions (H x W x D) - 28.7 x 17.5 x 12.7 (73 x 44.5 x 32.3 cm)
• Weight - 88.2 lbs (40 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25 (8 M) cable
• Instruction manual

The Velair Part Number 22571WU 21,000 BTU VSD Smart Marine Air Conditioner offers advanced climate control for boats and marine environments. Equipped with a brushless DC motor compressor and inverter, this self-contained unit optimizes cooling and heating efficiency by constantly adjusting its speed based on ambient conditions and set temperatures. The variable speed drive technology ensures rapid cooling, then reduces power consumption to maintain a comfortable environment with minimal energy use. Its reverse-cycle functionality allows for reliable heat pump operation, making it suitable for year-round comfort aboard your vessel. Designed to meet EMC 2004/108/EC standards, the Velair VSD unit combines high performance with energy efficiency and quiet operation, thanks to minimal fan vibration and noise levels. The cabin control display allows easy adjustments, while the optional smart control app compatible with iOS and Android provides remote operation capabilities. This versatile AC unit features a maximum airflow of 800 cubic meters per hour and is compatible with 6-inch air ducts, making installation adaptable to various marine layouts. The unit's refrigerant, R410A, ensures environmentally responsible cooling and heating performance. Its robust design and included digital control, along with an 8-meter cable and instruction manual, facilitate straightforward setup and operation. Whether cooling or heating, the Velair 21K BTU VSD unit delivers reliable, energy-efficient climate control tailored for marine environments, ensuring comfort on the water with cutting-edge inverter technology and user-friendly controls.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes for smooth operation

• High energy efficiency reduces power consumption during operation

• Minimal fan noise and vibration for quiet comfort

• Reverse-cycle functionality provides reliable heat pump performance

• Constant temperature output maximizes onboard comfort levels

• Cabin control display offers intuitive operation

• Smart Control app compatible with iOS and Android for remote management
