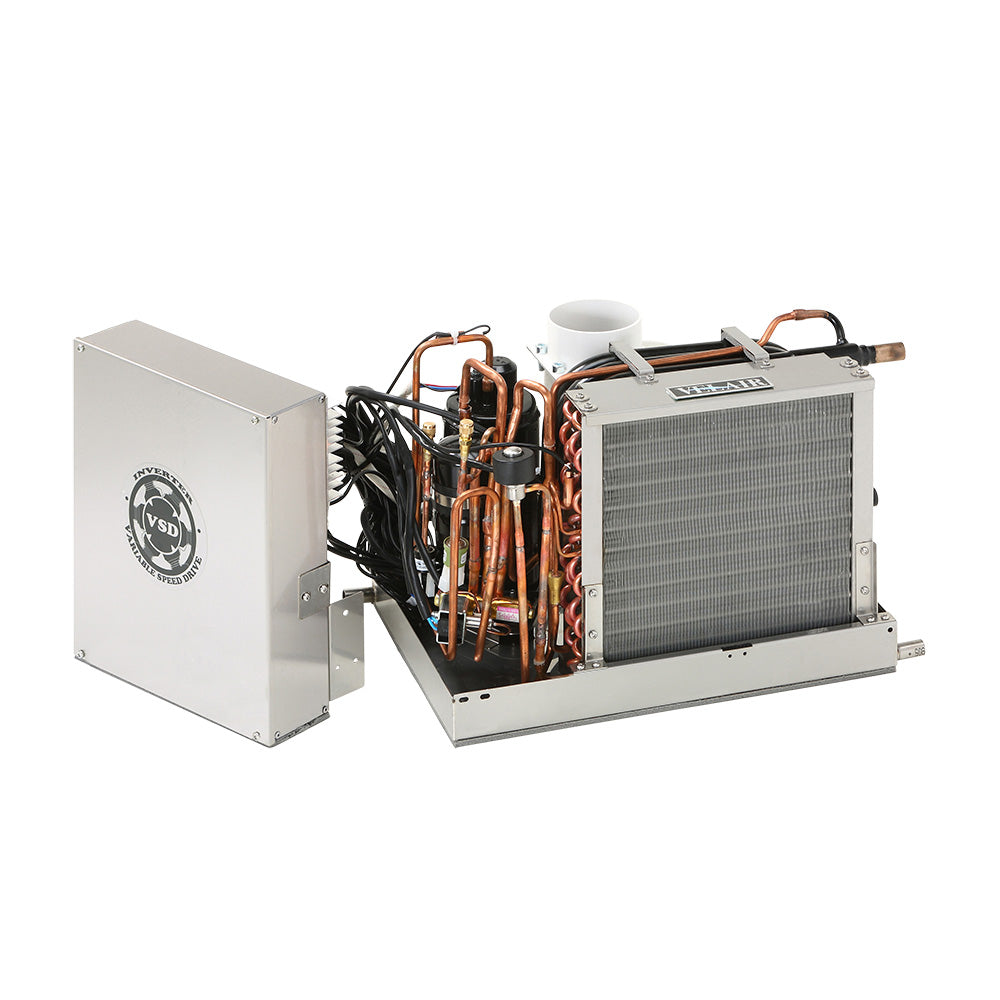

Velair Compact i10VSD SMART Marine Air Conditioner Unit - 10,000 BTU, 230VAC, Generation 2

Compact i10VSD SMART Marine Air Conditioner Unit - 230VAC- 10,000 BTU (Generation 2)

Velairs i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes. VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on ambient and set temperature. The compressor also operates at maximum power to cool rapidly.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• The cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

• Removable electric box for compact applications

Technical Specifications:

• Input voltage - 1 PH 230VAC 50/60Hz
• Refrigerant type - R410A
• Heat Pump - Yes
• Cooling Capacity - 10,000 BTU
• Maximum Air Flow - 400 m3/h
• Air Duct Diameter - 4
• Sea Water Flow Rate - 3.7 gpm/12 l/min
• Dimensions (H x W x D) - 22.5 x 12.6 x 12.7 (57.1 x 32 x 32.3 cm)
• Weight - 55.1 lbs (25 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25 (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Velair Compact i10VSD SMART Marine Air Conditioner Unit provides efficient and reliable cooling for marine environments with a capacity of 10,000 BTU. Designed with advanced VSD (Variable Speed Drive) technology, this self-contained unit features a built-in inverter and brushless DC compressor motor, which continuously adjusts its speed to match ambient and set temperatures, delivering consistent comfort without fluctuations. Its inverter technology minimizes start-up power spikes, making it suitable for use on smaller generators and weak shore power sources. The unit also offers heat pump functionality, allowing it to efficiently provide both cooling and heating to maintain a comfortable cabin environment.

Constructed for ease of use and installation, the Velair i10VSD includes a digital control panel and a smart control app compatible with iOS and Android devices, enabling remote operation and monitoring. Its design incorporates a removable electric box for streamlined installation in compact spaces, making it ideal for marine applications where space is limited. The system operates quietly with minimal vibration, thanks to optimized fan design and noise reduction features, enhancing onboard comfort without disturbance. The unit is built to withstand marine conditions, utilizing environmentally friendly R410A refrigerant, and features a maximum airflow of 400 cubic meters per hour to ensure effective air circulation.

Included in the package are the self-contained AC unit, a digital control interface with an 8-meter cable, and an instruction manual. With its compact dimensions, the Velair i10VSD is suitable for various marine installations, providing reliable climate control with advanced energy efficiency. Whether cooling or heating, this unit ensures a steady and comfortable cabin environment, making it a versatile choice for maritime applications where space, efficiency, and ease of control are paramount.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes

• Highest energy efficiency with continuous adjustment of compressor speed

• Minimal fan noise and vibration for onboard comfort

• Reverse-cycle heat pump function for heating and cooling

• Constant temperature output maximizes comfort

• User-friendly cabin control display

• Smart control app available for iOS and Android devices

• Removable electric box facilitates compact installation
