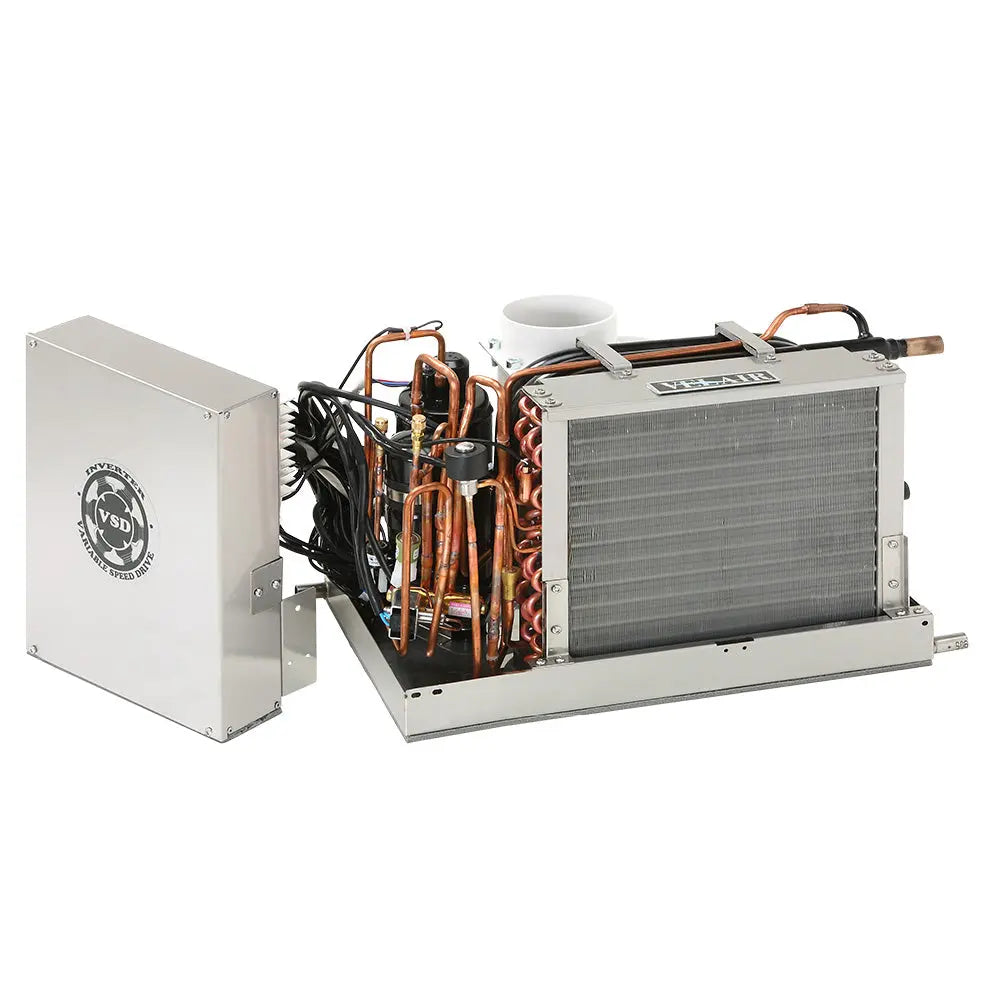

Velair Compact i16VSD Smart Marine Air Conditioner Unit - 115V, 16,000 BTU, Generation 2

Compact i16VSD SMART Marine Air Conditioner Unit - 115V - 16,000 BTU (Generation 2)

Velairs i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption, and no more start-up power spikes. VSD units offer top comfort with no temperature or humidity fluctuation and work properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - a compressor featuring a brushless DC motor and an inverter that constantly controls the speed and cooling power delivered.

The compressor continuously changes its running speed depending on the ambient and set temperature. The compressor also operates at maximum power to cool rapidly.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• The cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Generation Two Difference:

• Removable electric box for compact applications

Technical Specifications:

• Input voltage: 115 V
• Refrigerant type: R32
• Heat Pump: Yes
• Cooling Capacity - 16,000 BTU
• Maximum Air Flow: 550 m3/h
• Air Duct Diameter: 5 (125mm)
• Sea Water Flow Rate: 4.5 gpm/17 L/min
• Dimensions L x H x P (with electrical box): 25.6 x 13 x 14 (650 x 330 x 355 cm)
• Weight: 61.7 lbs (28 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25 (8 M) cable
• Instruction manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Velair Compact i16VSD Smart Marine Air Conditioner Unit is designed to deliver reliable cooling performance aboard boats and yachts with its 16,000 BTU capacity and advanced variable speed drive technology. Featuring a built-in inversion system, this self-contained unit optimizes energy efficiency, reducing power consumption and eliminating start-up power spikes that are common with traditional systems. Its inverter-controlled compressor continuously adjusts its speed based on ambient conditions, ensuring consistent temperature and humidity levels for maximum comfort. This design results in minimal noise and vibration, making it suitable for quiet marine environments. The reverse-cycle feature also provides efficient heat pump functionality, allowing the unit to serve as both an air conditioner and heater, effectively managing cabin climate year-round. The intuitive cabin control display simplifies operation, and the available smart control app compatible with iOS and Android devices provides remote management of all functions. Its compact size with a removable electrical box makes installation in tight spaces straightforward without sacrificing performance. Powered by environmentally friendly R32 refrigerant, this unit is suitable for use on boats with limited shore power or smaller generators, thanks to its efficient operation. The unit includes a digital control panel, a long 26.25-foot control cable, and a comprehensive instruction manual to ensure proper setup and operation. With a compact footprint and lightweight design, the Velair i16VSD is an ideal choice for marine climate control, combining cutting-edge technology with ease of use and energy efficiency.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes

• Highest energy efficiency for reduced power consumption

• Minimal fan noise and vibration for quiet operation

• Reverse-cycle for versatile heat pump functionality

• Constant temperature output maximizes comfort

• User-friendly cabin control display

• Smart Control app available for iOS and Android devices

• Removable electrical box for versatile installation in tight spaces
