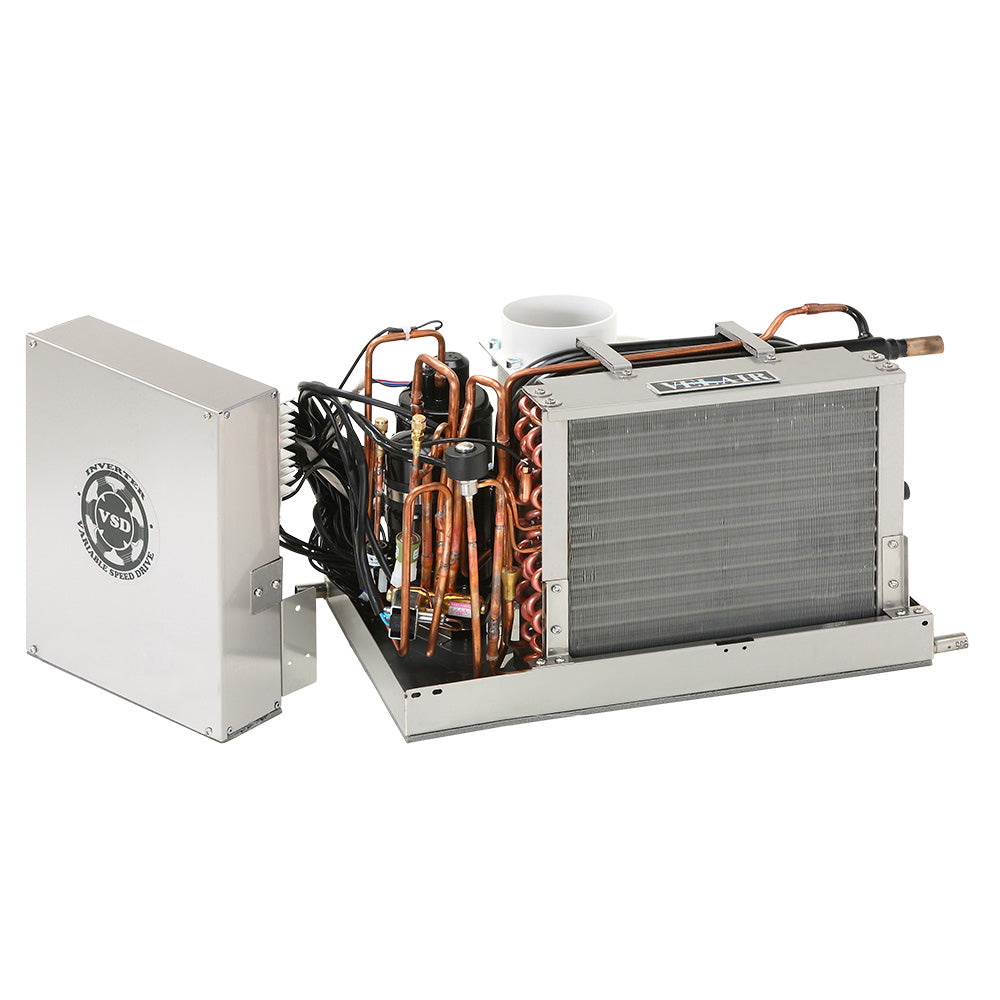

Velair Compact i21VSD Marine Air Conditioner Unit - 21,000 BTU, 230V with VSD Technology

Compact i21VSD Marine Air Conditioner Unit - 230V - 21,000 BTU

Velairs i-line VSD (Variable Speed Drive) series units feature built-in inversion technology for better efficiency, less power consumption and no more more start-up power spikes. VSD units offer top comfort with no temperature or humidity fluctuation and works properly even on smaller generators and weak shore power.

Self-contained VSD air conditioners provide the best of the existing technology - compressor featuring a brushless DC motor and an inverter that constantly controls speed and cooling power delivered.

The compressor continuously changes its running speed depending on ambient and set temperature. The compressor also operates at maximum power to cool rapidly.

Velair Part Number 22571WW

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes
• Highest energy efficiency
• Minimal fan noise and vibration
• Reverse-cycle for heat pump function
• Constant temperature output maximizes comfort
• Cabin control display offers ease of use
• Smart Control iOS and Android App available to control all AC functions

Technical Specifications:

• Input voltage - 1 PH 230VAC 50/60Hz
• Refrigerant type - R410A
• Heat Pump - Yes
• Cooling Capacity - 21,000 BTU
• Maximum Air Flow - 800 m^3/h
• Air Duct Diameter - 6
• Sea Water Flow Rate - 5.3 gpm/20 l/min
• Dimensions (H x W x D) - 28.7 x 17.5 x 12.7 (73 x 44.5 x 32.3 cm)
• Weight - 88.2 lbs (40 kg)

In the Box:

• Self-contained AC unit
• Digital control and 26.25 (8 M) cable
• Instruction manual

*Sold as an Individual

The Velair Compact i21VSD Marine Air Conditioner Unit is designed for efficient cooling and heating on boats and marine vessels, providing reliable climate control with a 21,000 BTU capacity at 230V. Its self-contained design makes installation straightforward while ensuring optimal performance even on smaller generators or weak shore power sources. This unit features advanced VSD (Variable Speed Drive) technology, which eliminates start-up power spikes and enhances energy efficiency, resulting in lower power consumption and reduced operational costs. The inverter-controlled compressor adjusts its speed continuously based on ambient conditions and set temperatures, delivering consistent temperature and humidity levels for maximum comfort. The inclusion of a heat pump function allows the unit to provide heating capabilities, making it suitable for year-round use in diverse marine environments. The cabin control display offers user-friendly operation, and with the optional smart control app compatible with iOS and Android devices, users can control all AC functions remotely for added convenience. Its quiet operation and minimal vibration contribute to a peaceful onboard environment, while the reverse-cycle feature ensures versatile climate management. The Velair Part Number 22571WW guarantees durable performance, with robust construction designed to withstand marine conditions. The unit’s technical specifications include a maximum airflow of 800 cubic meters per hour, a refrigerant type of R410A, and dimensions that facilitate installation in tight spaces. This product includes the self-contained AC unit, digital control, an 8-meter control cable, and an instruction manual. Designed for marine use, it is shipped as an individual unit and must be installed by a qualified professional. For detailed installation and operation instructions, consult the included manual available online.

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes

• Highest energy efficiency

• Minimal fan noise and vibration

• Reverse-cycle for heat pump function

• Constant temperature output maximizes comfort

• Cabin control display offers ease of use

• Smart Control iOS and Android App available to control all AC functions
