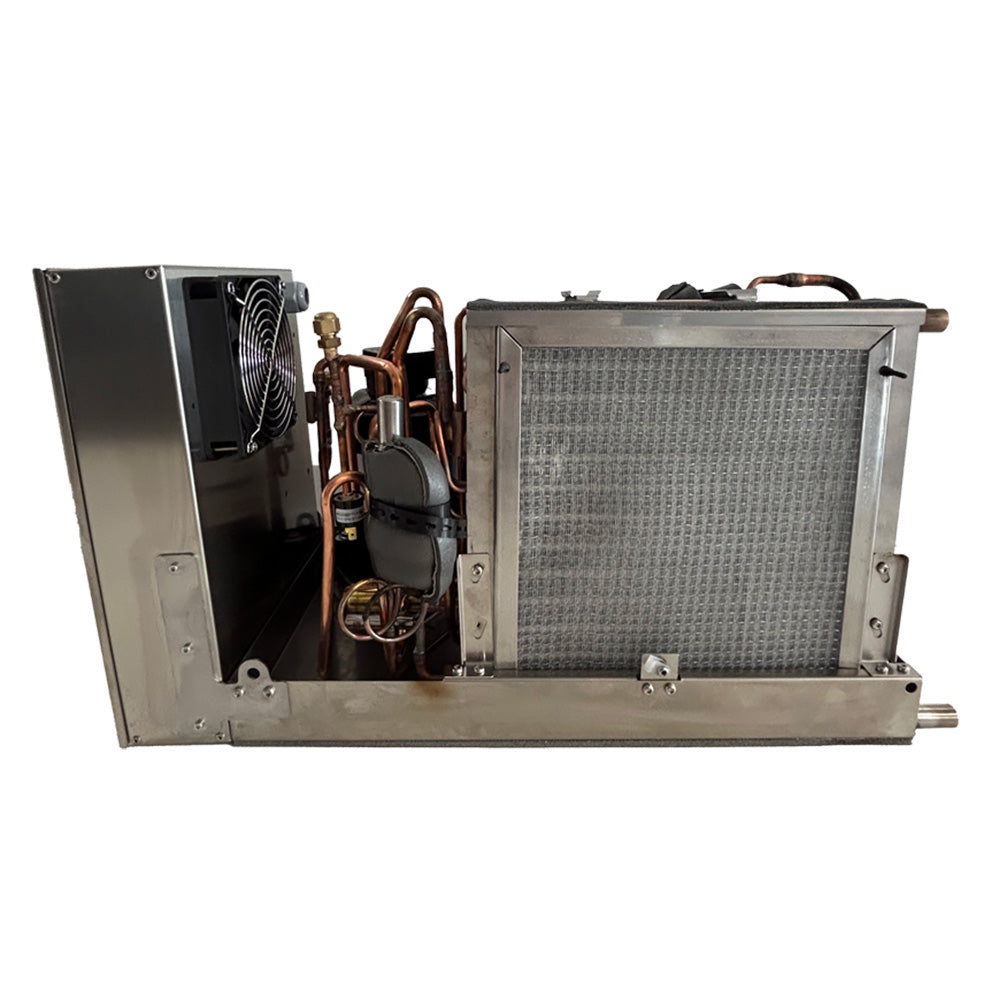

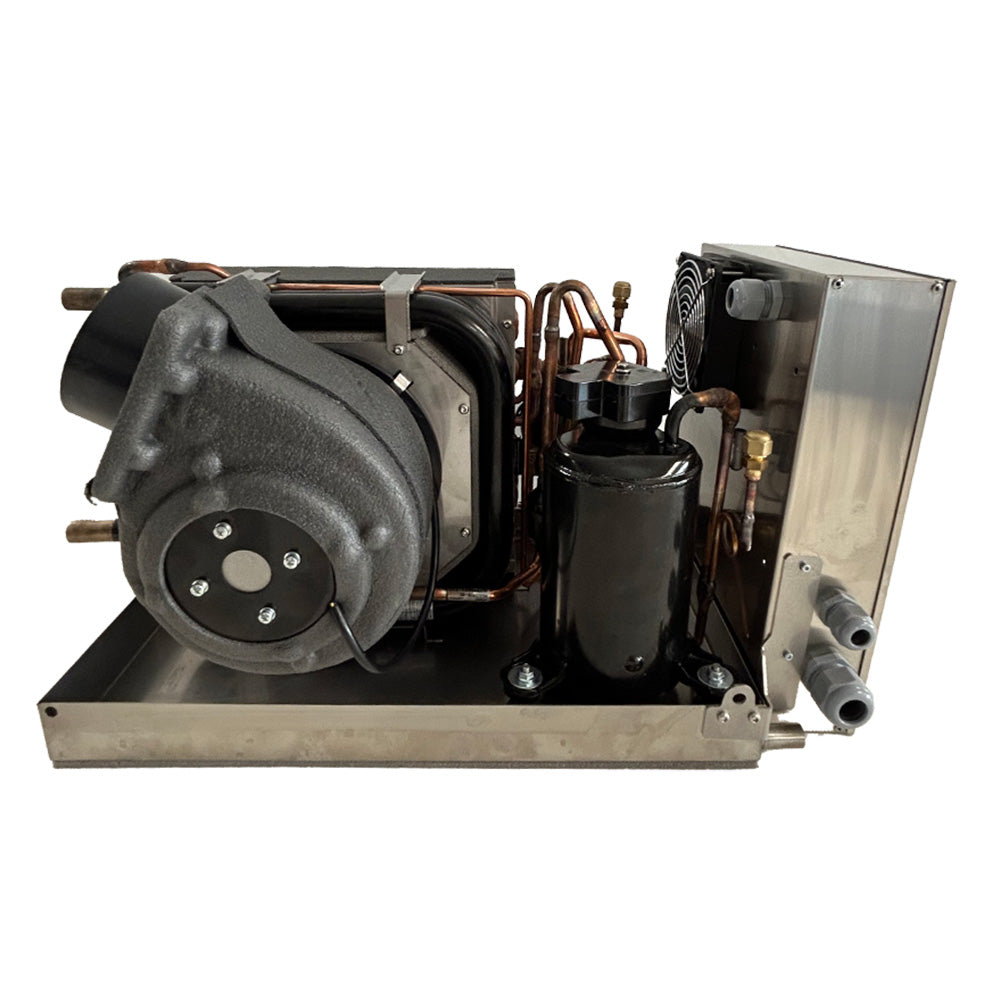

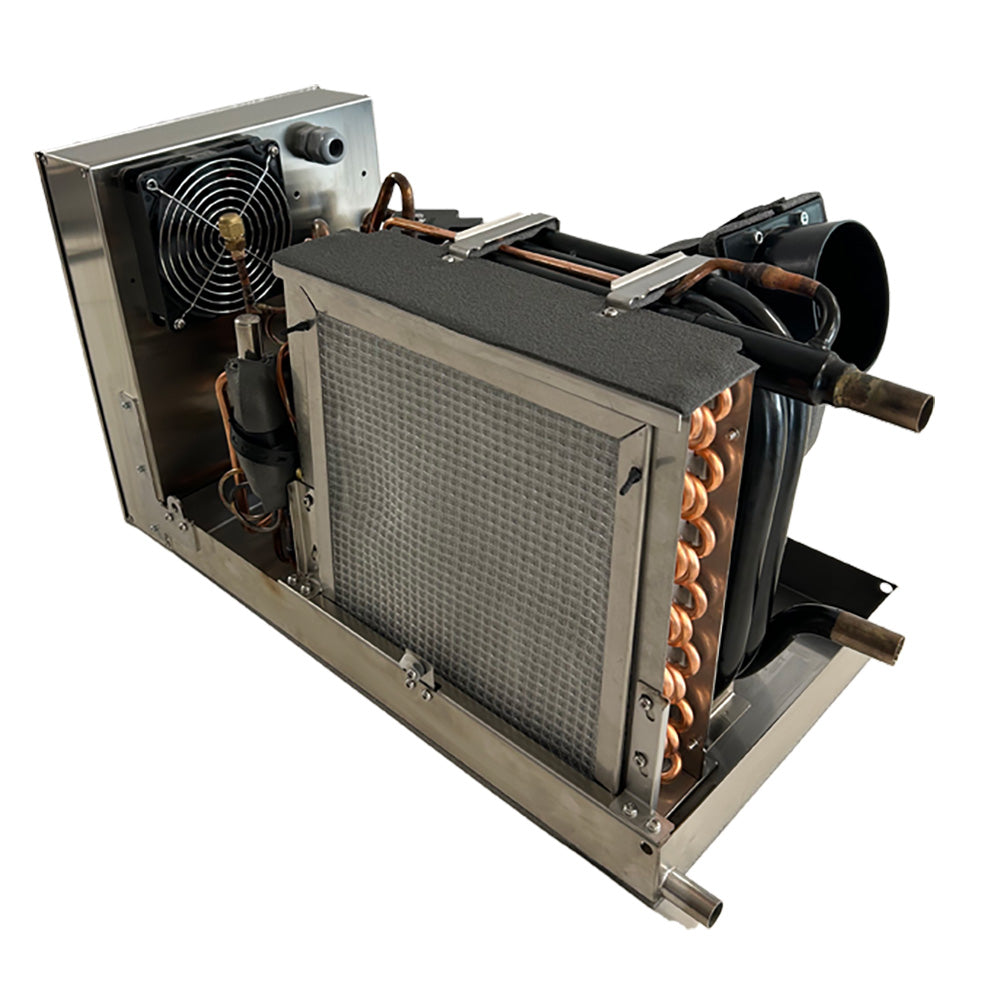

Velair i09 9,000 BTU 12V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle Heat

i09 9,000 BTU 12V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle Heat

The Velair compact DC air conditioning units are powered directly by 12 volts from the boats battery bank, without the need for a generator or inverter.

VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.

The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotatedfor easier on-board installation.

Specifications:

• Cooling Capacity Range: 2500-9000 BTU/h
• Power Supply Voltage: 12 Volts Direct Current (12VDC)
• Power Consumption Cooling (Max): 45 Amps
• Power Consumption Eco Mode: 18 Amps
• Max Air Flow: 200 CFM
• Air Exit Duct Diameter: 4
• Return Grill Minimum Size: 62 in²
• Supply Grill Minimum Size: 39 in²
• Minimum Seawater Flow: 3.2 GPM
• Refrigerant: R32 (330g)
• Weight: 55.1 LBS
• Cooling unit dimensions (with electric box): 22.5 x 12.6 x 12.6
• Control Panel Cable Length: 26/8m

Velair air conditioners are designed and manufactured in Italy and comply with electromagnetic compatibility (EMC) regulations.

Compact Velair DC air conditioning units include a Smart M7 Touch wall-mount control panel with an elegant, ultra-thin design and integrated room temperature sensor, electronic LED control with touch interface, and a magnetic installation frame on a standard 503-sized box that does not require screws for connection to the panel.

The Velair i09 marine air conditioner offers a compact and efficient cooling solution designed specifically for boats. Powered directly by a 12-volt DC power supply from your vessel's battery bank, it eliminates the need for a generator or inverter, reducing onboard energy consumption and simplifying installation. This unit features VSD inverter smart technology that ensures maximum energy efficiency by eliminating power peaks during startup and minimizing noise and vibration during operation. Its twin rotary compressor with a brushless permanent magnet synchronous motor adapts its rotation speed to maintain precise temperature control, providing a consistently comfortable environment regardless of external conditions. The integrated control panel, equipped with a room temperature sensor, allows for easy adjustments and maintains optimal climate settings with minimal noise, making it suitable for quiet marine environments. The outgoing airflow is kept steady by DC brushless variable speed fans, which can be rotated for easier installation in various boat configurations. The unit’s cooling capacity ranges from 2,500 to 9,000 BTU/h, accommodating a variety of cabin sizes. It consumes a maximum of 45 amps during cooling mode and operates more efficiently in eco mode at 18 amps, helping to conserve battery power. The air exit duct has a diameter of 4 inches, and the unit's design includes a magnetic, screwless mounting frame compatible with standard 503-sized panels for quick installation. The Velair i09 is built with environmentally friendly R32 refrigerant, weighing approximately 55 pounds, with dimensions optimized for space-saving installation onboard. Manufactured in Italy, it complies with electromagnetic compatibility regulations, ensuring reliable performance in marine environments. The smart control system features a sleek, touch-enabled wall panel with an ultra-thin profile and a magnetic mounting frame, providing an elegant and user-friendly interface. This comprehensive solution combines advanced cooling technology with ease of installation and operation, making it an ideal choice for boat owners seeking efficient climate control with minimal setup hassle. Please note that this product may not be returned to the original point of purchase; contact Velair directly for support or concerns regarding the unit.

Features:

• Powered directly by 12V DC from boat's battery bank, eliminating the need for a generator or inverter.

• VSD inverter smart technology reduces power peaks, enhances energy efficiency, and minimizes noise and vibration.

• Twin rotary compressor with brushless PMSM adapts its speed for precise temperature control.

• Integrated room temperature sensor and touch control panel for easy operation and customization.

• Variable speed fans maintain steady airflow and allow flexible installation options.

• Cooling capacity adjustable from 2,500 to 9,000 BTU/h to suit various cabin sizes.

• Environmentally friendly R32 refrigerant with a compact, lightweight design.

• Manufactured in Italy and compliant with electromagnetic compatibility standards.

• Magnetic, screwless mounting frame for quick and secure installation on standard panel sizes.
