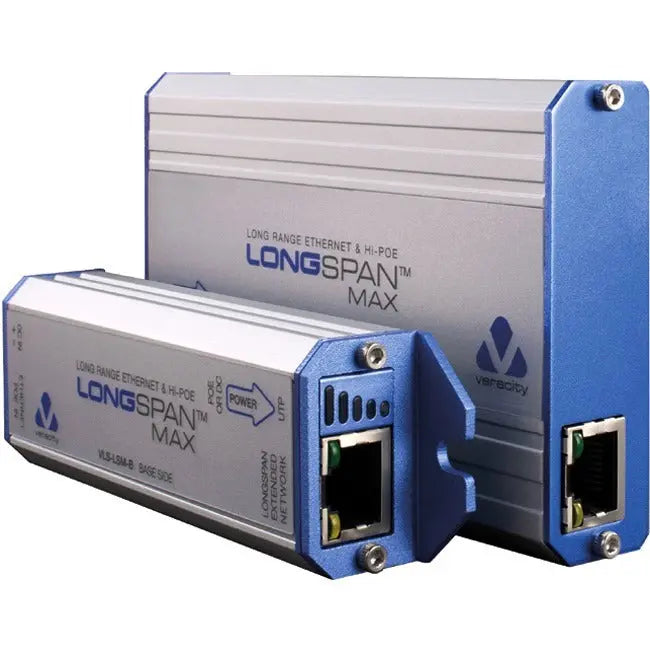

Veracity LongSpan Max (VLS-LSM-B) High-Power 90W Ethernet Network Extender for Long-Range IP Camera and PoE Device Connection

Veracity LONGSPAN Max (Base). Hi-Power, 90W long-range Ethernet, up to 820m.

The Veracity LongSpan Max (VLS-LSM-B) is a high-performance network extender designed to deliver exceptional power and bandwidth over extensive distances, making it ideal for IP cameras, PoE devices, and Ethernet network extensions. Its innovative design allows for reliable, high-speed connections up to 820 meters using standard Cat 6 cable, supporting full 200 Mbps bandwidth necessary for demanding applications such as high-definition video streaming and real-time data transfer. This model is compatible with both POE and data-only configurations, providing flexibility for diverse network environments. The LongSpan Max supports 90W of power, enabling it to power high-power PoE Plus devices over long cable runs, which is especially beneficial for outdoor IP cameras and other perimeter security equipment. It can be powered via standard IEEE 802.3af, 802.3at, and 802.3bt switches or injectors, or through Veracity’s dedicated power supplies that maximize range and power delivery. The device's auto-negotiation capability allows it to adapt seamlessly to single-pair UTP cables, facilitating easy upgrades from legacy analog systems without compromising performance or reliability. This automatic detection ensures consistent IP video quality across extended distances, even when using legacy cabling. The LongSpan Max is engineered for high-density applications, with an expandable mounting system that allows up to 24 channels to be housed within a single 1U rack space, making it suitable for large-scale surveillance and networking deployments. Smart diagnostic LEDs, including the SAFEVIEW display on POE models, provide instant feedback on power status, link quality, and cable diagnostics, enabling quick and confident installation. Whether deploying outdoor cameras, buried cable links, or extending Ethernet networks across challenging environments, the LongSpan Max offers a robust, versatile solution that simplifies network upgrades and enhances system reliability.

Features:

• Supports outdoor or perimeter IP cameras and buried cable links

• Compatible with wireless access points and any POE devices

• Extends existing Ethernet networks over long distances

• Facilitates the upgrade of analog cameras fitted with twisted pair video baluns

• Designed for deployment anywhere UTP cabling is available
