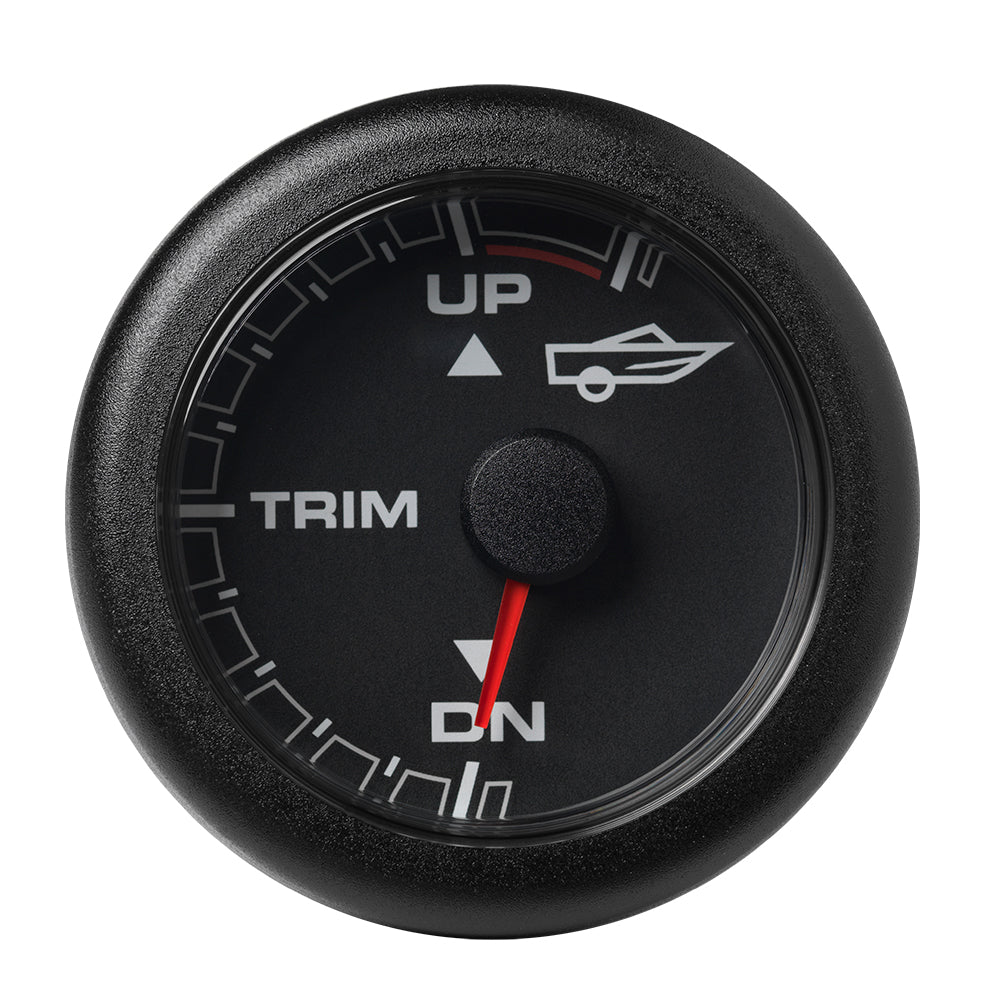

Veratron 52MM OceanLink Engine Trim Gauge with Black Dial and Bezel

52MM (2-1/16") OceanLink Engine Trim Gauge - Black Dial Bezel

OceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.

Interchangeable bezel option.

Features:

• AMP Superseal Easylink
• 270 pointer deflection angle
• Reverse polarity protection
• Anti-fog double lens
• Front rear protection rating IPX5
• Operating temperature range -20 C / +70 C
• Nominal voltage - 12/24V
• Hole diameter - 52MM

In the Box:

• Gauge
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Veratron A2C1065830001 OceanLink 52 mm engine trim gauge offers precise monitoring of your vessel's engine trim status with a sleek black dial and interchangeable bezel. Designed for seamless integration, this gauge connects directly to any OceanLink Master unit via the patented EasyLink serial bus, allowing up to 16 gauges to be daisy-chained for comprehensive vessel monitoring. Its 52 mm (2-1/16 inch) diameter ensures a compact fit while providing clear visibility of critical engine parameters. The gauge features a 270-degree pointer deflection angle for accurate readings and quick response times, making it an essential component for marine and boat applications. The robust construction includes reverse polarity protection, anti-fog double lens, and front and rear protection rated IPX5, ensuring durability against harsh marine environments. Operating efficiently within a temperature range of -20°C to +70°C and compatible with 12V or 24V systems, this gauge is built for reliable performance in diverse conditions. The package includes the gauge, bezel, rubber seal, spinlock, and comprehensive installation and safety instructions, facilitating straightforward setup and operation. Its interchangeable bezel allows customization to match your vessel's aesthetic. This product complies with safety standards but contains chemicals including lead, which may be harmful; detailed warnings are available. Designed for individual sale, the Veratron OceanLink engine trim gauge is a vital addition for vessel owners seeking precise, durable engine monitoring with flexible configuration options.

Features:

• EasyLink serial bus connection for streamlined integration

• Up to 16 gauges daisy-chained for comprehensive vessel monitoring

• Interchangeable bezel for customization

• 270-degree pointer deflection angle for precise readings

• Reverse polarity protection to prevent damage

• Anti-fog double lens for clear visibility

• IPX5 rated front and rear protection for durability

• Operates within -20°C to +70°C temperature range

• Compatible with 12V and 24V electrical systems
