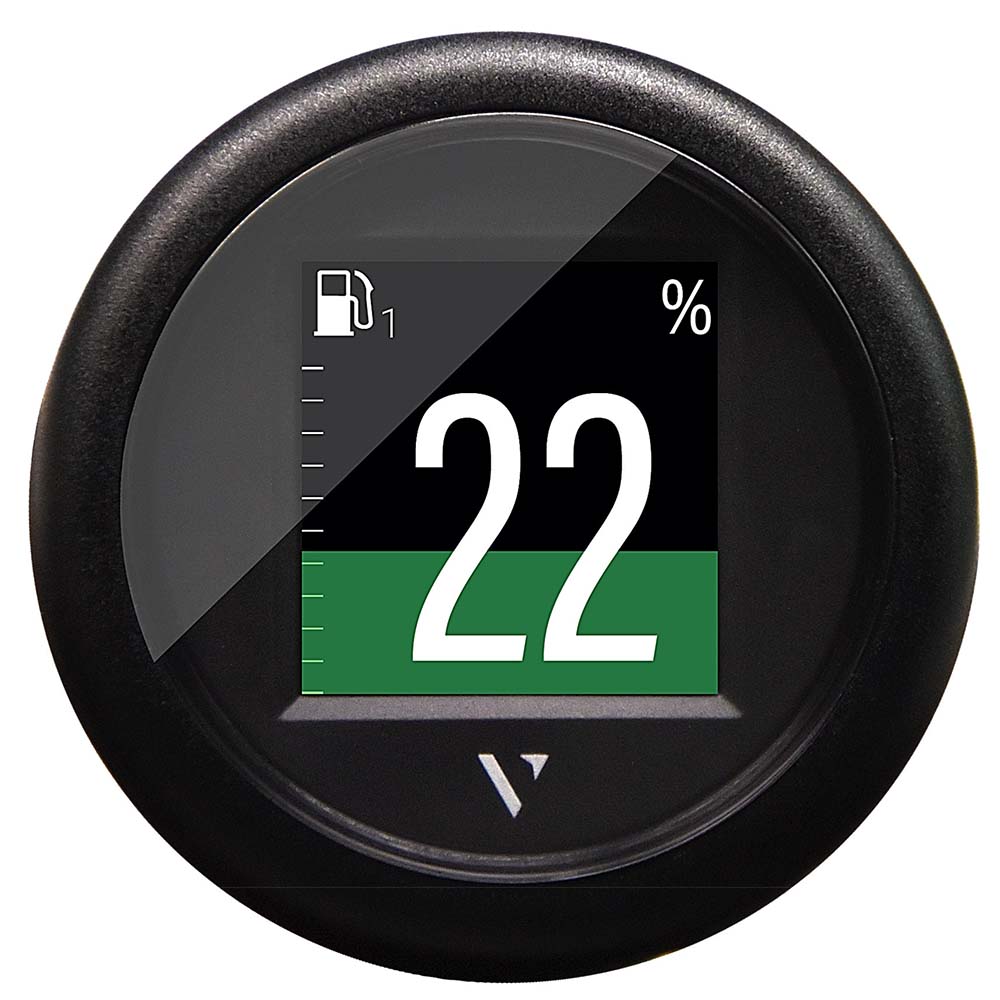

Veratron 52mm ViewLine Flex Gauge with NMEA2000 Interface and Touchless Configuration

52mm (2-1/16") ViewLine Flex Gauge

The VL Flex device can easily replicate every analog instrument thanks to the sun-readable 1.44 TFT display embedded into a standard 52 mm satellite instrument. The supported analog inputs allow you to directly read from your engine sensors, and the CAN interface expands this possibility by allowing the device to read from the digital network.

The simple but effective graphic design can be set up in a single or dual layout, presenting the data in a clear and intuitive form. The colored bar graph and the alarm display allow you to visually understand your data.

The VL Flex configurator is the easiest way to configure your VL Flex device! Thanks to the contactless configuration you can set up your all-in-one instrument with a simple tap! LaunchVL FlexApp and define your settings through the user-friendly interface, then simply hold your mobile device in proximity of the device to transfer the configuration. Thanks to the embedded passive antenna the configuration can be done powerless!

*VL Flex Configurator App has to be downloaded (Android or iOS)

Supported Configurations:

• Engine Speed - Boat Speed - Ammeter - Voltmeter - Battery SOC - Battery SOH - Rudder Angle
• Battery Temperature - Battery Autonomy - Engine Hours - Speed Over Ground - Boost Pressure
• Depth - Clock - Fuel Level - Fresh Water Level - Waste Water Level - Trim Position
• Coolant Temperature - Oil Pressure - Oil Temperature - Gear Oil Pressure - Gear Oil Temperature

Features:

• 1.44 TFT display
• NMEA2000 interface
• Integrated warning alarm
• 52 mm installation diameter

In the Box:

• VL Flex 52 gauge
• Wire harness
• Mounting Spinlock
• Safety Instructions

*Sold as an Individual

The Veratron B00043501 52mm ViewLine Flex Gauge offers a versatile and easy-to-read digital alternative to traditional analog instruments, featuring a bright 1.44-inch TFT display that is easily visible in sunlight. Designed for marine and industrial applications, this device supports both analog inputs and a CAN interface, enabling seamless integration with engine sensors and digital networks for comprehensive monitoring. Its customizable graphic layout can be configured in single or dual display modes, providing clear visualization of critical data such as engine speed, boat speed, battery status, and more. The colored bar graph and alarm indicators make it straightforward to interpret real-time information at a glance, enhancing operational safety and efficiency. The VL Flex configurator app allows for contactless setup via NFC, simplifying installation and adjustments—just tap your mobile device to transfer settings without power, thanks to its embedded passive antenna. The device's compatibility with a broad range of parameters including engine temperature, oil pressure, and water levels makes it suitable for various vessel types and applications. Its 52 mm diameter fits standard instrument panels, ensuring a neat and professional installation. Included in the package are the gauge, wire harness, mounting spinlock, and safety instructions. With its robust construction and user-friendly features, the Veratron ViewLine Flex Gauge is an ideal choice for anyone seeking an advanced, customizable, and reliable digital instrument for their boat or equipment dashboard.

Features:

• 1.44 TFT display for clear, sun-readable visuals

• NMEA2000 interface for digital network integration

• Integrated warning alarm for immediate alerts

• 52 mm installation diameter for standard mounting
