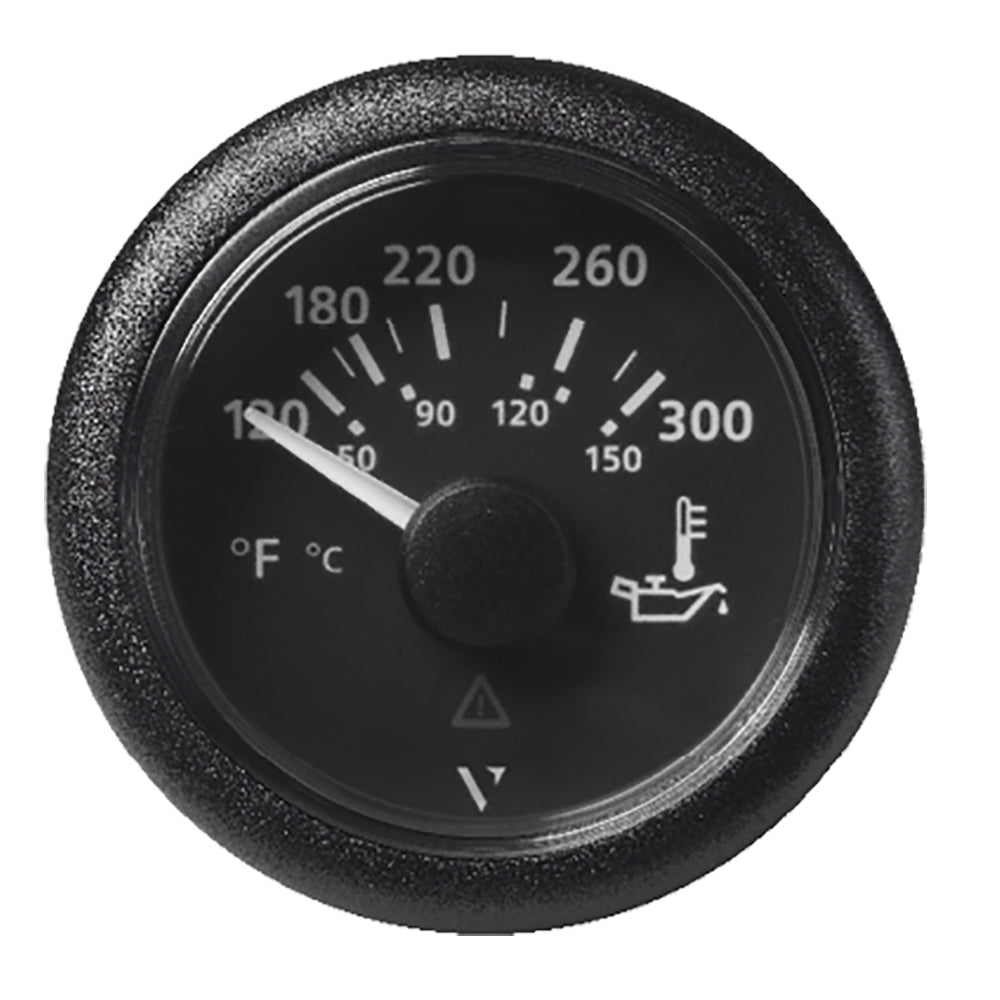

Veratron 52mm ViewLine Oil Temperature Gauge 120-300°F with Black Dial and Bezel

52MM (2-1/16") ViewLine Oil Temperature Gauge 120-300F - Black Dial Bezel

Veratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.

More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use. ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.

The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color.

Interchangeable bezel option.

Features:

• 8 pole Tyco/Hirschmann MQS plug
• Red LED Via Plus And Min Warning Light
• Operating voltage 832 V
• Input signal: standard values
• Optional make-point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth

In the Box:

• Gauge
• Connection Cable
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold as an Individual

The Veratron A2C59514165 ViewLine 52 mm Oil Temperature Gauge is a reliable instrument designed for precise engine monitoring. Featuring a black dial and bezel, this gauge offers clear readability and can be easily integrated into various cockpit configurations. Its modular design allows for customized installation options, making it suitable for both automotive and marine applications. The gauge includes a red LED warning light for high and low temperature alerts, ensuring quick detection of engine issues to prevent damage and optimize performance. Built with an anti-fog double lens and front side IP67 protection, it withstands harsh environments, providing durability and consistent accuracy over time. The instrument is powered by an 8-pole Tyco/Hirschmann MQS plug, supports reverse polarity protection, and can connect to an optional make-point switch for added functionality. Installation features include a standard 52 mm diameter and a depth of approximately 2 inches, with an interchangeable bezel option for aesthetic customization. The package includes the gauge, connection cable, bezel, rubber seal, spinlock, and comprehensive installation instructions for ease of setup. This product is sold individually and is ideal for those seeking a high-performance, versatile oil temperature monitoring solution that balances price and functionality. For detailed installation and operational guidance, refer to the included manual available online.

Features:

• 8 pole Tyco/Hirschmann MQS plug for secure connection

• Red LED Via Plus and Min warning light for immediate alerts

• Operating voltage: 8-32 V for compatibility with various vehicles

• Standard input signal for accurate readings

• Optional make-point switch connection for additional control

• Reverse polarity protection to prevent wiring errors

• Anti-fog double lens ensures clear visibility in all conditions

• Front side protection rated IP67 for durability against dust and water

• 52 mm installation diameter for easy integration

• Approximately 2-inch installation depth for flexible mounting options
