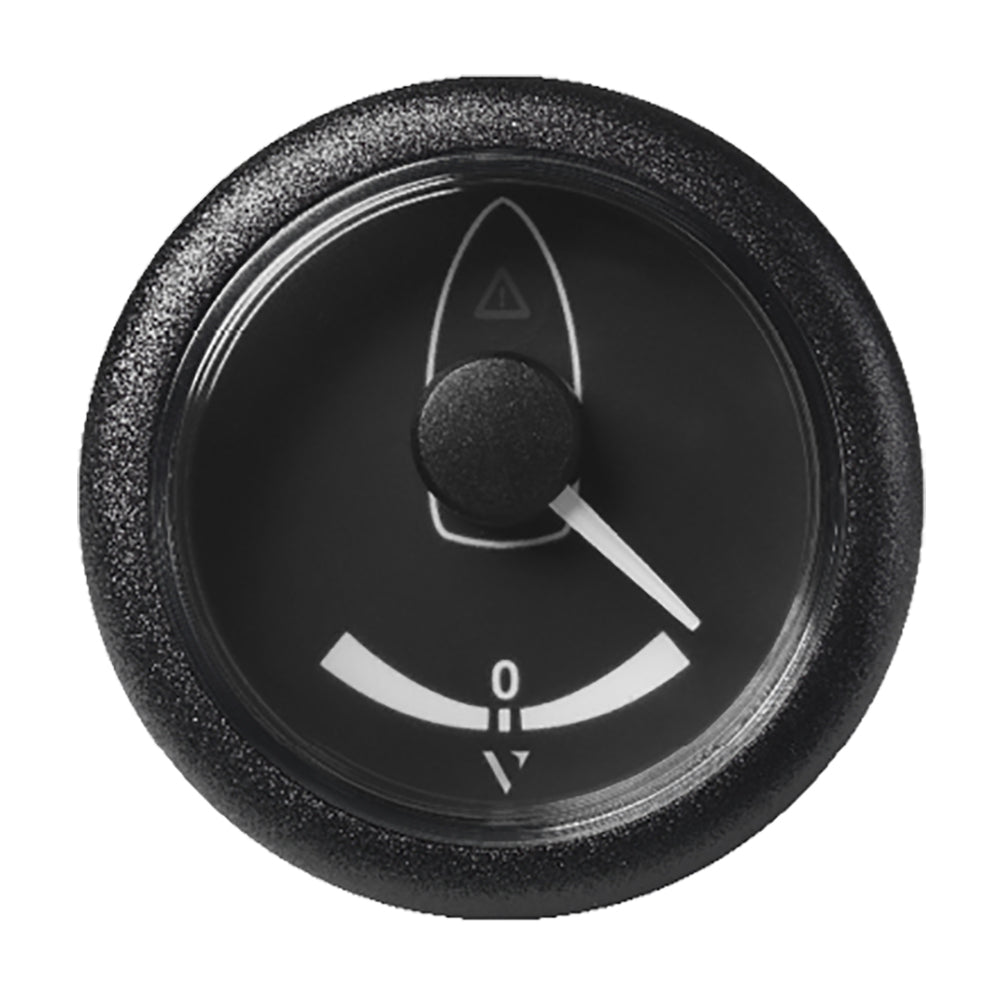

Veratron 52mm ViewLine Rudder Angle Gauge 40 STB/Port with Black Dial and Bezel

52MM (2-1/16") ViewLine Rudder Angle Gauge 40 STB/Port - Black Dial Bezel

Veratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.

More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use. ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.

The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color.

Interchangeable bezel option.

Features:

• 8 pole Tyco/Hirschmann MQS plug
• Red LED Via Plus And Min Warning Light
• Operating voltage 832 V
• Input signal: standard values
• Optional make-point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth

In the Box:

• Gauge
• Connection Cable
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold as an Individual

The Veratron 52mm ViewLine Rudder Angle Gauge (Part Number: A2C59514154) offers a reliable and precise solution for monitoring your vessel's rudder position. Designed for easy installation, this gauge features a 52 mm diameter with a sleek black dial and matching bezel, providing a clear and professional appearance suitable for various cockpit configurations. Its modular design allows for seamless integration with other ViewLine instruments, offering the flexibility to customize your onboard instrumentation to meet your specific needs. The durable construction includes an anti-fog double lens and front side protection rated at IP67, ensuring high visibility and resistance to harsh marine environments. The gauge is equipped with an 8-pole Tyco/Hirschmann MQS plug for secure connections and supports optional make-point switches for enhanced functionality. With reverse polarity protection and a broad operating voltage range of 8-32 V, this gauge assures safe and consistent performance even under demanding conditions. The integrated red LED warning lights for Via Plus and Min provide quick visual alerts, enhancing safety during navigation. The gauge's design incorporates a standard input signal, making it compatible with a variety of rudder position sensors, and the optional interchangeability of the bezel allows for further customization. Included in the package are the gauge, connection cable, bezel, rubber seal, spinlock, and comprehensive installation and safety instructions, enabling straightforward setup and maintenance. Whether for new installations or upgrades, the Veratron ViewLine Rudder Angle Gauge delivers high performance, clarity, and durability at an attractive price point, making it an ideal choice for both recreational and commercial marine applications.

Features:

• 8 pole Tyco/Hirschmann MQS plug for secure connection

• Red LED Via Plus and Min warning lights for quick alerts

• Operating voltage range of 8-32 volts for versatile use

• Standard input signal compatibility with various rudder sensors

• Optional make-point switch connection for added functionality

• Reverse polarity protection ensures safety and durability

• Anti-fog double lens for clear visibility in all conditions

• Front side protection rating of IP67 for water and dust resistance

• Designed for easy installation with a 52 mm diameter

• Includes bezel, connection cable, rubber seal, and installation instructions
