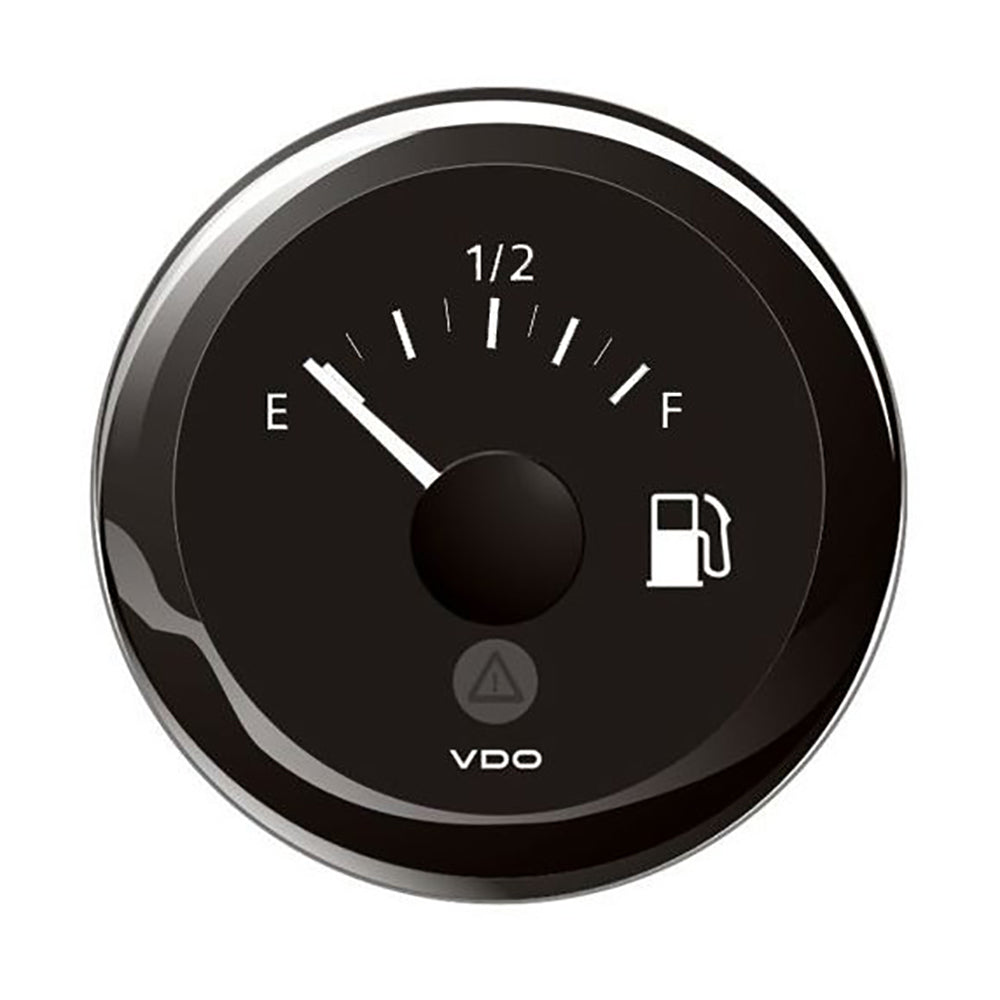

Veratron 52mm ViewLine Tank Level Gauge E/F - Black Dial & Bezel, Part A2C59514091

52MM (2-1/16") ViewLine Tank Level Gauge E/F - 3-180 Ohm - Black Dial Bezel

Veratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.

More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use. ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.

The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color.

Interchangeable bezel option.

Features:

• 8 pole Tyco/Hirschmann MQS plug
• Red LED Via Plus And Min Warning Light
• Operating voltage 832 V
• Input signal: standard values
• Optional make-point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth

In the Box:

• Gauge
• Connection Cable
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold as an Individual

The Veratron 52mm ViewLine Tank Level Gauge offers precise and reliable fuel or tank level measurement for marine and industrial applications. Designed with a modern, modular architecture, this gauge features a black dial and bezel, providing a sleek and professional appearance. Its compatibility with standard 3-180 Ohm signals ensures accurate readings across various systems, making it a versatile choice for engine monitoring.
Constructed with durability in mind, the gauge includes an anti-fog double lens and a front-side protection rating of IP67, allowing it to withstand harsh environmental conditions. The gauge's design incorporates an 8-pole Tyco/Hirschmann MQS plug for secure and straightforward connections, along with reverse polarity protection to ensure safe operation. The built-in red LED warning lights for high and low levels enhance safety and operational awareness, providing immediate visual alerts during critical situations.
This instrument is easy to install with a 52mm diameter and a 50mm depth, suitable for a variety of cockpit configurations. An interchangeable bezel option allows for customization to match existing instrumentation or aesthetic preferences. The gauge is supplied with a connection cable, rubber seal, spinlock, and comprehensive installation and safety instructions, ensuring a straightforward setup process. The device is designed for use in outboard engines and other demanding environments, offering high manufacturing standards and long-term reliability.
For detailed installation guidance, refer to the official owner’s manual available online. This product is sold individually and is an essential component for those seeking a high-performance, customizable tank level gauge with advanced features and robust construction.

Features:

• 8 pole Tyco/Hirschmann MQS plug for secure connections

• Red LED warning lights for high and low level alerts

• Operating voltage range: 8-32 V

• Input signal compatible with standard 3-180 Ohm signals

• Optional make-point switch connection available

• Reverse polarity protection for enhanced safety

• Anti-fog double lens for clear visibility in various conditions

• Front side protection rating of IP67 for environmental resistance

• 52 mm installation diameter suitable for standard dashboards

• Includes bezel, connection cable, rubber seal, and installation instructions
