SKU:82725

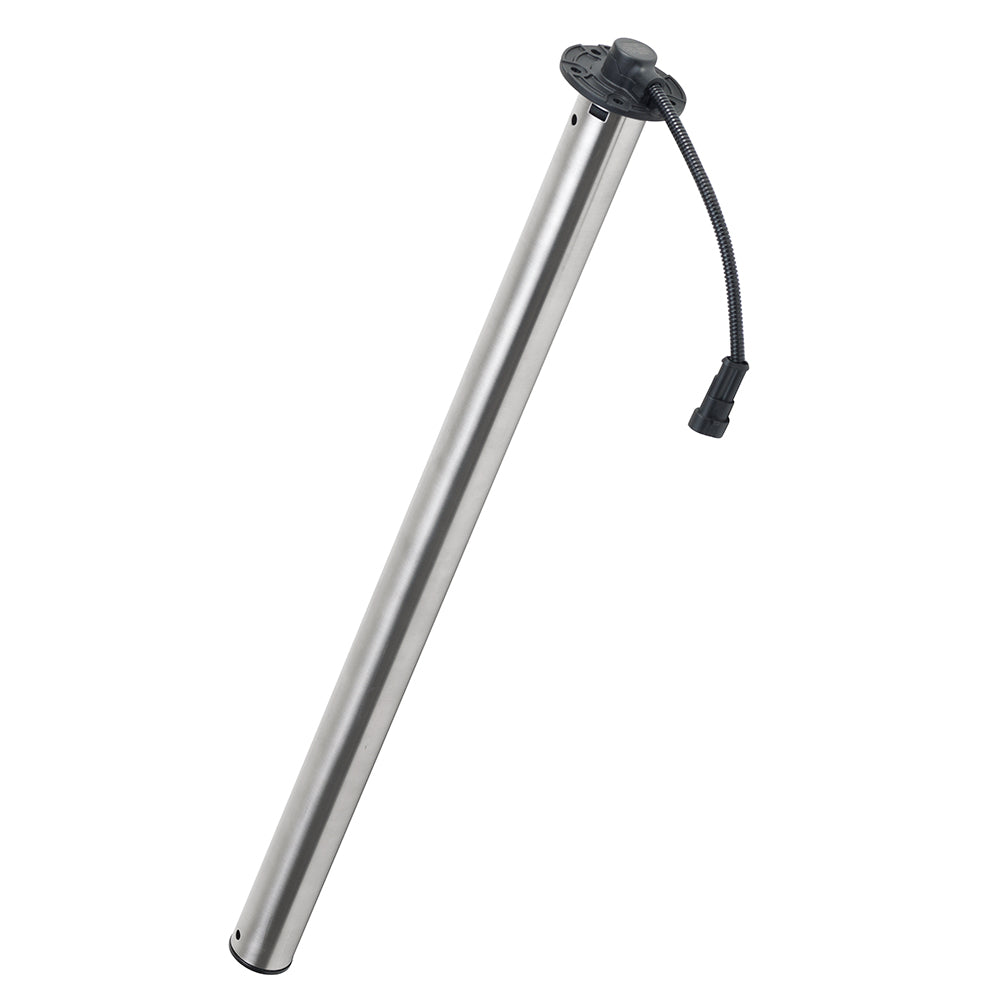

Deep-Pipe Level Sender - 160mm - 240 to 33 OHM
Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.
Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Veratron Deep-Pipe Level Sender, model A2C1746030001, is designed for precise liquid level measurement in fuel tanks, including petroleum, diesel, gasoline, and water applications. This robust sensor features a 160 mm length tubular stainless steel tube with a float inside that accurately indicates liquid levels. Its design incorporates small holes at the top and bottom of the tube, acting as a baffle to prevent fuel sloshing and ensure stable float positioning regardless of sea state or vehicle movement. This stability is critical for reliable level readings in marine, industrial, or mobile fuel systems. The sensor's compatible flange is a 5-hole SAE type with a 54 mm diameter made from durable PA66 GF30 material, ensuring secure installation and long-term performance.
Constructed with a TE Superseal 2-Pole IP67 connector, the device offers waterproof protection suitable for harsh environments. It operates efficiently within a temperature range of -25°C to 65°C (-13°F to 149°F) and requires a voltage supply between 6 and 24 VDC. The sensor’s signal output varies from 240 to 33 ohms, providing a reliable analog signal for level monitoring systems. Additionally, it includes a compensation chamber to improve measurement accuracy across temperature variations. The wiring harness extends 8 inches, simplifying connections during installation.
This level sender is supplied with an installation kit, safety instructions, and detailed installation guidelines, making it suitable for a range of liquid tank monitoring applications. Its IP67 protection rating ensures resistance to dust and water ingress, supporting durability and reliability in demanding environments. Designed for easy integration into existing systems, this sensor provides accurate, stable, and consistent liquid level readings, critical for fuel management and water level monitoring. The product is sold individually, and direct manufacturer support is recommended for any issues or concerns. Ensure the selected length exceeds the tank’s base by at least 4 mm for optimal performance.
Features:
