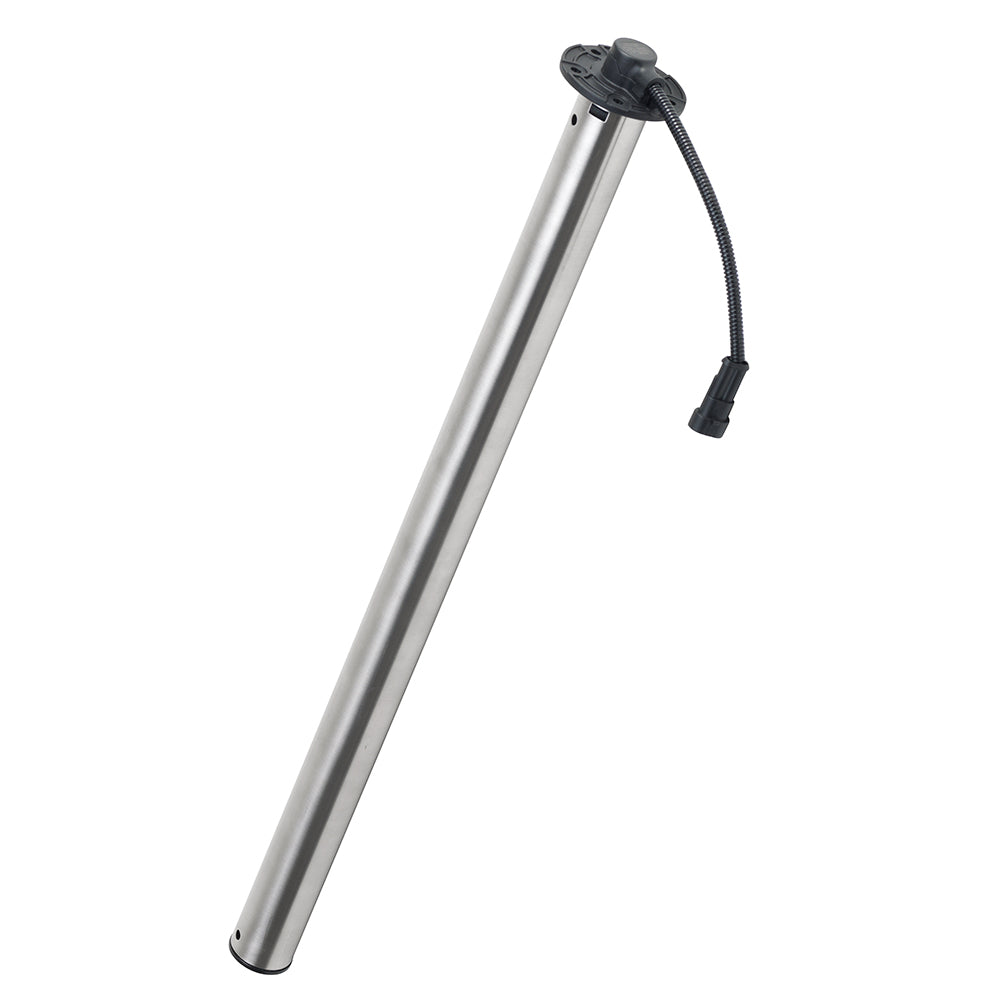

Veratron Deep-Pipe Level Sender - 300mm, 90 to 4 Ohm for Fuel and Water Tanks

Deep-Pipe Level Sender - 300mm - 90 to 4 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel
• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water
• Length: 300 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67
• Operating Temp.: -25C to 65C or -13F to 149F
• Operating Voltage: 6 to 24 VDC
• Compensation chamber
• Flange: 5-Hole SAE Flange 54mm PA66 GF30
• Wiring harness with length of 200 mm
• Signal ranges: 904 OHM
• IP67 protection rating
• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender (Part Number: A2C1750240001) is designed for accurate liquid level measurement in fuel tanks, water reservoirs, and similar applications. This 300mm stainless steel tubular sensor features a float inside a vertical tube, providing reliable readings even during rough sea conditions. Small baffles at the top and bottom of the tube prevent fuel sloshing, ensuring stable measurements regardless of tank movement. Its robust construction and corrosion-resistant materials make it suitable for various liquids, including petroleum, diesel, gasoline, and water. The sensor communicates via an analog signal range from 90 to 4 Ohms, offering precise level detection for marine, industrial, or automotive use. The sensor includes a TE Superseal 2-Pole IP67 connector, a 5-hole SAE flange, and a wiring harness with a 200mm length for easy installation. Operating temperatures span from -25°C to 65°C (-13°F to 149°F), making it versatile for a broad range of environments. The device operates on a voltage supply between 6 and 24 VDC, ensuring compatibility with most existing systems. Packaged with installation and safety instructions, along with an installation kit, the Veratron Deep-Pipe Level Sender provides a straightforward setup process for professionals and experienced technicians. Please ensure that the sensor's length is at least 4mm greater than the tank's base once installed to guarantee proper operation. This product is sold individually and may require direct manufacturer support for warranty or technical issues. Designed to meet IP67 protection standards, it withstands exposure to water and dust, making it ideal for demanding applications and harsh environments.

Features:

• Tubular stainless steel construction for durability and corrosion resistance

• Suitable for measuring levels of fuel (petroleum, diesel, gasoline) and water

• 300mm length to fit a variety of tank sizes

• Includes TE Superseal 2-Pole IP67 connector for reliable electrical connection

• Operates within a temperature range of -25°C to 65°C (-13°F to 149°F)

• Voltage range of 6 to 24 VDC ensures compatibility with most systems

• s a compensation chamber for accurate readings

• 5-Hole SAE flange (54mm) for secure mounting

• Wiring harness length: 200mm for flexible installation

• Analog signal output with a range from 90 to 4 Ohms for precise level detection

• IP67 rated for dust and water protection

• Includes installation kit and safety instructions for straightforward setup
