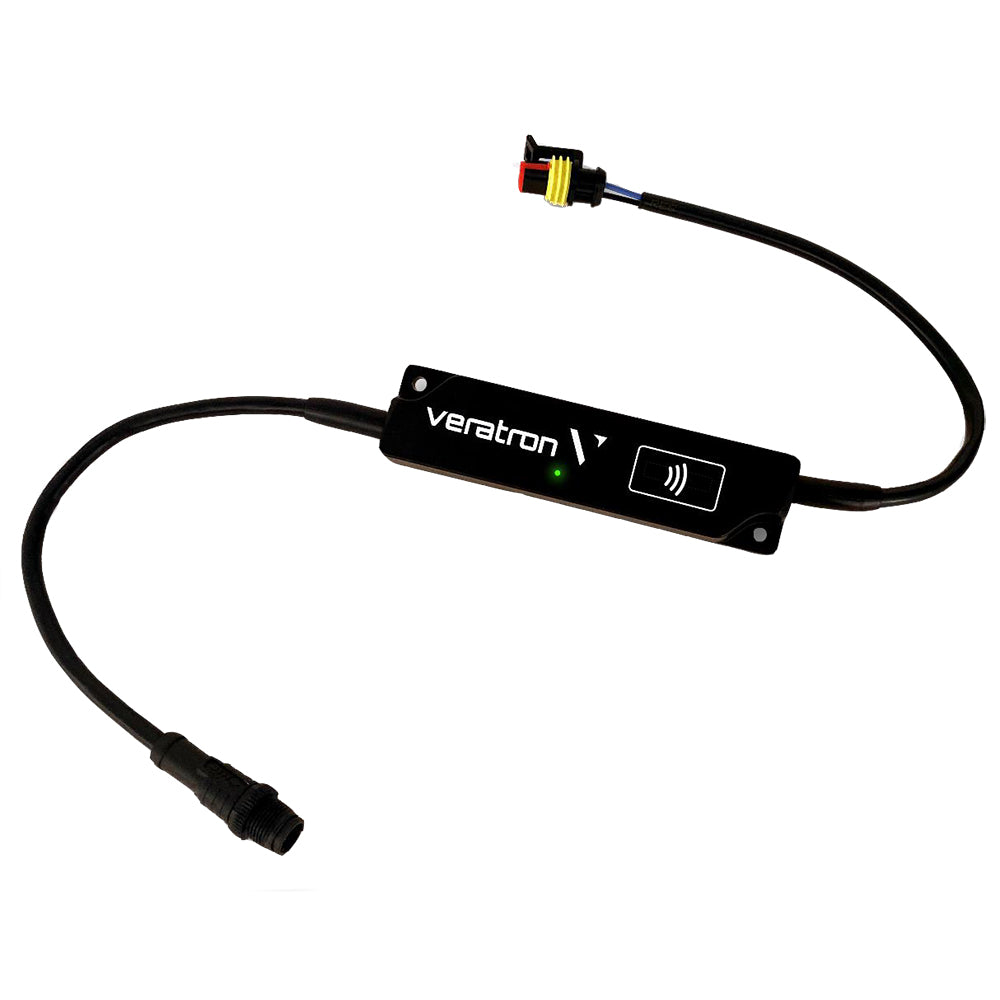

Veratron LinkUp Analog to NMEA 2000 Gateway B00042201

LinkUp Analog to NMEA 2000 Gateway

The resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.

Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements.

Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.

Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download.

Features:

• User-friendly configuration through wireless interface and companion smartphone App
• Sensor Cable length - 25cm
• NMEA 2000 Cable length - 25 cm
• Tap to download parameters
• Mobile App for Android or IOS
• No power required to program
• No certification required
• Bi-directional communication, programming interface or data recovery

Supported Sensors:

• Fuel Level
• Oil/Boost Pressure
• Fresh/Waste Water Level
• Oil/Gear Oil/Coolant Temperature
• Trim Tabs
• Rudder Angle

Technical Specifications:

• Standard M12 NMEA 2000 plug
• LED Notification
• Operating Voltage - 6 - 16.5V
• Nominal Voltage - 12 V (from NMEA 2000 network)
• IPX7 Rated
• Sensor Plug - Superseal Female 2 Pin
• Counterpart Sensor Plug - - Superseal Male 2 Pin

*Sold as an Individual

The Veratron LinkUp Analog to NMEA 2000 Gateway (Part Number: B00042201) offers an efficient solution for converting vessel and engine sensor data into NMEA 2000 format. Designed for easy installation, this resistive-type gateway replaces existing wiring, supplying power to the device and sensors directly from the NMEA 2000 backbone while maintaining full compliance with NMEA 2000 certification standards. Its straightforward setup process is facilitated via a mobile device using the compatible LinkUp Configuration App for Android or iOS, enabling quick and hassle-free configuration without additional power sources or certification hurdles. The device features an integrated passive NFC antenna, allowing wireless parameter configuration—such as sensor type, instance, and warning thresholds—by simply tapping a mobile device against the gateway for instant data transfer. This seamless wireless setup reduces installation complexity and enhances user convenience. The LinkUp Gateway supports a variety of sensors including fuel level, oil and boost pressure, water levels, temperature sensors for oil, gear oil, and coolant, as well as trim tabs and rudder angle sensors, providing comprehensive vessel monitoring capabilities. The device is equipped with a standard M12 NMEA 2000 plug, an LED indicator for status updates, and operates within a voltage range of 6 to 16.5 volts, drawing nominal 12V power from the network. Its IPX7-rated enclosure ensures durability in harsh marine environments, and the sensor connection utilizes Superseal female 2-pin plugs with corresponding male counterparts. The device is sold individually and offers bi-directional communication for data retrieval, programming, or sensor diagnostics. With user-friendly wireless configuration, robust technical specifications, and extensive sensor support, the Veratron LinkUp Gateway is an essential tool for integrating analog sensor data into modern marine network systems.

Features:

• User-friendly configuration through wireless interface and companion smartphone App

• Sensor cable length: 10 inches (25 cm)

• NMEA 2000 cable length: 10 inches (25 cm)

• Tap to download parameters wirelessly

• Compatible with Android and iOS devices

• No external power required for programming

• NMEA 2000 certification compliant

• Supports bi-directional communication for data exchange and diagnostics
