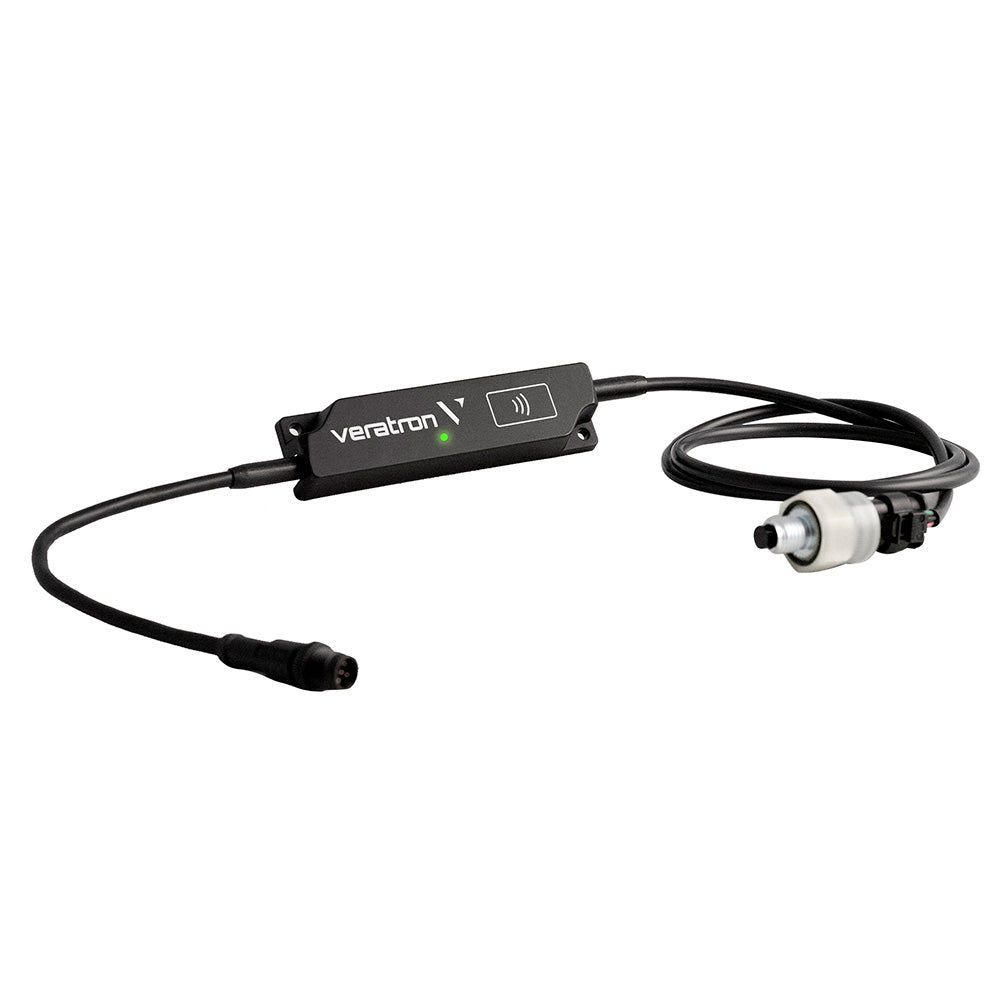

Veratron LinkUp Intelligent Temperature and Pressure Sensor B00070501

LinkUp Intelligent Temperature Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000 standard.

Features:

• Interface to the new electronic 2-in-1 sensor
• Oil Temperature and Pressure in a single sensor
• Rugged and reliable design derived from the automotive field
• ASIC-controlled sensor
• PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

• M12 mounting thread
• IP 69/K protection class
• 5V power feed provided by the LinkUp
• Temperature accuracy 1K in the 135 C 160 C range
• Pressure accuracy 0.2 bar (range 0.5 3 bar), 0.1 bar below and 0.3 bar above
• Temperature range: -40 C + 160 C
• Pressure range: 0.5 to 10.5 bar
• 1M cable length

The Veratron LinkUp B00070501 is a versatile, all-in-one sensor designed to monitor engine oil temperature and pressure simultaneously. Engineered with automotive-grade durability, this sensor provides precise readings essential for optimal engine performance and maintenance. Its robust design ensures reliable operation under harsh conditions, making it suitable for a wide range of vehicles and marine applications. The sensor communicates data via PWM output, translating measurements into the NMEA 2000 standard for seamless integration with onboard systems. This integration allows for real-time monitoring, improving vehicle diagnostics and operational efficiency.

Equipped with an M12 mounting thread, the Veratron LinkUp sensor features an IP 69/K protection class, ensuring resistance against dust, water, and other environmental factors. Powered by a 5V feed supplied through the LinkUp system, it maintains consistent performance without requiring additional power sources. The sensor boasts a temperature accuracy of within 1 Kelvin in the 135°C to 160°C range, and pressure accuracy of 0.2 bar within its 0.5 to 3 bar measurement range, with enhanced precision below and above this span. Its temperature measurement capability extends from -40°C to +160°C, accommodating extreme engine conditions.

The device includes a 1-meter cable for flexible installation, and its rugged construction ensures longevity and dependable operation. The Veratron LinkUp Intelligent Temperature & Pressure Sensor is ideal for applications demanding precise oil condition monitoring, providing valuable data to optimize engine health and prevent potential failures. For detailed installation instructions and technical guidance, refer to the manufacturer's manual available online. Please note, this product may not be returned to the original point of purchase, and any issues should be directed to the manufacturer directly.

Features:

• Interface to the new electronic 2-in-1 sensor

• Oil Temperature and Pressure in a single sensor

• Rugged and reliable design derived from the automotive field

• ASIC-controlled sensor

• PWM (Pulse Width Modulated) output to transmit both pressure and temperature
