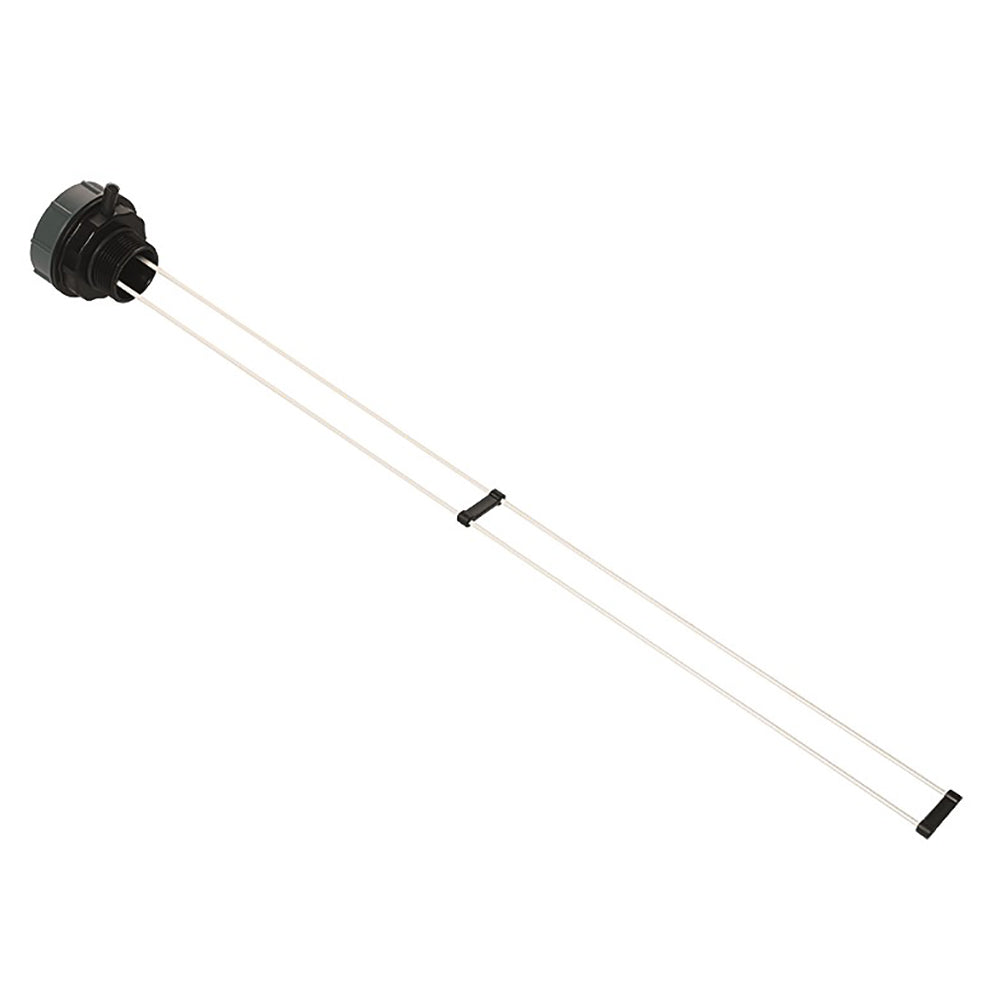

Veratron NMEA 2000 Liquid Level Sensor Part B00041201 for 200-600mm Tank Monitoring

NMEA 2000 Liquid Level Sensor - 200 to 600mm

The NMEA 2000 Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking wateran industry first.

Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm.

The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks.

Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display.

UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device.

Features:

• Includes Flange Installation Kit
• 300mm NMEA Pigtail Connection

Technical Specifications:

• Connector - NMEA 2000 Micro-C 5 pin M12 Male
• IP Protection Class - IPX9K

In the Box:

• Sensor
• Sealing Kit
• Rubber Gasket
• Mounting Bracket
• Mounting Screws and Allen Wrench

*Sold as an Individual

The Veratron NMEA 2000 Liquid Level Sensor Part B00041201 offers precise fluid level measurement for tanks ranging from 8 to 24 inches in depth. Designed for easy integration into NMEA 2000 networks, this sensor provides reliable, real-time data for managing water and waste tanks efficiently. Its advanced capacitive technology ensures accurate, linear readings across the entire measurement range, surpassing traditional reed switch sensors that only provide stepped level indications. This capability allows operators to make well-informed decisions regarding refilling, pumping, or discharging, optimizing operational efficiency and resource management.

The sensor is equipped with a plug-and-play design, featuring an integrated Micro-C M12 5-pin connector that directly connects to the NMEA backbone. It is powered by a standard 12V supply and supports connection to any networked display device. The sensor includes a flange installation kit, rubber gasket, sealing kit, mounting bracket, screws, and an Allen wrench for straightforward setup. Its IPX9K rating ensures durability in harsh environmental conditions, while compliance with UL94, CE, REACH, and RoHS standards guarantees safety and environmental responsibility. The sensor's micro-adjustability allows customization for specific tank sizes, and the capability to select between fresh and waste water modes adds versatility for various applications.

Ideal for marine, industrial, and water treatment systems, the Veratron NMEA 2000 Liquid Level Sensor provides consistent, high-precision measurements. Its compact design and comprehensive mounting hardware make installation straightforward, while the robust construction ensures reliable operation in exposed environments. Whether monitoring multiple tanks or a single large tank, this sensor delivers accurate data to support efficient fluid management and system automation.

Features:

• Includes flange installation kit for easy mounting

• 300mm NMEA pigtail connection for reliable wiring

• Capacitive sensor technology for precise, linear readings

• Selectable for fresh or waste water applications

• Micro-adjustable for customized tank sizing

• Integrated Micro-C M12 5-pin connector for plug-and-play setup

• Durable IPX9K rated enclosure for harsh environments

• Certified to UL94, CE, REACH, and RoHS standards
