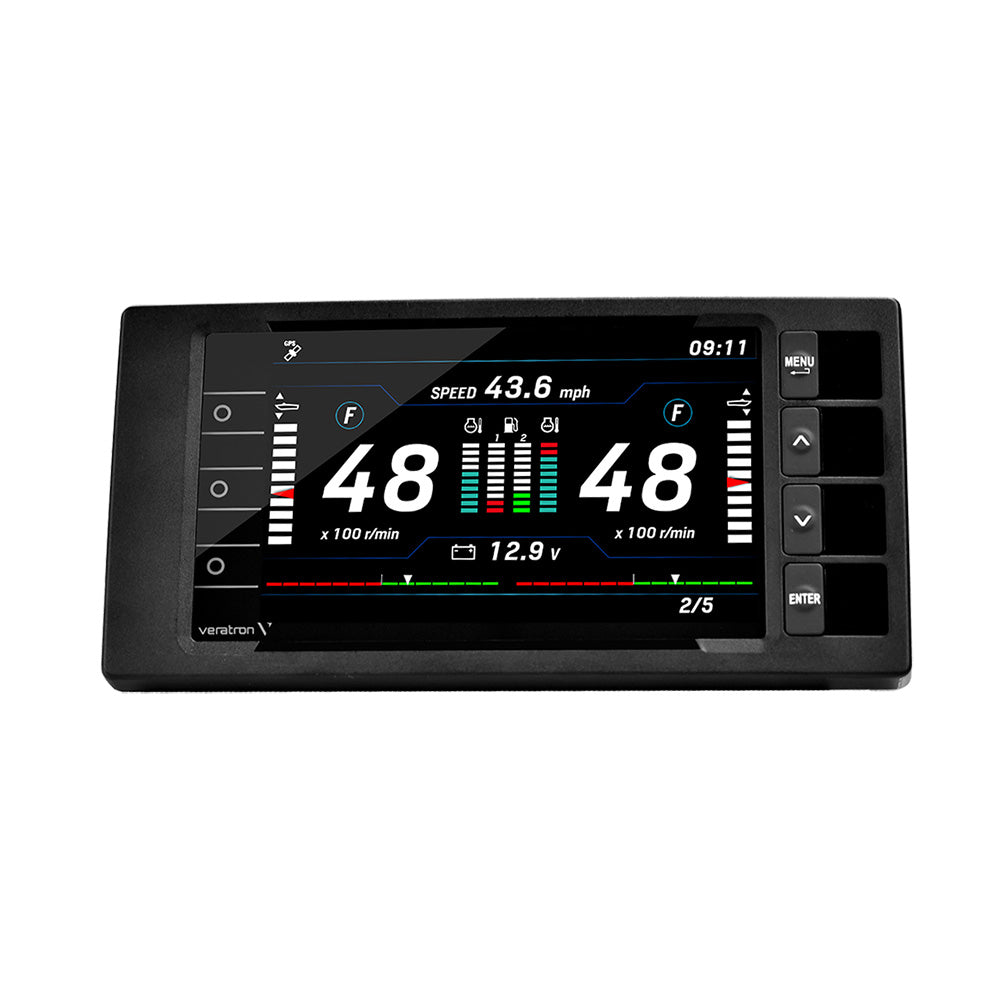

Veratron OceanLink 7-inch NMEA 2000 Certified TFT Gateway - Black

OceanLink 7" NMEA 2000 Certified TFT Gateway - Black

The new OceanLink 7" multifunction TFT Display features a 24-bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 data pages with single, double, treble, or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink gauges, displays, or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.

Features:

• Touch screen function
• Optically bonded mineral glass lens
• Front rear side protection rating IPX7
• 1x NMEA 2000 connector
• 2x J1939
• 6x Analog input
• 2x Frequency input
• 2x 420 mA
• 3x Digital input or 05 V
• 2x Alarm output
• 2x Video input
• 2x EasyLink data output
• 2x Programmable alarm output 500 mA
• Operating temperature range -20C/+70C
• 12/24V

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Veratron OceanLink 7-inch multifunction TFT display offers advanced marine data management with a vibrant 24-bit color screen that displays over 16 million colors for excellent visibility even in direct sunlight. Designed for easy integration, this display connects seamlessly to NMEA 2000 and J1939 CAN Bus systems, providing real-time data from multiple sensors and systems on your vessel. Users can customize up to 40 data pages with various grid layouts, ensuring essential information is accessible at a glance. The display's optically bonded mineral glass lens enhances durability and clarity, making it suitable for harsh marine environments. Its daisy-chain capability allows multiple units to be linked via the VDO Marine Bus or NMEA 2000 backbone, simplifying installation and expanding display options on any yacht or boat.

Features:

• Touch screen functionality for intuitive control

• Optically bonded mineral glass lens for durability and clarity

• IPX7 front and rear protection rating for water resistance

• Single NMEA 2000 connector for easy integration

• Dual J1939 ports for expanded connectivity

• Six analog inputs for sensor connections

• Two frequency inputs for sonar or other devices

• Two 420 mA current loop inputs

• Three digital or 0-5 V analog inputs

• Two alarm outputs for alert notifications

• Two video inputs for camera integration

• Two EasyLink data outputs for external device communication

• Two programmable alarm outputs (500 mA capacity)

• Operational temperature range from -20°C to +70°C (-4°F to +158°F)

• Suitable for 12V or 24V electrical systems
