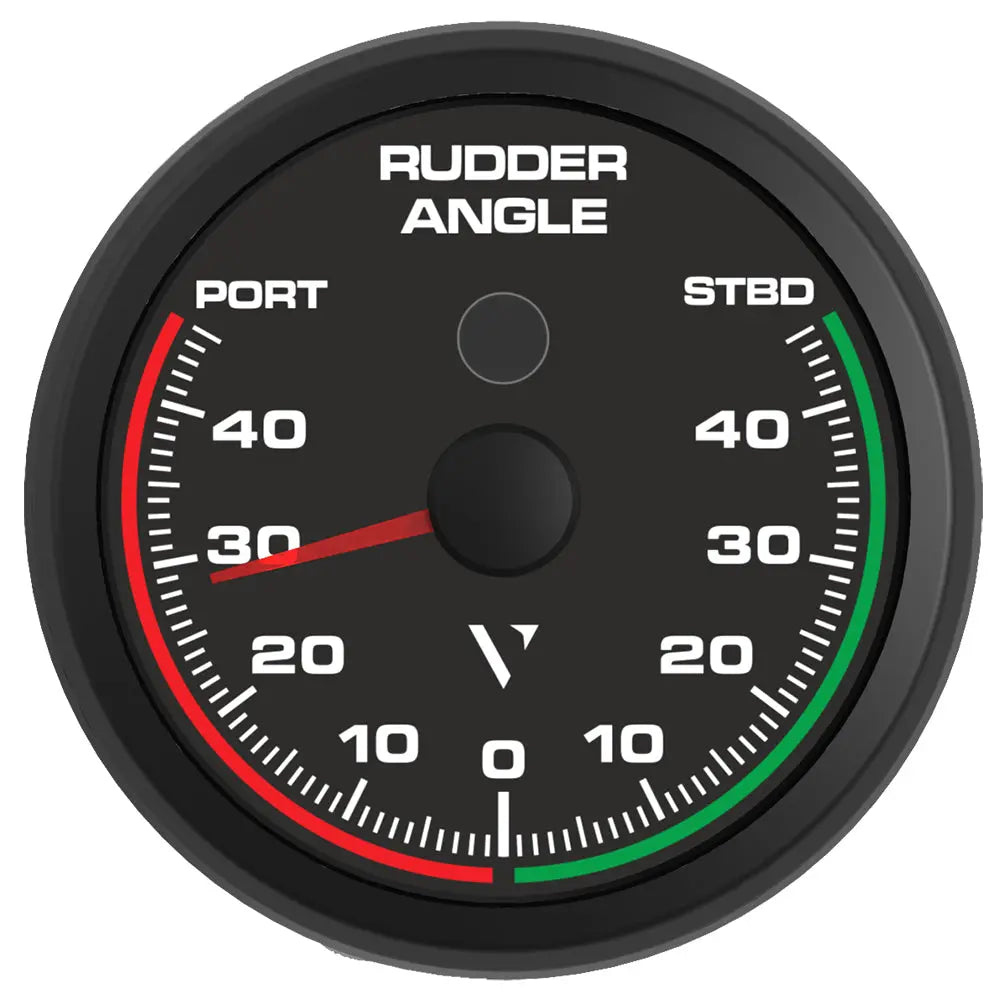

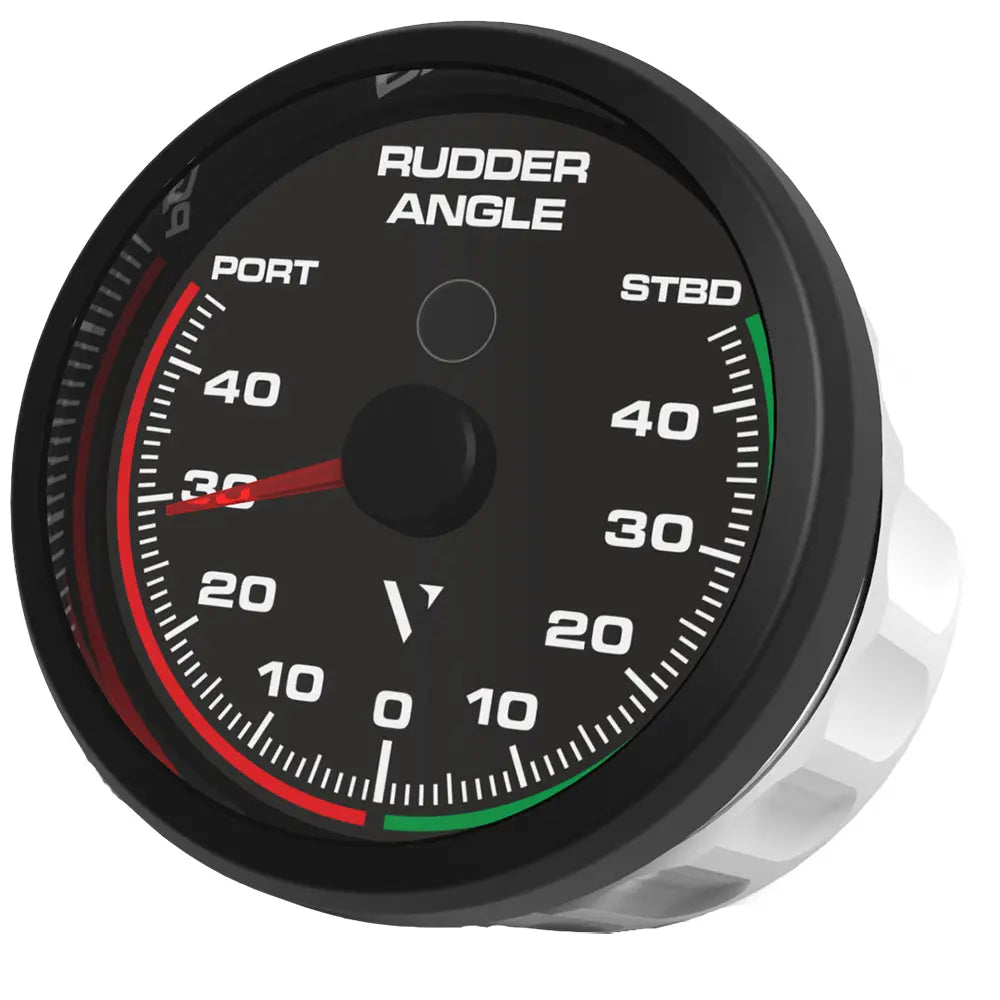

Veratron Professional 85MM Rudder Angle Indicator for NMEA 0183 Systems

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183

Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270 dial scale and Red illumination which makes it well readable and accurate in the indication.

It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30C to +80C and IPX7 protection class.

Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.

The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.

Features:

• Designed for NMEA 0183
• Easy programing and installation

Technical Specifications:

• Operating Voltage - 8 to 32 V
• Protection Class - IP6K7
• Illumination - Red LED
• Dial - Black w/graphics
• Pointer - Red Illuminated
• Lens - Plastic Double Lens (anti-reflective)
• Operating Temp. - -40C to 115C
• Connector - Molex MX150 - 12 pin

In the Box:

• Gauge
• Wire Harness
• Mounting Spinlock
• Safety Instructions

*Sold as an Individual

The Veratron Professional 85MM (3-3/8 inch) Rudder Angle Indicator is engineered for precise and reliable navigation control in commercial marine applications. Designed to fit seamlessly into standard 85mm panel cutouts, this indicator features a large 270-degree dial scale with clear red illumination, ensuring excellent readability even in low-light conditions. Its robust construction, with an extended operating temperature range from -40°C to 115°C and IPX7 waterproof protection, makes it suitable for harsh environments and demanding operational settings. The indicator supports both 12V and 24V power systems, providing flexibility across different vessel configurations.
Equipped with an embedded NMEA 0183 transceiver, the Veratron Rudder Angle Indicator allows for seamless integration with most professional autopilots and multiple gauges connected in series. It supports analog rudder sensors ranging from 3 to 180 Ohms and 0-5V signals, ensuring compatibility with a variety of sensor types. The intuitive infrared pushbutton enables fine calibration adjustments, simplifying setup and ensuring optimal accuracy. This feature-rich indicator enhances navigational safety and operational efficiency, making it a vital component for commercial marine vessels and professional autopilot systems.
The package includes the gauge, wire harness, mounting spinlock, and safety instructions for straightforward installation and operation. Its durable plastic double lens with anti-reflective coating reduces glare, further aiding visibility in diverse lighting conditions. Operating on a voltage range of 8 to 32 volts, it complies with high protection standards to withstand demanding marine environments. The design’s attention to detail, combined with versatile features and robust construction, makes the Veratron Professional Rudder Angle Indicator an essential tool for professional maritime navigation systems.

Features:

• Designed for NMEA 0183 communication for seamless integration with autopilots

• Large 270-degree dial scale with red illumination for enhanced readability

• Supports both 12V and 24V electrical systems for versatile installation

• Extended operating temperature range from -40°C to 115°C for demanding environments

• IPX7 waterproof protection class ensures durability in harsh marine conditions

• Compatible with analog rudder sensors ranging from 3 to 180 Ohms and 0-5V signals

• Embedded infrared pushbutton allows for user-friendly calibration adjustments

• Includes mounting hardware, wire harness, and safety instructions for easy setup
