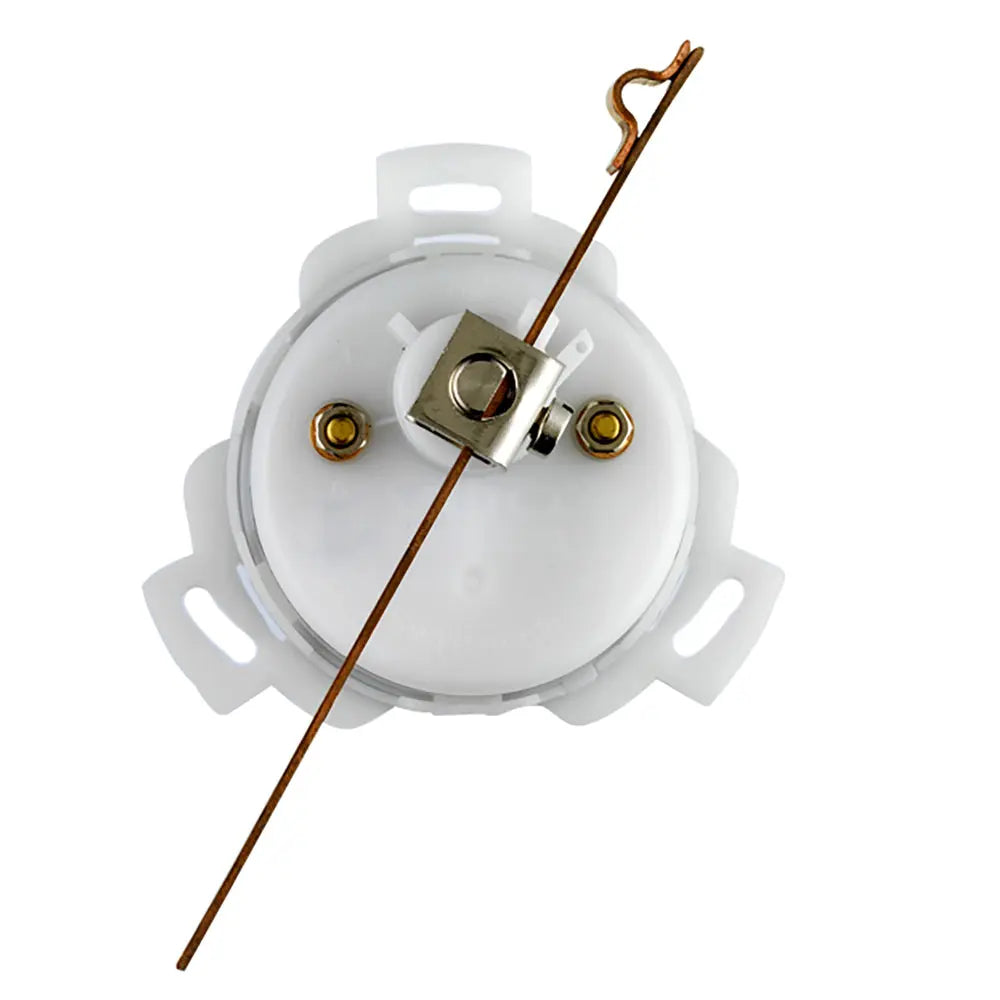

Veratron Rudder Angle Sensor for Single Station - Part A2C1102950001

Rudder Angle Sensor f/ Single Station

Technical Specifications:

• Measurement Range - 45 - 0 - 45
• Signal Analogue - 3 - 180 Ohm
• Resistance value - 3 - 180 Ohm
• Operating Voltage - 6 - 24 Volt DC
• Communication - Analog
• Wire - 2 Wire system
• Sensor Signal - Insulated Return

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Veratron A2C1102950001 Rudder Angle Sensor is designed for precise measurement of steering angles in marine and industrial applications. With a measurement range of 45 degrees to the left and right, this sensor provides accurate feedback essential for navigation and control systems. Its analog signal output, ranging from 3 to 180 Ohms, ensures compatibility with a variety of existing control interfaces. Operating on a voltage supply between 6 and 24 volts DC, the sensor is suitable for diverse electrical setups. The 2-wire system simplifies installation, and the insulated return signal enhances durability and noise immunity in harsh environments. Constructed for reliability, this sensor is sold as an individual unit and is ideal for single station setups requiring precise steering angle detection.

Features:

• Measurement Range: 45 degrees left to right for accurate steering angle detection

• Signal Output: Analog with resistance between 3 and 180 Ohms for versatile compatibility

• Operating Voltage: 6 to 24 Volt DC for flexible power options

• Wiring: 2-wire system simplifies installation and maintenance

• Signal Type: Insulated return signal enhances durability in challenging environments
