SKU:98687

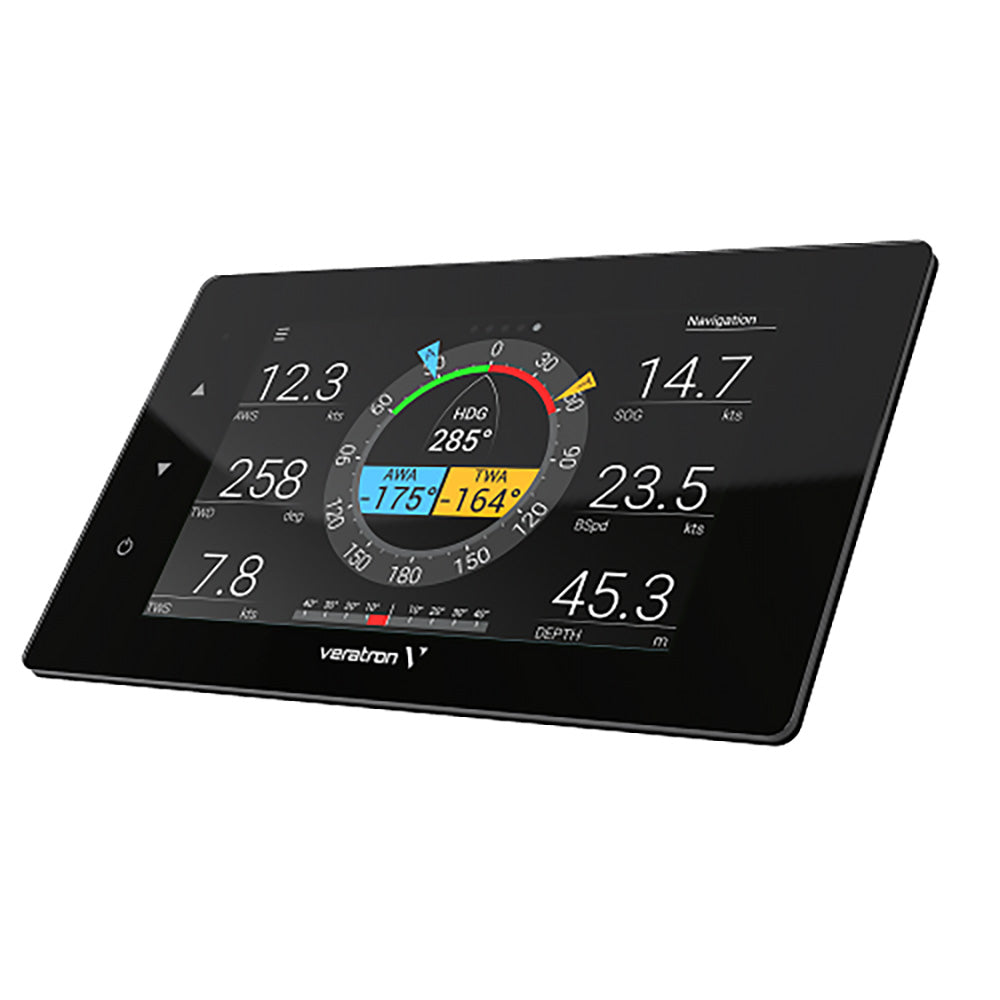

VMH 70 7" Sunlight Readable IPS TFT Touchscreen Display
The best-in-class VMH 70 display is designed to manage large amounts of complex data, and thanks to its real-time operating system it ensures full control of vital engine information immediately after power up.
Easily configured to display information from up to four engines when connected to NMEA2000 or two engines via J1939 or analog inputs simultaneously, it has a large possible setting. This allows users to group similar items such as single or dual engines, battery performance, fuel, water, waste, tank level, rudder and trim, onboard systems, navigation, and weather if desired.
The device has an integrated light sensor that adjusts for easy reading without eye strain, no matter how bright or dark the conditions and two camera inputs allow one to control the engine compartment during navigation and keep an eye on the main deck while maneuvering.
The embedded NMEA 2000 gateway brings all the sensor readings and alarms to your external multi-functional display, saving the cost of an additional converter.
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Veratron VMH 70 is a high-performance 7-inch sunlight-readable IPS TFT touchscreen display designed for marine and industrial applications. Its advanced display technology ensures clear visibility even in direct sunlight, making it ideal for demanding environments. The device features a slim panel installation profile with a mineral glass front lens, providing durability and a sleek appearance. Built to operate reliably in high-temperature environments, it boasts an IPX7 protection rating, making it suitable for exposure to water and harsh weather conditions. The aluminum housing adds strength and corrosion resistance, ensuring long-term durability.
Equipped with a real-time operating system, the VMH 70 offers immediate control and display of vital engine and system data. It is fully configurable to monitor up to four engines via NMEA2000 or two engines through J1939 or analog inputs, allowing users to customize the interface for specific vessel or equipment needs. The device supports grouping by similar items such as engine parameters, battery status, fuel levels, water tanks, waste tanks, rudder and trim positions, onboard systems, navigation, and weather information. An integrated light sensor automatically adjusts screen brightness for optimal readability in varying lighting conditions, reducing eye strain. Two camera inputs enable users to monitor engine compartments or main decks during navigation, providing added safety and convenience. The built-in NMEA 2000 gateway consolidates sensor readings and alarms, eliminating the need for additional converters and simplifying system integration.
Installation is straightforward with front panel mounting options, and the display can be customized with user-defined startup screens and GUI configurations. The device supports multiple communication ports, including dual SAE J1939 CAN ports and various connector types for sensor, video, and data connections. The VMH 70 complies with CE, UKCA, Reach, and RoHS standards, ensuring safety and environmental compliance. Included in the package are the display unit, sun cover, mounting kit, engine data cables, and an EasyLink extension cable, providing everything needed for installation and operation. Overall, the Veratron VMH 70 combines durability, advanced features, and flexible configuration options to deliver reliable monitoring and control for demanding marine and industrial applications.
Features:
