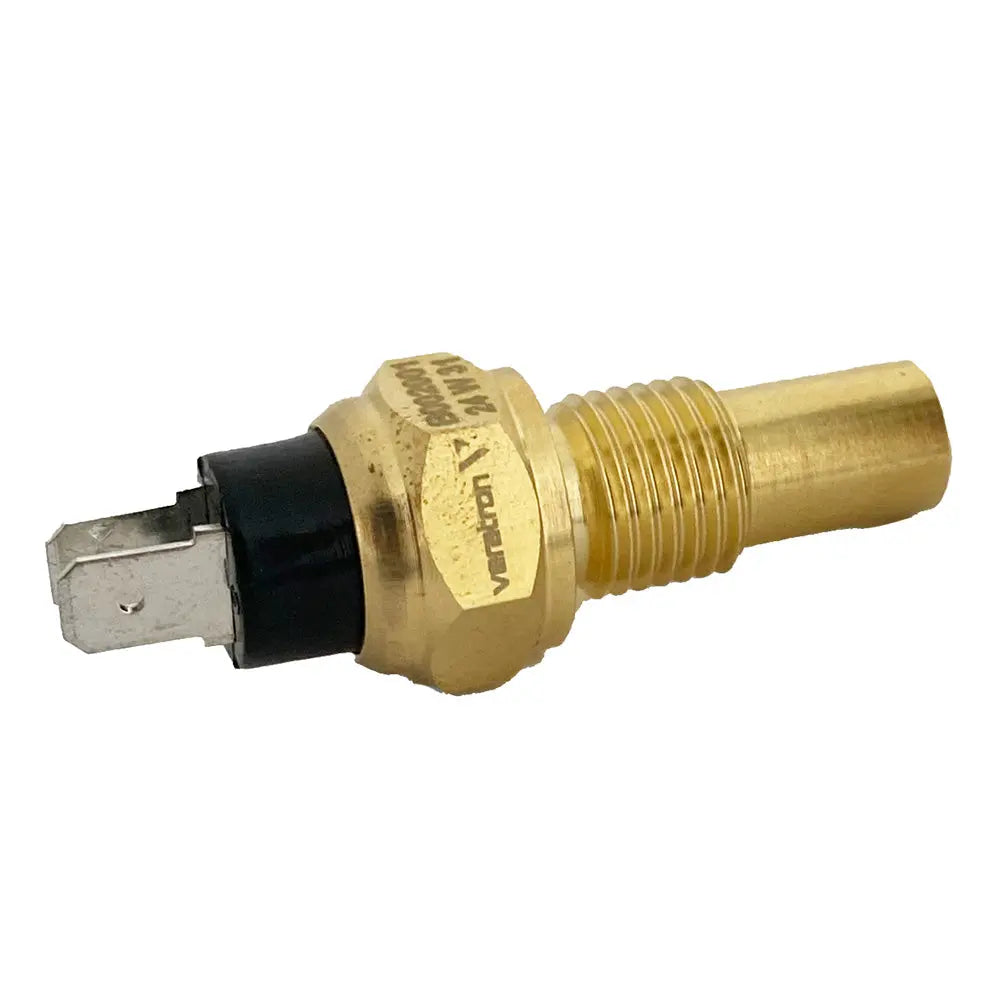

Veratron Water Temperature Sensor with M14x1.5 Thread and 120°C Range

Water Temperature Sensor - M14x1.5 Thread - 120C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature
• Length - 28.5mm (1-1/8)
• Thread - M14x1.5
• Calibration - 120C
• Measurement Range - 120C
• Output Signals - Resistive
• IP67
• Insulated ground pin

The Veratron B002001 Water Temperature Sensor is designed for reliable measurement of oil and coolant temperatures in various applications. Crafted with a durable brass housing, this resistive sensor features a precise M14x1.5 threaded connection that ensures a secure fit in your system. With a temperature measurement range up to 120°C (248°F), it provides accurate temperature readings critical for engine management and fluid monitoring. The sensor includes an insulated ground pin and an output signal interface through metal plate connectors, facilitating easy integration into existing systems. Its compact length of approximately 1-1/8 inch makes it suitable for tight spaces, while its IP67 rating guarantees resistance to dust and water ingress, ensuring durability in challenging environments. The sensor's resistive output enables straightforward connection to compatible monitoring equipment, making it an ideal choice for automotive, industrial, and maintenance applications. Trust the Veratron B002001 sensor for consistent, accurate temperature sensing, enhancing system performance and safety. Whether used for oil temperature or coolant temperature monitoring, this sensor delivers dependable operation and longevity in demanding conditions.

Features:

• Function - Oil temperature, coolant temperature

• Length - Approximately 1-1/8 inch

• Thread - M14x1.5

• Calibration - 120°C

• Measurement Range - Up to 120°C

• Output Signals - Resistive

• IP67 - Dust and waterproof rating

• Insulated ground pin for electrical safety
