Vesper Cortex-H1 Handset Tethered

Vesper Cortex-H1: Exceptional Handset Tethered Communication Solution

Vesper Cortex-H1 Handset Tethered

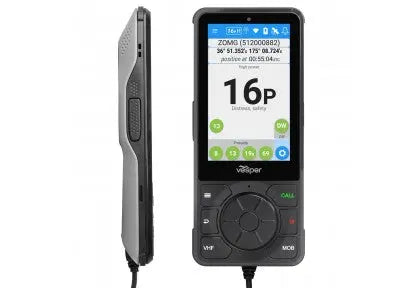

Vesper Cortex H1 Tethered Handset

Model: 010-02816-00

• Powered handset for connection to Cortex M1 or Cortex V1
• 4-inch multi-touch display with gorilla glass for maximum durability
• Single hand operation with unique click wheel and dedicated buttons
• Wet and gloves capable touchscreen
• Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
• 85 dBA of crystal-clear audio
• Combined AIS and VHF display with voiced alerts
• Touch a vessel onscreen for direct calling (DSC)
• Add 10 handsets to Cortex M1

The Cortex H1 Tethered Handset is the voice and calling interface used for VHF and DSC calls. The handset's touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation, ease of operation and single-handed use. The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves.

The handset provides a screen to set up and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, manage and monitor alarms and configure the remote vessel monitoring.

Upgrade your Cortex M1 SOTDMA smartAIS or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

The Cortex H1 comes bundled in the Cortex V1 VHF. Add additional H1 handsets for additional stations. Includes an H1 Bulkhead Bonnector and an H1 Cradle.

Specifications

Size164.8 mm x 71.8 mm x 21.4 mm (6 1/2 in x 2 13/16 in x 7/8 in)

Power Supply
12V, 1A max, 200mA nominal, 12 -24V compatible

Battery
Lithium Polymer, 2 hour full charge, >12 hours nominal operation

Weight
235g

Environmental
Waterproof (IPX8)

Operating temperature
-25 degC to +55 degC (-13 degF to 131 degF)

Audio
3W Class D amplifier, THD < 5% @ 85dBA

Display

Screen
LCD TFT Si, 640 x 800, 24bit Colour

Touch
Capacitive, optically bonded to LCD. Glove and salt water operable.

Backlight
600 cd/m2. Ambient light sensor for auto dimming

What's in the Box:

• H1 Tethered Handset
• Non Powered H1 Cradle
• Bulkhead Connector

Advanced Design for Reliable Communication

The Vesper Cortex-H1 handset tethered is engineered to provide outstanding communication clarity and durability. Designed for marine and harsh environments, this device ensures uninterrupted and secure voice transmissions. Its tethered design prevents loss and damage, making it a trusted choice for operators who demand rugged reliability. The handset's ergonomic build offers comfort during prolonged use while supporting clear audio delivery. Users benefit from the comprehensive integration of Vesper's advanced communication technology, making the Cortex-H1 the ideal handset for critical communication needs.

Superior Audio Quality and Noise Resistance

The Vesper Cortex-H1 handset tethered incorporates cutting-edge noise reduction and audio enhancement features. This delivers clear and crisp voice communication, even in noisy surroundings such as busy ship bridges or industrial settings. The handset minimizes background noise and echoes, ensuring that messages are heard clearly. Its high-quality microphone and speaker components work in harmony to provide consistent performance. Users gain confidence through reliable communication capabilities that enhance operational safety and efficiency wherever clear voice exchange is essential.

Durability and User-Friendly Operation

Constructed with robust materials, the Vesper Cortex-H1 handset tethered withstands the challenges of tough working conditions. Its sealed design protects against water, dust, and impacts, meeting stringent marine-grade standards. The intuitive interface and straightforward button layout allow easy and quick operation even when wearing gloves. The tethered connection reduces the risk of accidental disconnection or loss, improving operational continuity. With minimal maintenance and exceptional build quality, this handset delivers long-term value for professionals requiring resilience and simplicity in their communication tools.
