Vesper Cortex-H1P Handset Wireless

Explore the Features and Benefits of the Vesper Cortex-H1P

Vesper Cortex-H1P Handset Wireless

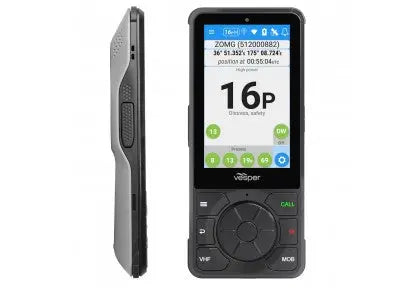

Vesper Cortex H1P Wireless Handset

Model: 010-02816-10

• Rechargeable, portable battery powered handset for connection to Cortex M1
• 4-inch multi-touch display with gorilla glass for maximum durability
• Single hand operation with unique click wheel and dedicated buttons
• Wet and gloves capable touchscreen
• Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
• 85 dBA of crystal-clear audio
• Combined AIS and VHF display with voiced alerts
• Touch a vessel onscreen for direct calling (DSC)
• Add 10 handsets to Cortex M1
• 12V or 24V DC

The Cortex H1 Tethered Handset is the voice and calling interface used for VHF and DSC calls. The handset's touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation, ease of operation and single-handed use. The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves.

The handset provides a screen to set up and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, manage and monitor alarms and configure the remote vessel monitoring.

Upgrade your Cortex M1 SOTDMA smartAIS or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

The Cortex H1 comes bundled in the Cortex V1 VHF. Add additional H1 handsets for additional stations. Includes an H1 Bulkhead Bonnector and an H1 Cradle.

Specifications

Size164.8 mm x 71.8 mm x 21.4 mm (6 1/2 in x 2 13/16 in x 7/8 in)

Power Supply
12V, 1A max, 200mA nominal, 12 -24V compatible

Battery
Lithium Polymer, 2 hour full charge, >12 hours nominal operation

Weight
235g

Environmental
Waterproof (IPX8)

Operating temperature
-25 degC to +55 degC (-13 degF to 131 degF)

Audio
3W Class D amplifier, THD < 5% @ 85dBA

Display

Screen
LCD TFT Si, 640 x 800, 24bit Colour

Touch
Capacitive, optically bonded to LCD. Glove and salt water operable.

Backlight
600 cd/m2. Ambient light sensor for auto dimming

What's in the Box:

• H1P Wireless Handset
• Powered H1P Powered Cradle
• Non Powered H1 Cradle

Innovative Wireless Technology

The Vesper Cortex-H1P stands out with its cutting-edge wireless technology that ensures reliable and uninterrupted connectivity. Designed for users who require a stable communication tool, this handset delivers crystal-clear audio quality and strong signal reception. Whether you are in a busy office or on the move, the Vesper Cortex-H1P provides a seamless wireless experience, minimizing dropouts and interference. This innovative approach boosts productivity and offers a more convenient hands-free communication solution for both professional and personal use.

Ergonomic Design and User Comfort

The Vesper Cortex-H1P is crafted with user comfort in mind. Its ergonomic design allows for extended use without discomfort, making it ideal for long conversations or extended workdays. Lightweight materials and a natural grip ensure that users can handle the wireless handset effortlessly. Additionally, the device’s intuitive button layout simplifies operation, even in fast-paced environments. This combination of comfort and usability makes the Vesper Cortex-H1P a preferred choice for professionals seeking both efficiency and ease.

Advanced Features for Enhanced Performance

Equipped with advanced features like noise cancellation, long battery life, and quick pairing capabilities, the Vesper Cortex-H1P maximizes performance in various settings. The noise cancellation technology filters background sounds, allowing for clear and focused communication. Its extended battery life supports continuous use across busy work shifts without frequent recharging. Furthermore, quick pairing ensures the handset connects smoothly with multiple devices, offering versatile compatibility. These features combine to create a flexible and dependable wireless communication tool.
