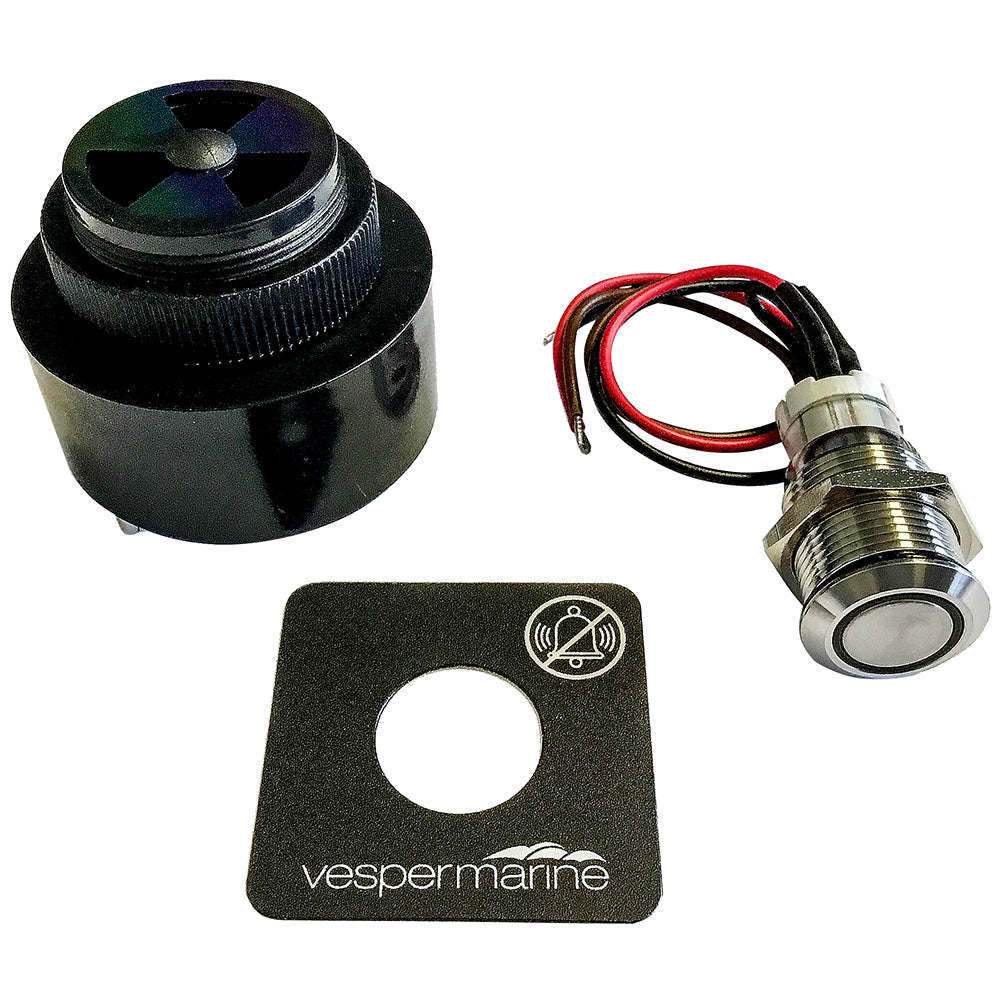

Vesper External smartAIS Alarm & Mute Switch Kit for WatchMate XB-8000

External smartAIS Alarm Mute Switch Kit for WatchMate XB-8000

The WatchMate XB-8000 smartAIS has the ability to trigger an external alarm that can be mounted anywhere onboard. If the XB-8000 detects a risk situation due to a potential collision, anchor drag, or a MOB activation, it alerts you with an alarm on your mobile device. It simultaneously sounds the external alarm which operates even if your mobile device is turned off.

The alarm is designed to be easily mounted and can be connected directly to the XB-8000 without the need for external relays or other components. By simply rotating the sound output vane you can control the volume level.

It is easily configured to make a steady continuous or pulsing tone like a truck backup alarm. It is heavy-duty and very robust. Its terminals are via screw down or you can use 6.35mm (1/4") quick disconnects.

This alarm can be used with both 12 and 24 VDC systems. It also has reverse polarity protection to prevent damage due to incorrect wiring.

Mute Switch for XB-8000

The Switch is used to mute the Alarm. Its 304 stainless steel body is durable and waterproof making it ideal for mounting both internally or externally. It is designed to be used with 12 and 24 VDC systems.

Alarm Specifications:

• Rated voltage: 12-32 VDC (reverse polarity protected)
• Maximum voltage: 32 VDC
• Maximum current: 35 mA
• Frequency: 2.9 kHz (+/- 0.5)
• Configuration: Makes either a steady or pulsed sound (choose S or P terminal)
• Sound pressure: 85 steady, 80 pulsed dBA/30cm
• Volume adjustment: Twist front vane holes to closed to reduce volume
• Pulse rate: 0.8 - 1.2 pulse/sec
• Size: Diameter: 43.5mm (1 3/4"), Height: 34.5mm (1 3/8")
• Mounting hole: 29mm (1 3/16")

Switch Specifications:

• Voltage Range:10-32 VDC
• LED Color: Blue
• Button Body: 304 Stainless Steel
• Contact Materia: lSilver Alloy
• Cable:150mm (6) Tinned
• Panel Thickness: 1 10mm
• Operating Temp: -20C +55C
• Insulation Resistance: 1000M
• Contact Resistance: 50m
• Degree of Protection: IP65

The Vesper External smartAIS Alarm & Mute Switch Kit is designed to enhance safety on your vessel by providing a reliable external alarm system compatible with the WatchMate XB-8000. The alarm triggers in response to potential collision risks, anchor drag, or MOB events detected by the XB-8000, alerting you with a loud, adjustable sound that operates independently of your mobile device. Its robust design allows for easy mounting anywhere onboard and connects directly to the XB-8000 without additional relays or components, simplifying installation and ensuring dependable operation in demanding marine environments. The alarm features a twistable vane for volume control and can produce steady or pulsed tones, similar to truck backup alarms, with a sound pressure of up to 85 dBA at 30cm for clear audibility. Built from heavy-duty materials, the alarm is rated for both 12V and 24V DC systems and includes reverse polarity protection, safeguarding against wiring errors and ensuring longevity. The kit also includes a durable, waterproof mute switch with a stainless steel body, suitable for internal or external mounting, with a blue LED indicator for easy status monitoring. The switch operates within 10-32 VDC, providing seamless control over the alarm system, and features a corrosion-resistant silver alloy contact for reliable performance. Its IP65 rating ensures resistance to water and dust, making it suitable for harsh marine conditions. Whether used for emergency alerts or system management, this kit offers a comprehensive safety solution that enhances vessel awareness and operational security, making it ideal for professional and recreational mariners seeking dependable external alarm and mute controls.

Features:

• External alarm compatible with WatchMate XB-8000 for collision, MOB, and anchor drag alerts

• Easy direct connection to XB-8000 without external relays or components

• Adjustable volume with twist vane for precise sound level control

• Selectable steady or pulsed alarm tone for versatile alerting

• Heavy-duty construction with waterproof, stainless steel mute switch for durability

• Operates on 12V and 24V DC systems with reverse polarity protection

• Mute switch features a blue LED indicator and corrosion-resistant contacts

• Alarm rated for high sound pressure output, ensuring clear onboard audibility

• Compact design with mounting hole included for flexible installation

• Designed for harsh marine environments with IP65 protection rating
