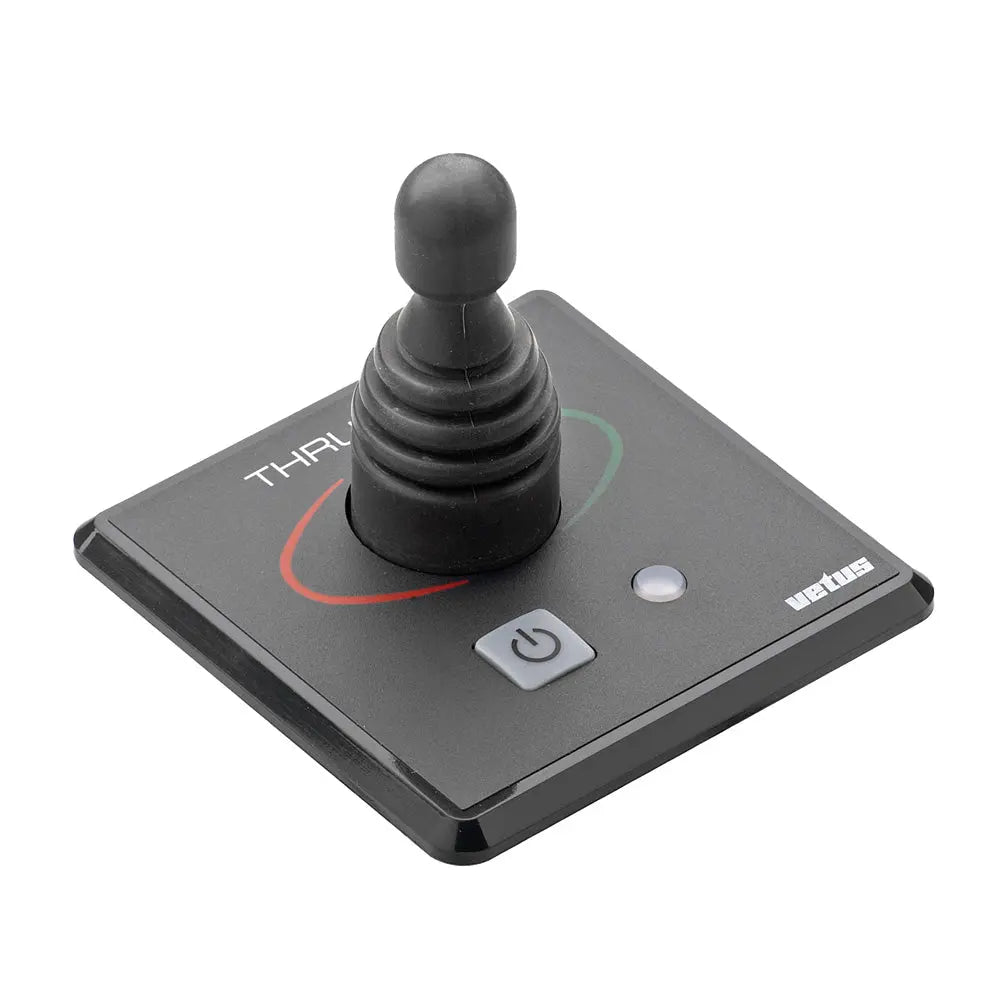

VETUS Bow Thruster Control Panel with Joystick and Time Lapse - Part BPJE2

Bow Thruster Panel w/Joystick & Time Lapse

Single joystick panel for operating a Vetus bow or stern thruster. Supplied with quick connectors for BP29 series wiring harnesses. Capable of daisy chaining additional controls for multiple stations.

Features:

• Protected against accidental or unauthorized operation

• Panel power on indicator

• Control circuit overload protection

• Built-in time lapse device when reversing the direction of rotation

• Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation

• In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds.

• Watertight to IP 66

• Dimensions: 85mm x 85mm

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The VETUS BPJE2 Bow Thruster Panel with Joystick is a reliable control solution designed for seamless operation of your vessel's bow or stern thruster. This compact and robust panel features a single joystick interface, allowing you to easily maneuver your boat with precision. It is supplied with quick connectors compatible with BP29 series wiring harnesses, simplifying installation and setup. Capable of daisy chaining additional controls, this panel supports multiple station operation, providing flexibility for larger vessels or complex control configurations.

Constructed to withstand harsh marine environments, the panel is rated IP66 waterproof, ensuring durability and long-term performance. It includes essential safety features such as protection against accidental or unauthorized operation, a control circuit overload protection, and an automatic shutdown after 30 minutes of inactivity, which is configurable during installation. An integrated time lapse device activates when reversing the thruster's direction, preventing abrupt or unintended movements. Additionally, if the thruster runs continuously for more than two minutes, a warning LED and buzzer alert the operator, and the system automatically switches off to prevent damage. The panel's dimensions are compact, measuring approximately 3.35 inches square, making it suitable for installation in confined spaces.

This control panel is designed for ease of use, safety, and durability, providing boat owners and operators with a dependable interface for thruster management. Please note that product support and returns are handled directly through the manufacturer. For any issues or concerns, contact VETUS directly to ensure proper assistance and warranty coverage.

Features:

• Protected against accidental or unauthorized operation

• Panel power on indicator

• Control circuit overload protection

• Built-in time lapse device for reversing thruster direction

• Automatic shutdown after 30 minutes of inactivity (user configurable)

• Warning LED and buzzer for continuous operation over 2 minutes with automatic reset

• Watertight rating of IP66 for durability in marine environments

• Compact dimensions suitable for limited spaces
