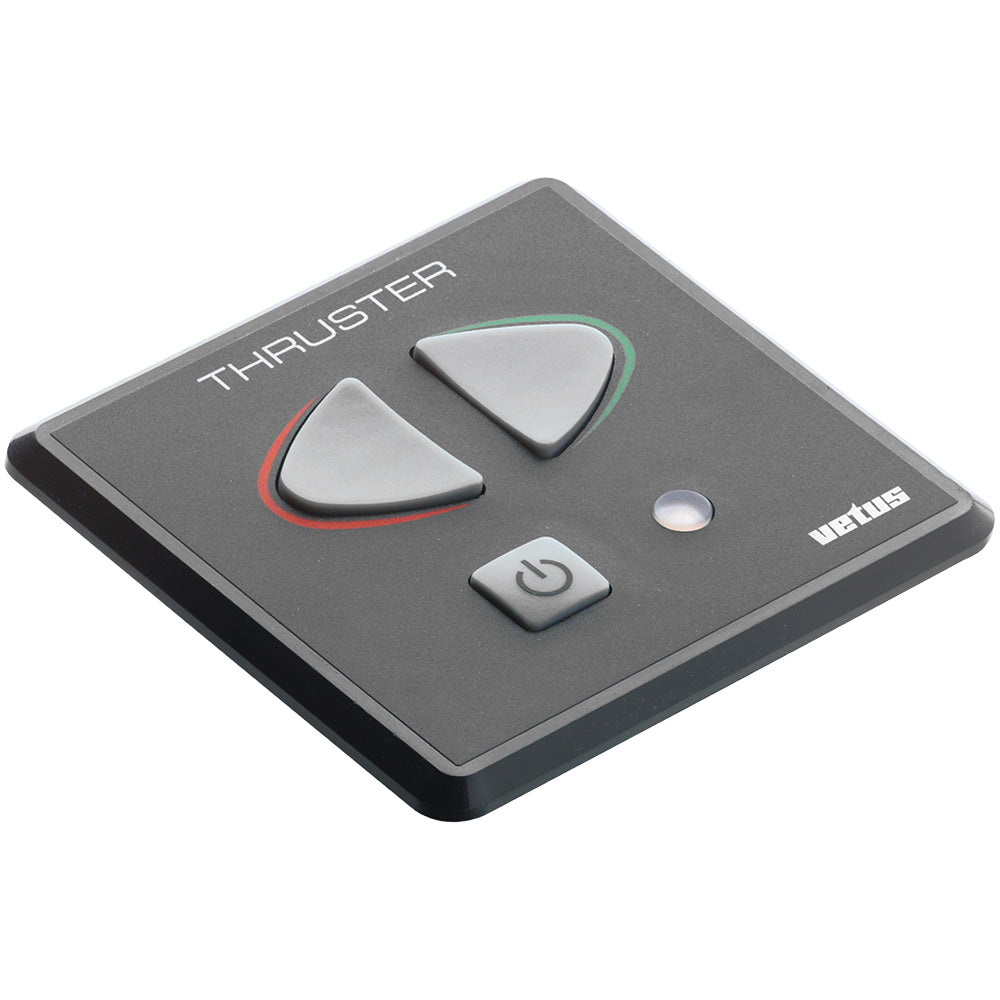

VETUS BPSE2 Bow and Stern Thruster Control Panel with Time Lapse and Button Interface

Bow Thruster Panel w/Buttons & Time Lapse

Single touch panel for operating a Vetus bow or stern thruster. Supplied with quick connectors for BP29 series wiring harnesses. Capable of daisy chaining additional controls for multiple stations.

Features:

• Protected against accidental or unauthorized operation

• Panel power on indicator

• Control circuit overload protection

• Built-in time lapse device when reversing the direction of rotation

• Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation

• In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds.

• Watertight to IP 66

• Dimensions: 85mm x 85mm

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The VETUS BPSE2 Bow and Stern Thruster Control Panel offers a reliable and user-friendly solution for operating marine thrusters. Designed with a single-touch interface, this panel simplifies control of your Vetus bow or stern thruster, providing quick and easy access to essential functions. It is supplied with quick connectors compatible with BP29 series wiring harnesses, facilitating straightforward installation and maintenance. The panel’s modular design allows for daisy chaining multiple control stations, making it ideal for boats requiring multiple operator points. Constructed to withstand harsh marine environments, it is rated IP66 waterproof, ensuring durability against water ingress and environmental elements. The compact dimensions make it suitable for installation in tight spaces on your vessel, and the panel includes integrated features such as a power-on indicator, control circuit overload protection, and a built-in time lapse device to prevent accidental reverse operation. Automatic shut-off after 30 minutes of inactivity can be customized during installation, enhancing safety and energy efficiency. Additionally, the system provides warning alerts, including LEDs and buzzers, if the thruster runs continuously for more than two minutes, switching off automatically to prevent damage. The panel resets after five seconds, ensuring continuous operation without the need for manual intervention. With its robust construction, advanced safety features, and ease of use, the VETUS BPSE2 is an essential addition for marine thruster control, providing peace of mind and reliable performance during your boating adventures.

Features:

• Protected against accidental or unauthorized operation

• Panel power on indicator

• Control circuit overload protection

• Built-in time lapse device for reversing direction

• Automatic switch off after 30 minutes of inactivity (user adjustable)

• Warning LED and buzzer if thruster runs over 2 minutes, with automatic reset

• Watertight to IP66 standards

• Compact size for versatile installation
