SKU:115098

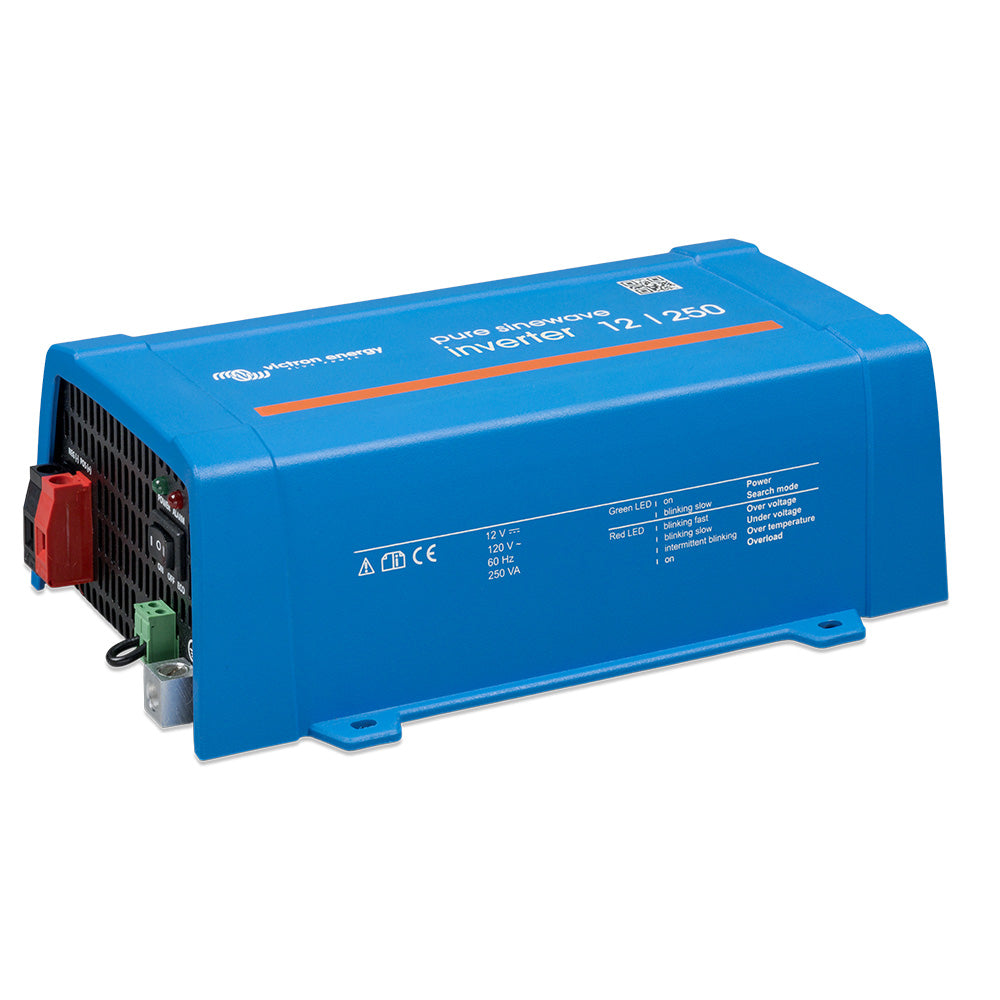

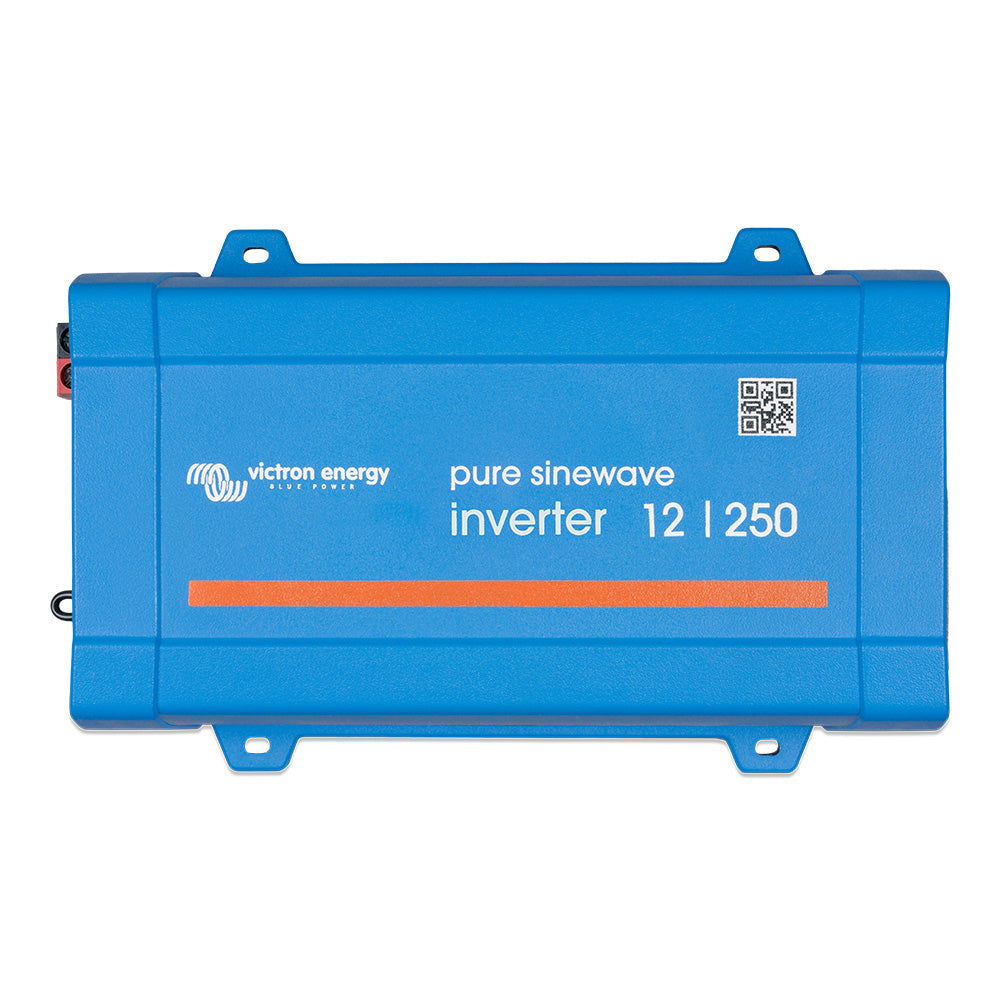

Inverter 12/250 120V VE.Direct Nema 5-15R
The VE.Direct port can be connected to:
Fully configurable:
Monitoring -In- and output voltage, % load and alarms
Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.
High start-up power - Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.
ECO mode - When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.
Remote on/off- A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.
To transfer the load to another AC source: the automatic transfer switch - For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
DC connection with screw terminals - No special tools needed for installation
Output Sockets - Nema 5-15R
Please contact your dealer for any returns, repairs or support issues related to this product.The Victron Energy 12/250 inverter offers reliable power conversion for various off-grid and backup applications. Featuring a fully configurable design, it allows you to set low battery voltage alarms, cut-off thresholds, and load-dependent dynamic cut-off levels to optimize performance and safety. Its wide output voltage range from 110V to 245V and selectable frequency of 50Hz or 60Hz make it adaptable to different regional power standards. The inverter includes monitoring capabilities for input and output voltage, load percentage, and alarm notifications, providing comprehensive oversight of your power system.
Constructed with proven reliability, the full bridge and toroidal transformer topology ensures durability and protection against short circuits, overheating, overloads, and high ambient temperatures. Its high start-up power enables it to efficiently power loads such as LED and halogen lamps, electric tools, and power converters. The ECO mode feature reduces energy consumption by switching to standby when the load falls below 15W, with adjustable intervals to ensure minimal disruption during low power periods. When in standby, the inverter can automatically restart if the load exceeds a preset threshold, maintaining continuous operation.
The inverter supports remote ON/OFF control via a two-pole connector or by connecting between the battery positive terminal and the left contact of the same connector. It also integrates seamlessly with an automatic transfer switch, such as the Victron Filax, which switches between AC sources in less than 20 milliseconds, ensuring your electronic devices experience no power interruptions. The DC connection utilizes screw terminals, allowing easy installation without special tools, and the output is provided through standard Nema 5-15R sockets for convenient use. The VE.Direct port enables connectivity to computers, smartphones, tablets, and MacBooks using appropriate interfaces like USB or Bluetooth Smart dongles, facilitating remote monitoring and configuration.
Designed for versatility and ease of use, the Victron Energy 12/250 inverter is ideal for applications requiring dependable power conversion, remote system management, and integration with additional power management components. For detailed installation and operational guidance, consult the owner’s manual available online. This inverter is suitable for a range of environments, offering robust performance and flexible features to meet your power needs.
Features:
