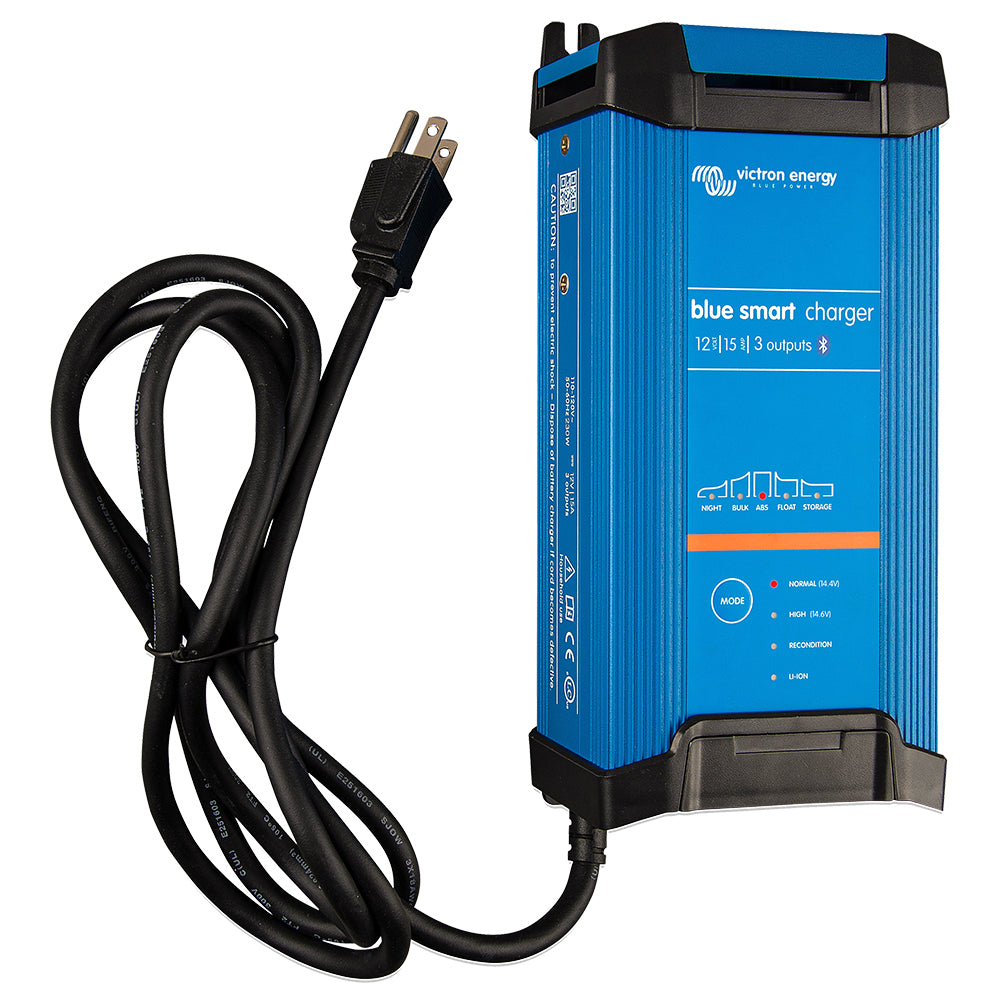

Victron Energy Blue Smart IP22 12V DC 15A 3 Bank Charger with Bluetooth – Dry Mount

Blue Smart IP22 12VDC 15A 3 Bank 120V Charger - Dry Mount

The Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Bluetooth Smart

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test - bulk absorption - recondition float storage

The Blue Smart Charger features a microprocessor-controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion batteries

Li-ion batteries are charged with a simple bulk absorption float algorithm.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating

Output current will reduce as the temperature increases up to 50C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication

Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.

The Victron Energy Blue Smart IP22 Charger is a professional-grade battery charger designed for versatile use across various applications, including workshops, classic cars, motorbikes, boats, and camper-vans. This charger combines advanced features with user-friendly operation to ensure optimal battery maintenance and longevity. Its compact dry-mount design allows for easy installation in a range of environments, making it a reliable choice for both professional and personal use.
The Blue Smart IP22 Charger boasts built-in Bluetooth technology, enabling wireless monitoring of voltage and current, as well as remote adjustment of settings and firmware updates via a compatible app. This connectivity simplifies maintenance and provides real-time insights into the charging process. With an impressive efficiency of up to 94%, the charger produces significantly less heat compared to industry standards, reducing energy waste and extending the lifespan of the device. When the battery reaches full charge, power consumption drops to just 0.5 watts, making it highly energy-efficient.
Equipped with an adaptive 6-stage charging algorithm—testing, bulk, absorption, recondition, float, and storage—the charger intelligently manages the charging cycle based on the battery's condition and usage. Its microprocessor-controlled system ensures the right charge profile for different battery types, including lead-acid and lithium-ion batteries. In storage mode, the charger minimizes maintenance by reducing float voltage when the battery remains unused for more than 24 hours, preventing issues like stratification and sulfation which can lead to early battery failure. The device can also recover batteries that have been fully discharged, including lithium-ion batteries, by initiating a specialized charging process even at zero volts.
The Blue Smart IP22 offers flexible operation modes, including NIGHT and LOW settings, which reduce output current to a maximum of 50% for quiet, low-noise operation—ideal for overnight or sensitive environments. The charger is protected against overheating, with automatic current reduction if temperatures exceed 50°C, ensuring safe and reliable operation under demanding conditions. Its status is clearly indicated through eleven LEDs, displaying the current mode and stage of the charging process, with configurable settings for voltage levels and reconditioning modes. For detailed usage instructions, refer to the included manual available online.
Designed for durability and efficiency, the Victron Blue Smart IP22 Charger is a comprehensive solution for maintaining optimal battery health across a wide range of applications, delivering reliable performance with minimal user intervention.

Features:

• Bluetooth smart technology for wireless monitoring and updates

• High efficiency up to 94%, reducing heat and energy waste

• Adaptive 6-stage charge algorithm ensuring optimal battery care

• Storage mode minimizes maintenance during periods of inactivity

• Compatible with lead-acid and lithium-ion batteries

• Full recovery function for deeply discharged batteries

• Night and low power modes for quiet operation

• Overheat protection with automatic current reduction

• Eleven LED indicators for comprehensive status updates

• Compact dry-mount design for easy installation
