SKU:99770

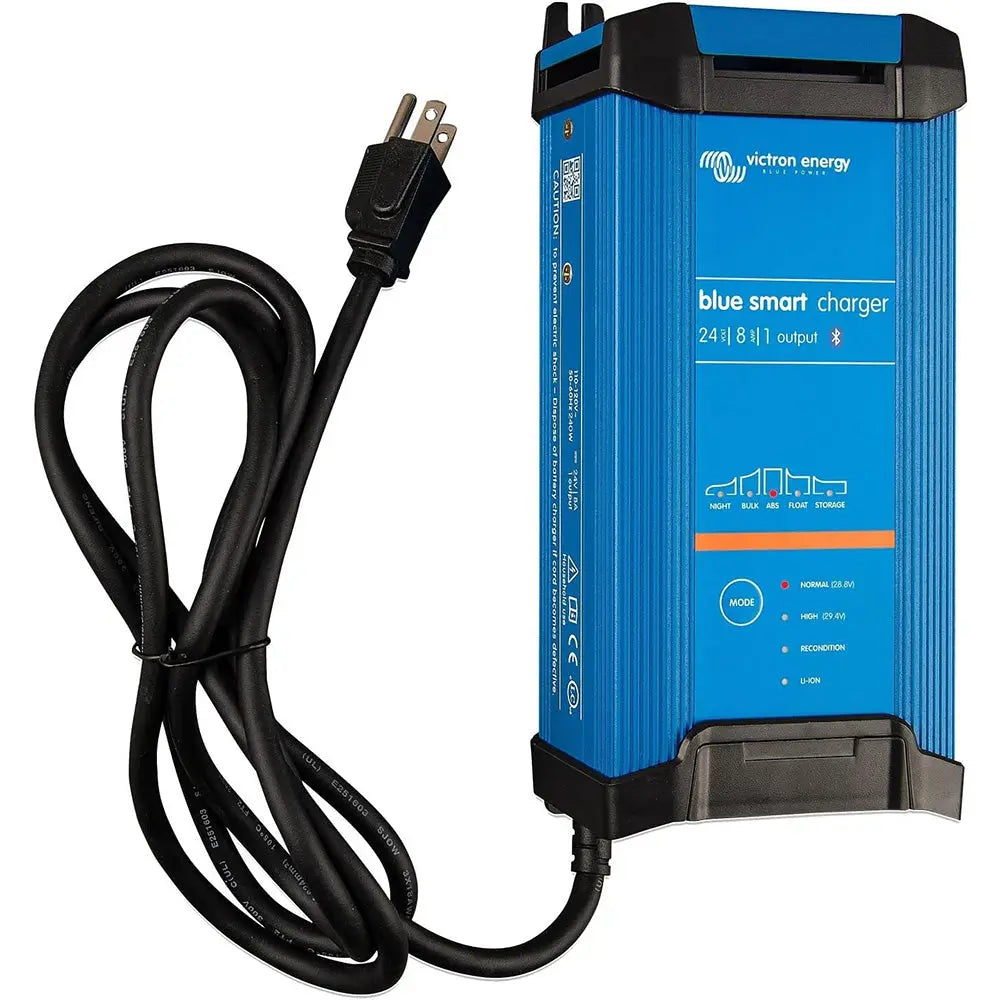

Blue Smart IP22 24VDC 8A 1 Bank 120V Charger - Dry Mount
The Blue Smart IP22 Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats, and camper-vans.
Bluetooth Smart
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, change settings, and update the charger when new features become available.
High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 watts, some five to ten times better than the industry standard.
Adaptive 6-stage charge algorithm: test - bulk absorption - recondition float storage
The Blue Smart Charger features a microprocessor-controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulkabsorptionfloat algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with an internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as the temperature increases up to 50C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
Specifications:
Enclosure Specifications:
Standards:
The Victron Energy Blue Smart IP22 Charger model BPC240845102 is a professional-grade battery charger designed for versatile use across workshop environments and motor vehicles such as cars, motorcycles, boats, and camper-vans. Featuring built-in Bluetooth connectivity, this charger allows you to wirelessly monitor voltage and current, modify settings, and update firmware via your mobile device, providing convenience and real-time control. Its high efficiency of up to 94% minimizes heat generation, ensuring reliable operation and lower energy consumption, with power usage dropping to just 0.5 watts once the battery is fully charged. The adaptive 6-stage charging process—comprising test, bulk, absorption, recondition, float, and storage—ensures optimal battery health by dynamically adjusting to the battery's condition and usage patterns. This microprocessor-controlled management helps prolong battery life and performance, making it suitable for a wide range of lead-acid and lithium-ion batteries. The storage mode reduces gassing and corrosion when the battery remains idle for over 24 hours by lowering float voltage, with a weekly equalization cycle to prevent electrolyte stratification and sulfation, common causes of early battery failure. Additionally, the charger supports lithium-ion batteries with a simplified bulk-absorption-float charging algorithm and features a recovery function capable of recharging batteries that have been fully discharged to zero volts, including Li-ion types with internal disconnects. The Night and Low modes reduce output current to 50%, with Night mode automatically ending after 8 hours and Low mode ending manually, allowing for quiet operation during night-time or low-current requirements. Overheating protection adjusts the output current if temperatures exceed 50°C, preventing damage without failure. Eleven LEDs provide clear status indicators for each stage of the charging process, and the charger can be configured with different voltage settings, including high and reconditioning modes, via the MODE button. Built with a durable aluminum enclosure in blue RAL 5012, it features screw terminals for battery connection, a 1.5-meter power cable with a compatible plug, and an IP22 protection rating suitable for dry mounting. Certified to meet safety and emission standards such as EN 60335-1, EN 55014-1, and others, the Victron Blue Smart IP22 Charger combines advanced technology with robust construction for reliable, efficient, and flexible battery management in various applications.
Features:
