SKU:99771

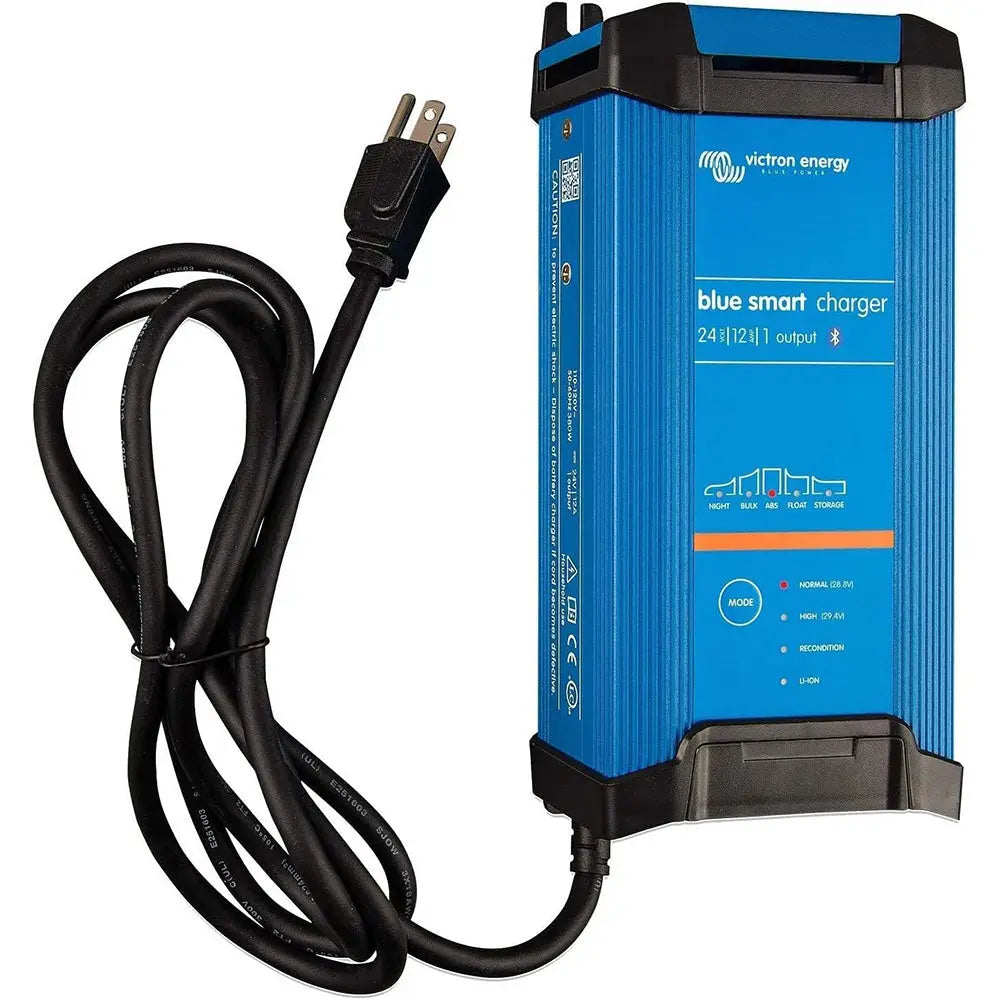

Blue Smart IP22 24VDC 12A 1 Bank 120V Charger - Dry Mount
The Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Bluetooth Smart
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Adaptive 6-stage charge algorithm: test - bulk absorption - recondition float storage
The Blue Smart Charger features a microprocessor-controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulk absorption float algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as the temperature increases up to 50C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
Specifications:
Enclosure Specifications:
Standards:
Please contact your dealer for any returns, repairs or support issues related to this product.
Please contact your dealer for any returns, repairs or support issues related to this product.The Victron Energy Blue Smart IP22 Charger is a professional-grade battery charger designed for versatile use across workshops, vehicles, and marine applications. Featuring built-in Bluetooth connectivity, this charger allows users to wirelessly monitor voltage and current, adjust settings, and update firmware via a smartphone or compatible device. Its sleek aluminum enclosure in RAL 5012 blue ensures durable protection while maintaining a professional appearance. With a high efficiency of up to 94%, the Blue Smart IP22 generates significantly less heat than industry standards, resulting in improved longevity and energy savings. Once fully charged, power consumption drops to just 0.5 watts, making it an energy-efficient solution for long-term maintenance and storage of batteries.
Equipped with a microprocessor-controlled adaptive six-stage charging algorithm—comprising test, bulk, absorption, recondition, float, and storage modes—this charger intelligently manages the charging process based on the battery's condition and usage patterns. The storage mode reduces float voltage to minimize gassing and corrosion during periods of non-use, helping to prevent electrolyte stratification and sulfation, which are common causes of early battery failure. It also supports charging Li-ion batteries with an optimized bulk, absorption, and float algorithm, ensuring safe and effective charging for modern batteries.
In addition to its advanced charging features, the Victron Blue Smart IP22 includes functions for fully discharged battery recovery, automatically initiating charging even if the battery voltage drops to zero. The NIGHT and LOW modes allow for reduced output current—up to 50%—and noiseless operation, with the NIGHT mode automatically ending after 8 hours, providing flexibility for nighttime or low-noise environments. The charger is protected against overheating, with output current automatically reducing if temperatures exceed 50°C, ensuring safe operation under various conditions. Its status is clearly indicated through eleven LEDs, displaying information such as test, bulk, absorption, recondition, float, storage, and ready modes, with options to set normal, high, recondition, or Li-ion charging profiles.
Constructed from durable aluminum in a compact 9.3 x 4.3 x 2.6-inch form factor, the Blue Smart IP22 is rated IP22 for protection against dust and dripping water. It features screw terminals for secure battery connection and includes a 1.5-meter power cable with a choice of CEE 7/7, BS 1363, or AS/NZS 3112 plugs. Suitable for operating temperatures from -20°C to +50°C and capable of handling humidity levels up to 98%, this charger meets rigorous safety and electromagnetic compatibility standards, including EN 60335-1, EN 55014, and others. Whether maintaining a car, motorbike, boat, or camper van battery, the Victron Blue Smart IP22 offers reliable, efficient, and intelligent charging for a wide range of applications.
Features:
