SKU:99773

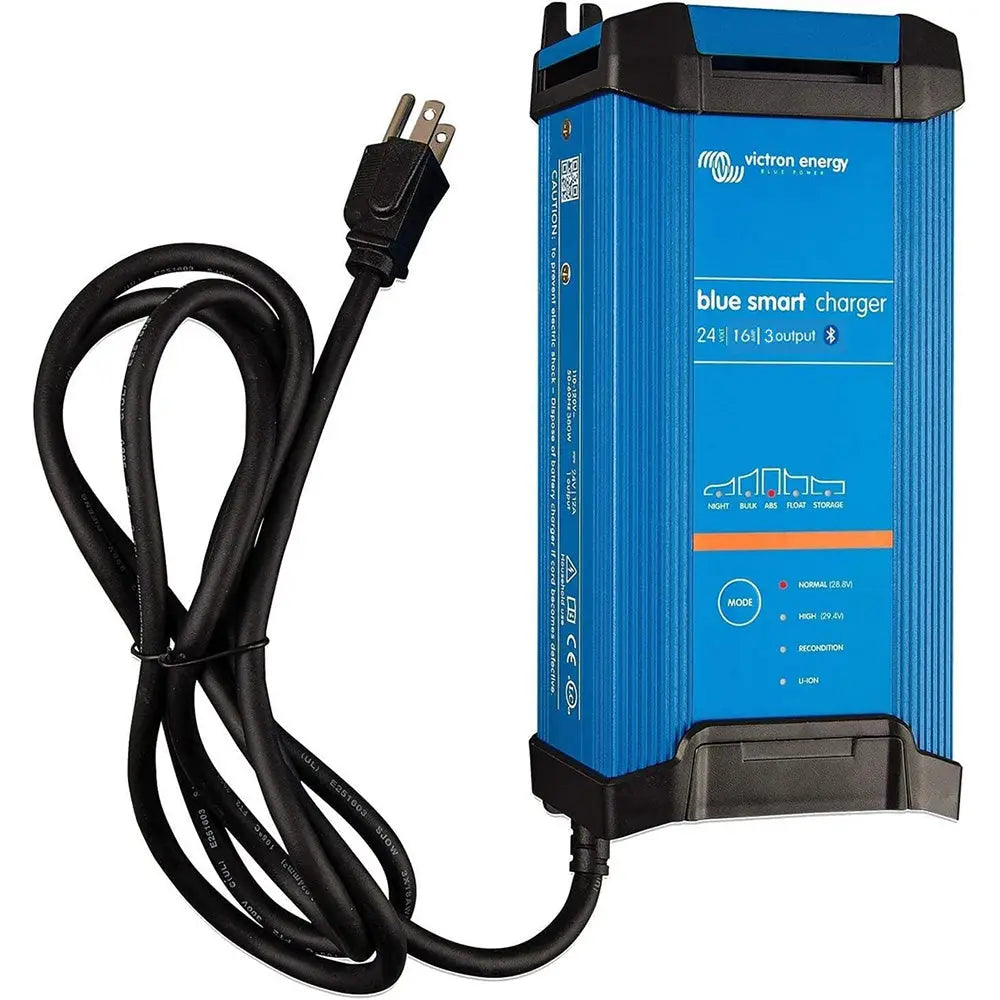

Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry Mount
The Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Bluetooth Smart
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Adaptive 6-stage charge algorithm: test - bulk absorption - recondition float storage
The Blue Smart Charger features a microprocessor-controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulk absorption float algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as the temperature increases up to 50C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
Specifications:
Enclosure Specifications:
Standards:
Please contact your dealer for any returns, repairs or support issues related to this product.
Please contact your dealer for any returns, repairs or support issues related to this product.The Victron Energy Blue Smart IP22 Charger, model BPC241648102, is a professional-grade 24VDC battery charger designed for versatile applications including workshop equipment, classic cars, motorcycles, boats, and camper-vans. Featuring a built-in Bluetooth module, this charger allows wireless monitoring of voltage and current, easy setting adjustments, and firmware updates via your smartphone or tablet, providing a convenient and efficient user experience. Its robust design and intelligent features make it suitable for both professional and personal use, ensuring reliable power management in a variety of environments.
The Blue Smart IP22 Charger boasts an impressive efficiency of up to 94%, significantly reducing heat generation compared to industry standards. When the battery reaches full charge, power consumption drops to as low as 0.5 Watts, which is five to ten times more energy-efficient than typical chargers. Its adaptive 6-stage charge algorithm, which includes stages like test, bulk, absorption, recondition, float, and storage, ensures optimal battery health by automatically adjusting the charging process based on the battery's condition and usage patterns.
For batteries that are not used regularly, the charger offers a storage mode that reduces float voltage to minimize gassing and corrosion, thereby extending battery life and preventing electrolyte stratification. It also supports charging of Li-ion batteries using a simplified bulk, absorption, and float algorithm, and features a recovery function that can bring a fully discharged battery back to life, even if it has been drained to zero volts. The Night and Low modes enable reduced current output for quiet operation and energy conservation, with Night mode automatically ending after 8 hours and Low mode ending manually.
Built with safety and durability in mind, the Victron Blue Smart IP22 Charger includes protections against overheating, reverse polarity, output short circuits, and over-temperature conditions. Its status is conveniently indicated by eleven LEDs, providing clear information on the current charging phase and mode settings. The charger's enclosure, made from durable aluminum with a blue RAL 5012 finish, is IP22 rated for splash resistance and includes screw terminals for secure battery connections. This compact unit weighs approximately 1.3 kg and measures 9.3 inches long, 4.3 inches wide, and 2.6 inches high, making it suitable for various installation spaces.
Compliance with international safety and electromagnetic compatibility standards such as EN 60335 and EN 55014 ensures reliable performance across different regions. The Blue Smart IP22 Charger operates effectively within a temperature range of -20°C to +50°C and can handle humidity levels up to 98% non-condensing. Its Bluetooth frequency range of 2402-2480MHz with a power output of -4dBm facilitates seamless wireless connectivity, providing users with a smart, efficient, and safe charging solution for a wide range of batteries and vehicle types.
Features:
