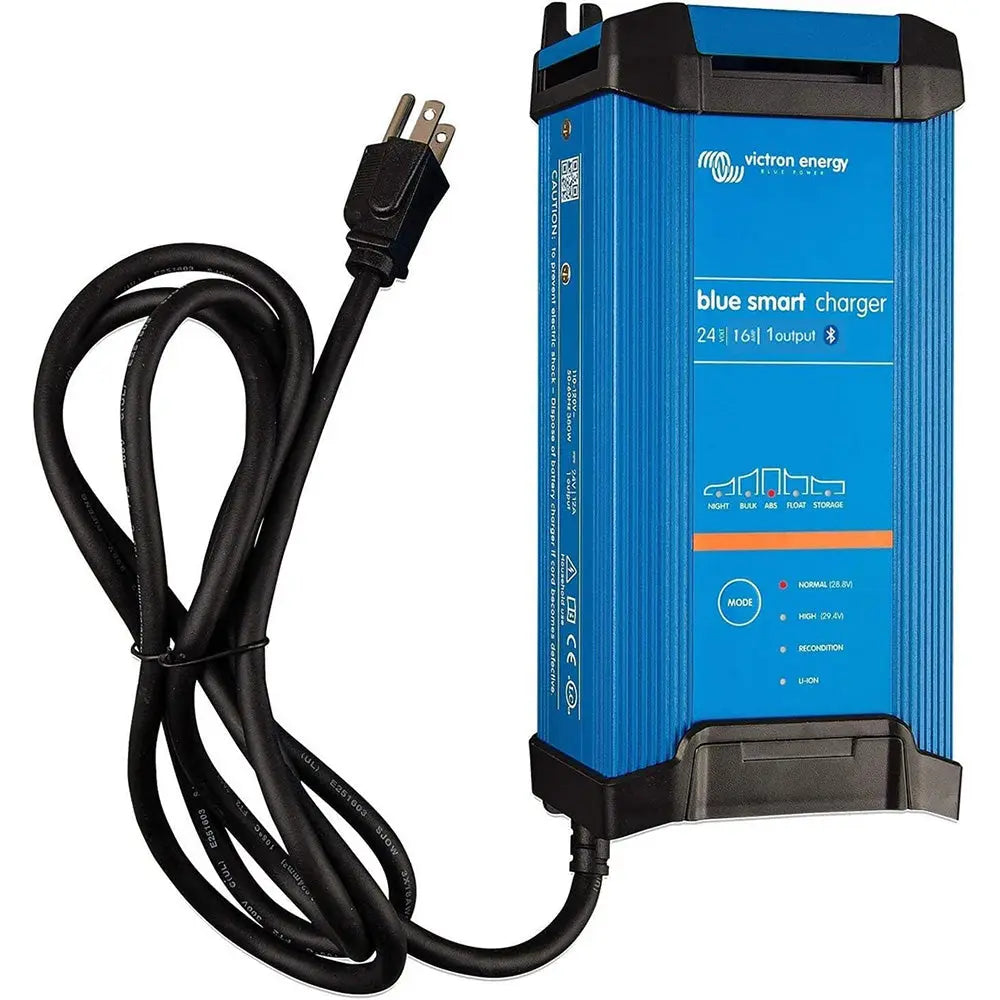

Victron Energy Blue Smart IP22 24VDC 16A Battery Charger with Bluetooth and Dry Mount Design

Blue Smart IP22 24VDC 16A 1 Bank 120V Charger - Dry Mount

The Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Bluetooth Smart

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test - bulk absorption - recondition float storage

The Blue Smart Charger features a microprocessor-controlled adaptive battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to equalize the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion batteries

Li-ion batteries are charged with a simple bulk absorption float algorithm.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating

Output current will reduce as the temperature increases up to 50C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication

Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.

Specifications:

• Input Voltage Range: 100 - 130 VAC
• Charge Current, Normal Mode: 8/12/16 A
• Charge Current, NIGHT or LOW: 4 / 6 / 8 A
• Efficiency: 94%
• No Load Power Consumption: 0.5 W
• Frequency: 45 65 Hz
• Number of Outputs: 1
• Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V
• Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V
• Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V
• Charge Algorithm: 6-stage adaptive
• Can Be Used as Power Supply: Yes
• Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature
• Operating Temp. Range: -20 to +50C
• Humidity (non-condensing): Max 98%
• Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm

Enclosure Specifications:

• Material Color: Aluminium (blue RAL 5012)
• Battery Connection: Screw terminals 13 mm^2 / AWG6
• 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
• Protection Category: IP22
• Weight: 1,3 kg
• Dimensions (h x w x d): 235 x 108 x 65 mm

Standards:

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000
• Automotive E4-10R

Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Energy Blue Smart IP22 Charger model BPC241647102 is a versatile and high-efficiency battery charger designed for professional and recreational applications. Suitable for powering batteries in workshops, classic cars, motorbikes, boats, and camper-vans, this charger offers reliable performance with advanced features. Its compact design and IP22 enclosure ensure durability and protection against dust and water ingress, making it ideal for indoor and sheltered outdoor environments. The charger’s integrated Bluetooth technology allows wireless monitoring and configuration via a smartphone app, providing convenient control over voltage, current, and firmware updates without the need for physical access.
Powered by a microprocessor-controlled 6-stage adaptive algorithm, the Victron Blue Smart charger intelligently manages the charging process, optimizing battery health and longevity. It includes modes such as test, bulk, absorption, recondition, float, storage, and readiness, which tailor the charging cycle to the battery’s state and usage. The storage mode reduces gassing and corrosion when batteries are idle for over 24 hours, periodically reconditioning to prevent sulfation and electrolyte stratification. The charger also supports charging lithium-ion batteries with a simplified algorithm, ensuring compatibility with modern energy storage solutions.
Additional features include a fully discharged battery recovery function that can restore batteries to full capacity, even if previously discharged to zero volts. Night and low current modes enable silent operation at reduced output, ideal for nighttime or noise-sensitive environments. The charger’s thermal protection reduces output current in response to rising temperatures up to 122°F, preventing overheating without failure. It is equipped with eleven LEDs indicating various operational statuses, including charge stages and modes, enhancing user awareness. The device’s robust aluminium enclosure, screw terminals for battery connection, and supplied AC cable make installation straightforward. Compliance with international safety and EMC standards ensures reliable and safe operation across diverse settings.
Overall, the Victron Blue Smart IP22 Charger combines advanced technology, user-friendly features, and durable construction to deliver efficient and safe battery charging for a wide range of applications. Whether maintaining vehicle batteries or managing lithium-based energy storage, this charger offers a comprehensive solution for professional and hobbyist users alike.

Features:

• Bluetooth Smart: Wireless monitoring and configuration via smartphone app

• High Efficiency: Up to 94% efficiency reduces heat and power consumption

• Adaptive 6-Stage Charge Algorithm: Optimizes charging based on battery condition

• Storage Mode: Minimizes maintenance and aging during idle periods

• Li-ion Charging Support: Compatible with lithium-ion batteries using simplified algorithms

• Fully Discharged Battery Recovery: Restores batteries discharged to zero volts

• Night and Low Mode: Reduced noise and current for silent operation

• Overtemperature Protection: Output current decreases if device overheats

• Status Indicators: Eleven LEDs display charge stages and modes

• Durable Aluminium Enclosure: IP22 rated for indoor and sheltered outdoor use

• Easy Installation: Screw terminals and included AC cable for straightforward setup

• Compliance: Meets international safety and EMC standards
