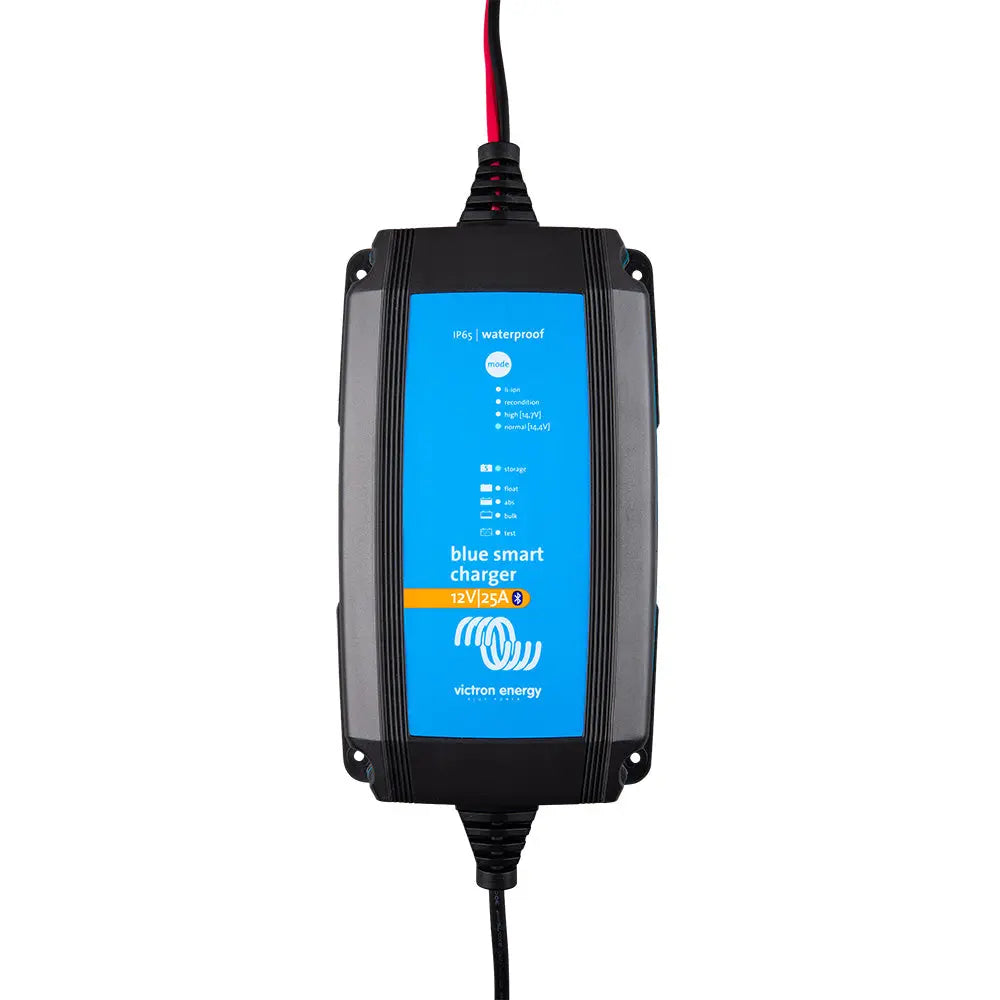

Victron Energy BlueSmart IP65 Charger 12/25 - 120V NEMA 1-15P UL Approved Battery Charger

BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P UL Approved

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans.

The Battery Is Charged, Smartly... To Perfect Condition

The seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.

Recovery of Deeply-Discharged Dead Batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the Battery with Ease

The charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.

Check the Status of the Battery Remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Specifications:

• Input Voltage: 120 VAC
• Efficiency: 94%
• Standby Power Consumption: 0.5W
• Minimum Battery Voltage: Starts charging from down to 0V
• Charge Voltage 'Absorption': Normal: 14.4V High: 14.7V Li-ion: 12.4V
• Charge Voltage 'Float': Normal: 13.8V High: 13.8V Li-ion: 13.5V
• Charge Voltage 'Storage': Normal: 13.2V High: 13.2V Li-ion: 13.5V
• Charge Current: 25A
• Temperature Compensation (Lead-Acid Batteries Only): 16 mV/degrees C (18mV/degrees F
• Can Be Used as Power Supply: Yes
• Back Curreny Drain: 0.7Ah/month (1mA)
• Protection: Reverse polarity; Output short circuit; Over temperature
• Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40 to +140 degrees F (full rated output up to 90 degrees F)
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Battery-Connection: Black and red cable of 1.5 meters (4.9 feet)
• 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug
• Protection Category: IP65 (splash and dust proof, and ignition protected)
• Weight: 0,9kg (2lbs)
• Dimensions (H x W x D): 12/25: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches

Standards:

• Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

The Victron Energy BlueSmart IP65 Charger 12/25 is a professional-grade battery charger designed for versatile use in workshops, on motor vehicles, boats, and campervans. Featuring an advanced seven-step charging algorithm, this charger ensures batteries are charged efficiently while maintaining optimal health, leading to longer battery lifespan and improved performance. Its intelligent charging process adapts to deeply discharged batteries by force-feeding a low current, then resumes normal charging once sufficient voltage is detected, making it suitable for recovering even severely depleted batteries.
Equipped with both crocodile clips and M8 eyelets, the BlueSmart IP65 allows quick and secure connection to various battery types, with the option to leave it permanently connected for continuous maintenance. The built-in Bluetooth capability enables remote monitoring and configuration via smartphones, tablets, or laptops using the VictronConnect app, providing convenience and real-time status updates. The charger's robust IP65 enclosure makes it splash-proof and dust-resistant, ideal for demanding environments, and it complies with multiple safety and emission standards, ensuring reliable operation.
With a high efficiency of 94% and a charging current of 25 amps, the BlueSmart IP65 is effective at delivering power across a wide temperature range, from -40°F to +140°F. It includes protection features against reverse polarity, output short circuits, and overheating, enhancing durability and safety. The charger also functions as a power supply, offering additional flexibility for various applications. Its compact design, weighing just under 2 pounds, and included cables make installation straightforward, whether for temporary charging or permanent maintenance. For comprehensive details and operating instructions, refer to the official manual available at the provided URL.

Features:

• Seven-step charging algorithm for optimal battery health

• Recovery mode for deeply discharged batteries

• Multiple connection options: crocodile clips and M8 eyelets

• Bluetooth-enabled remote monitoring and configuration

• IP65 rated enclosure for splash and dust resistance

• High efficiency of 94% with 25A charge current

• Wide operating temperature range from -40°F to +140°F

• Protection features including reverse polarity, short circuit, and over temperature
