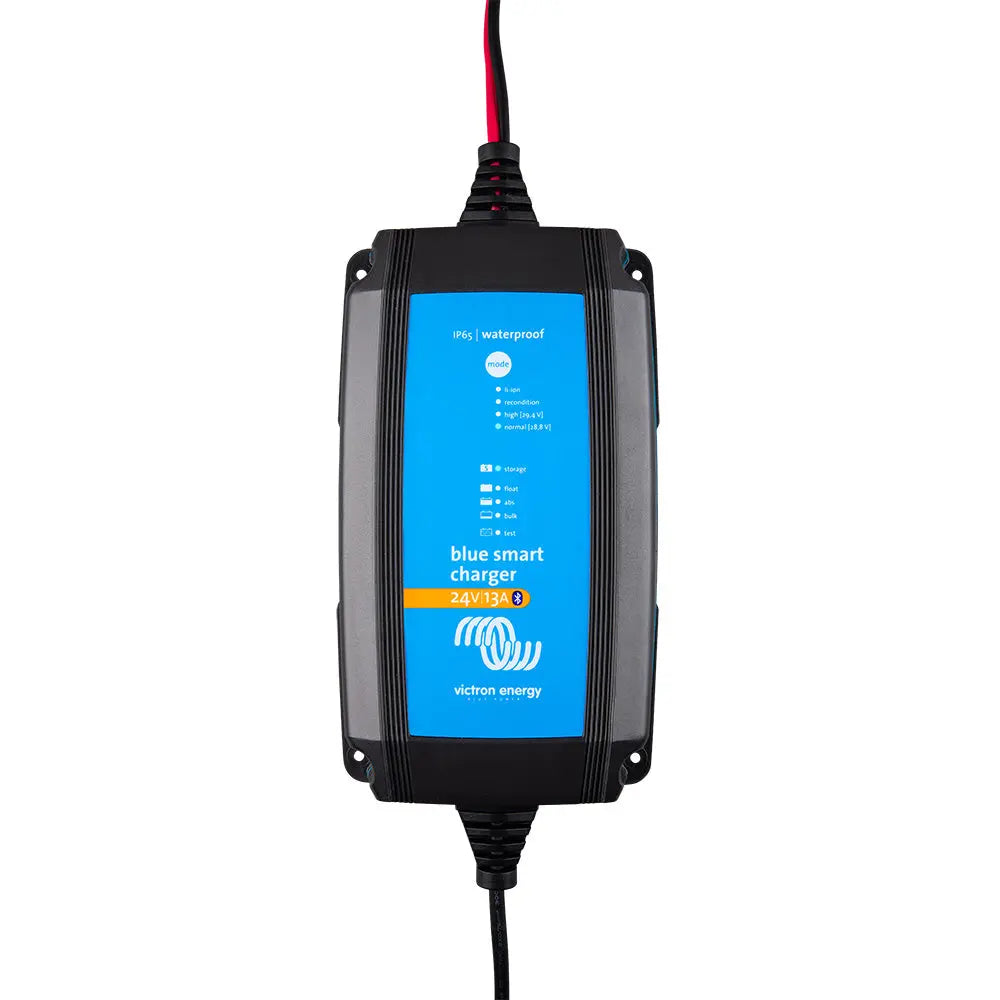

Victron Energy BlueSmart IP65 Charger 24/13 - 120V NEMA 1-15P UL Approved Battery Charger

BlueSmart IP65 Charger 24/13 (1) 120V NEMA 1-15P UL Approved

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans.

The Battery Is Charged, Smartly... To Perfect Condition

The seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.

Recovery of Deeply-Discharged Dead Batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the Battery with Ease

The charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.

Check the Status of the Battery Remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Specifications:

• Input Voltage: 120 VAC
• Efficiency: 95%
• Standby Power Consumption: 95% 0.5W
• Minimum Battery Voltage: Starts charging from down to 0V
• Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V
• Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V
• Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V
• Charge Current: 5/8A
• Charge Current in Low Current Mode: 2 / 3A
• Temperature Compensation (Lead-Acid Batteries Only): 32 mV/degrees C (18mV/degrees F
• Can Be Used as Power Supply: Yes
• Back Curreny Drain: 0.7Ah/month (1mA)
• Protection: Reverse polarity; Output short circuit; Over temperature
• Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40 to +140 degrees F (full rated output up to 90 degrees F)
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Battery-Connection: Black and red cable of 1.5 meters (4.9 feet)
• 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug
• Protection Category: P65 (splash and dust proof, and ignition protected)
• Weight: 0,9kg (2lbs)
• Dimensions (H x W x D): 24/8: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches

Standards:

• Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

The Victron Energy BlueSmart IP65 Charger model BPC241331124 is a professional-grade battery charger designed for versatile applications including workshop use, classic cars, motorcycles, boats, and campervans. Featuring built-in Bluetooth connectivity, this charger allows users to monitor and configure charging settings remotely via the VictronConnect app, providing convenience and control at your fingertips. Its rugged IP65 enclosure ensures protection against dust, water splashes, and ignition hazards, making it suitable for demanding environments and outdoor use.
The BlueSmart IP65 Charger employs a sophisticated seven-step charging algorithm that optimizes battery health, performance, and longevity. It intelligently adjusts the charging process to match the battery's state, ensuring a complete charge while maintaining its overall condition. Additionally, the charger includes a recovery mode capable of recharging deeply discharged or dead batteries by force-feeding a low current, then resuming normal charging once sufficient voltage is detected, offering a solution for batteries that seem beyond revival.
Connecting the charger to batteries is straightforward with its dual options of crocodile clips and M8 eyelets, which can be left attached permanently if desired. Its low standby power consumption and reverse polarity protection add to its reliability and safety. The charger can also serve as a power supply, providing a stable 24/13V output for other electrical needs. Designed to operate across a broad temperature range, it maintains full rated output from -40°C to +60°C, ensuring dependable operation in various climates. Its efficiency of 95% and compliance with multiple safety and emission standards guarantee high performance and safety in professional and personal applications.
The Victron BlueSmart IP65 Charger is lightweight at approximately 1.7 pounds and compact, with dimensions suited for easy installation and transport. It comes with a 1.5-meter battery connection cable and a 1.8-meter power cord with a US NEMA 1-15P plug, making it ready to use right out of the box. Whether you need to maintain a vehicle battery or power small electrical devices, this charger offers a reliable, smart, and durable solution backed by comprehensive safety features and remote monitoring capabilities.

Features:

• Bluetooth connectivity for remote monitoring and configuration via VictronConnect app

• IP65 rated enclosure providing dust and water resistance, ignition protection

• Seven-step charging algorithm to maximize battery health and lifespan

• Recovery mode for deeply discharged or dead batteries

• Easy connection with crocodile clips or M8 eyelets, suitable for permanent installation

• Dual voltage and current options, including low current mode for sensitive batteries

• Built-in safety protections against reverse polarity, short circuit, and over-temperature

• Wide operating temperature range from -40°C to +60°C for reliable outdoor use

• High efficiency of 95% with low standby power consumption

• Compact and lightweight design with included cables for straightforward setup
