Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm See the software section on our website for details
Day/night timing and light dimming option See the software section on our website for details
Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.

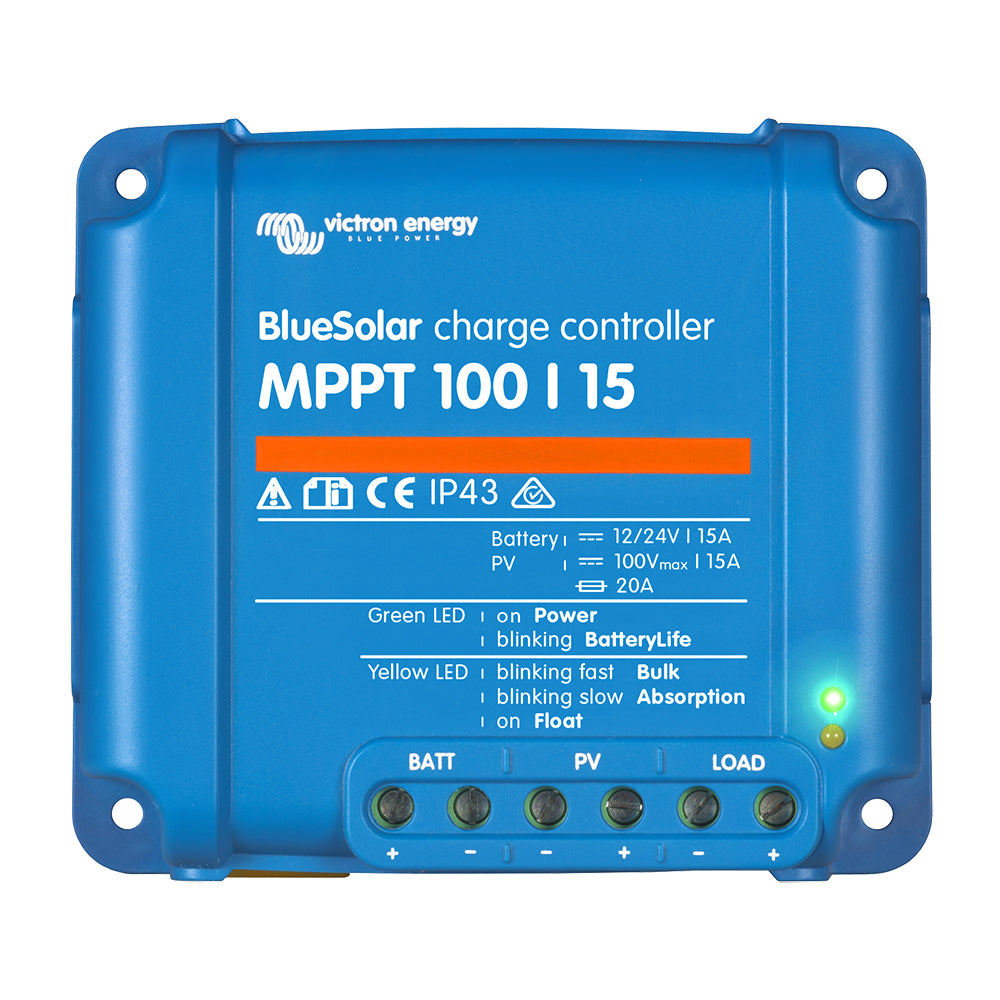

The Victron Energy BlueSolar MPPT Charge Controller (Part Number: SCC010015200R) is designed to optimize your solar energy harvesting with advanced MPPT technology. Equipped to handle systems up to 100V and 15 amps, this controller ensures maximum power extraction even under fluctuating weather conditions, thanks to its ultra-fast tracking capabilities. This feature can enhance energy harvest efficiency by up to 30% compared to PWM controllers and by approximately 10% over slower MPPT models, making it an excellent choice for both residential and off-grid solar setups. The device's intelligent load management prevents battery over-discharge by disconnecting loads at pre-set voltage levels, protecting your batteries from damage and prolonging their lifespan. The load output is short circuit proof and can be connected directly to loads or inverters, with optional interface cables for remote control integration. The built-in Battery Life algorithm continuously monitors and adjusts the load disconnect levels, ensuring your lead-acid batteries are fully recharged regularly, thus avoiding rapid deterioration caused by partial charging cycles. Additionally, the controller supports programmable battery charge algorithms, day/night timing, and light dimming options, all configurable through compatible software. For real-time data, history, and remote programming, the controller can interface with the Victron Color Control GX or via Bluetooth using the VE.Direct Bluetooth Smart dongle. This integration simplifies system monitoring and management, providing comprehensive control over your solar power system. Please note the product’s compliance with safety standards and the associated California Proposition 65 warning. For warranty details and support, refer to the provided link. Ensure your solar setup operates efficiently and reliably with the Victron Energy BlueSolar MPPT Charge Controller, a robust solution engineered for optimal energy management and long-term performance.
Features:
Ultra-fast MPPT tracking improves energy harvest efficiency by up to 30% under changing light conditions
Load output prevents battery over-discharge with pre-set voltage disconnect and short circuit protection
Intelligent Battery Life algorithm maintains full charge cycles, extending battery lifespan
Programmable charge algorithms and light dimming options enhance system customization
Supports real-time data, history, and remote configuration via Color Control GX or Bluetooth
