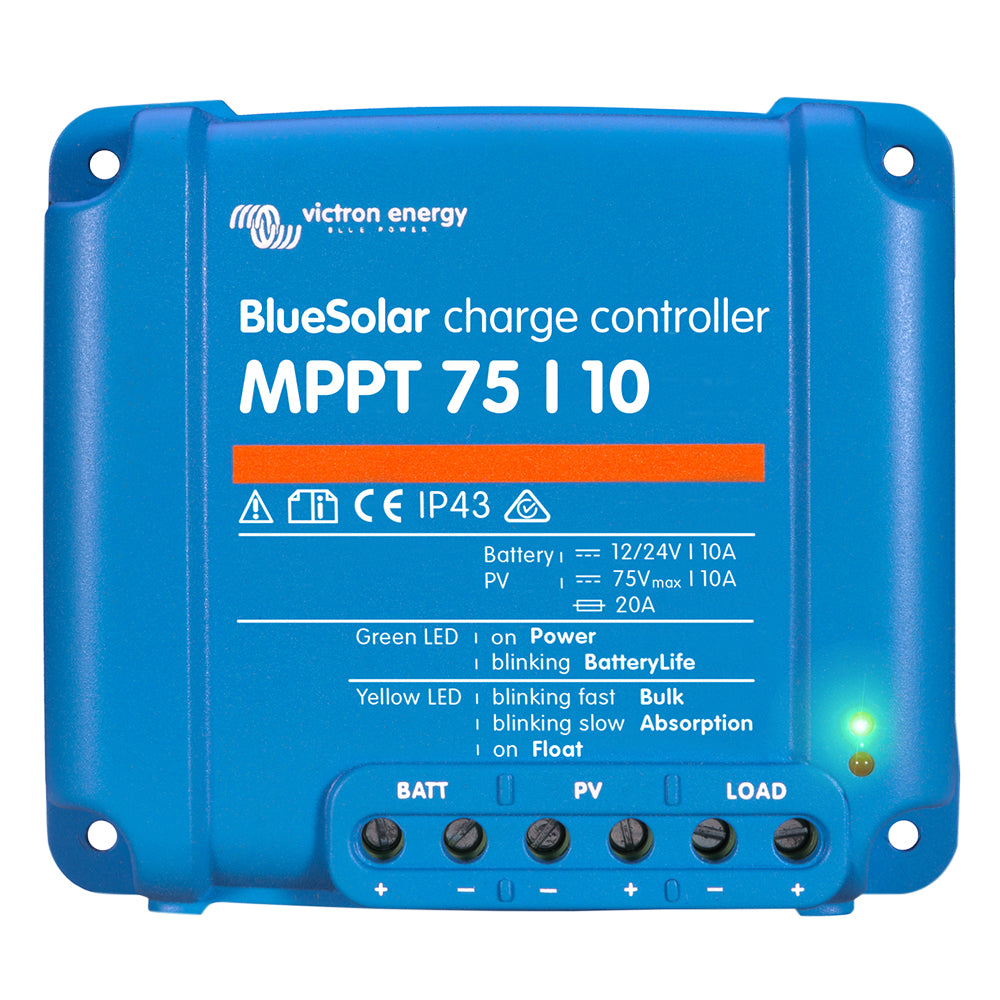

Victron Energy BlueSolar MPPT Charge Controller 75V 10A - Efficient Solar Power Management

BlueSolar MPPT Charge Controller - 75V - 10AMP

Features:

• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy BlueSolar MPPT Charge Controller Part Number SCC010010050R is designed to optimize your solar energy system with advanced features. This controller supports a maximum voltage of 75V and a current of 10 amps, making it suitable for a range of small to medium-sized solar setups. Its ultra-fast MPPT technology tracks the maximum power point of your solar panels swiftly and accurately, especially under fluctuating light conditions such as cloudy skies, improving energy harvest by up to 30% compared to traditional PWM controllers and by up to 10% over slower MPPT models. This ensures you get the most out of every sunlight hour, increasing system efficiency and energy output. The device's load output is designed to prevent over-discharge by disconnecting loads at pre-set voltage levels, which protects your batteries and extends their lifespan. Additionally, an intelligent battery management algorithm adjusts the load disconnect level to ensure batteries are fully recharged regularly, preventing damage from partial cycling common in low-recharge scenarios. The controller supports programmable charge algorithms, day/night timing, and light dimming features, which can be customized through various software options. For real-time data monitoring, the controller can be integrated with the Victron Color Control GX or other GX devices, and Bluetooth-enabled devices can connect via the VE.Direct Bluetooth Smart dongle for convenient remote management. Built with robust features, this controller is a reliable choice for sustainable energy systems, providing efficient power control, enhanced battery protection, and flexible programming options. Note that proper installation and configuration are essential for optimal performance, and compatibility with your existing system should be verified. For warranty details and safety information, please visit the provided links. Trust the Victron BlueSolar MPPT Charge Controller to maximize your solar energy harvest while safeguarding your batteries and system components.

Features:

• Ultra-fast MPPT tracking improves energy harvest by up to 30% in fluctuating light conditions.

• Load output prevents over-discharge by disconnecting loads at pre-set voltages and supports intelligent battery management.

• Battery Life algorithm monitors and adjusts charge cycles to extend battery lifespan, ensuring full recharge regularly.

• Supports programmable charge algorithms, day/night timing, and light dimming for system customization.

• Compatible with Victron Color Control GX and Bluetooth-enabled devices for real-time data monitoring and control.
