Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm See the software section on our website for details
Day/night timing and light dimming option See the software section on our website for details
Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.

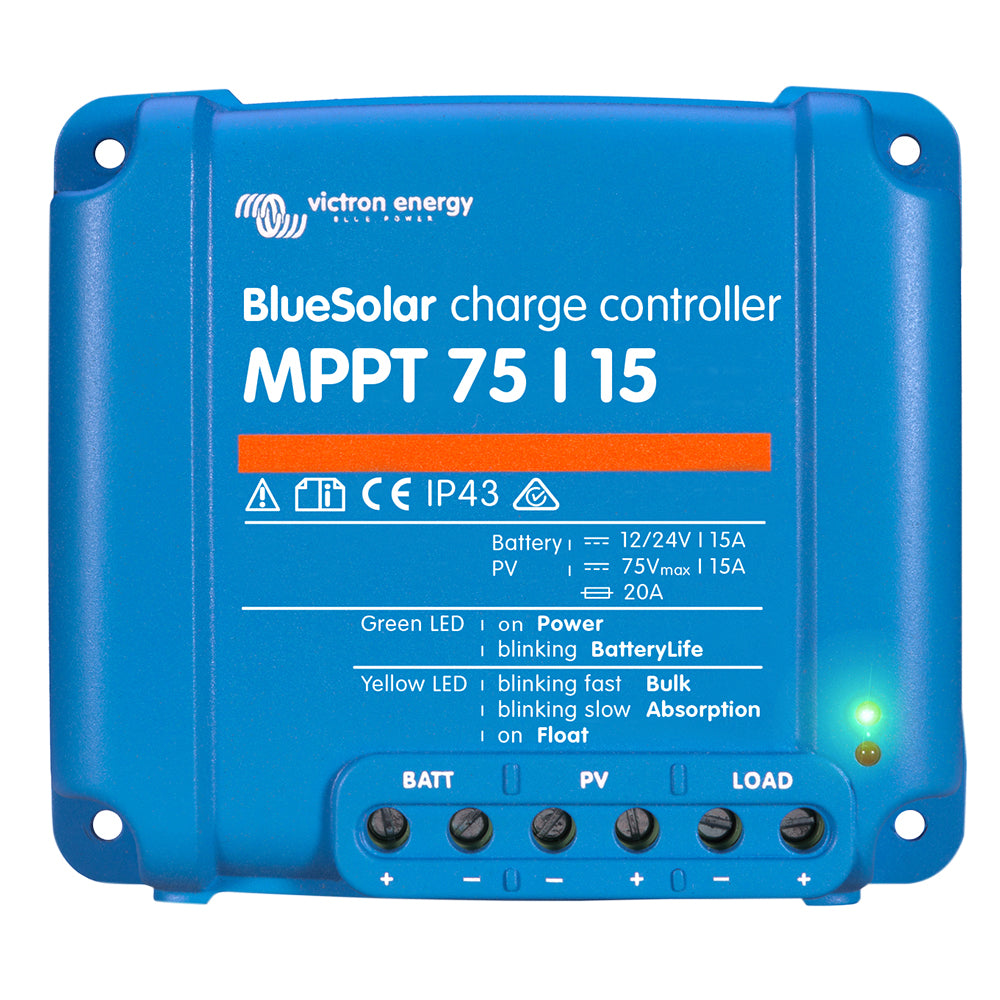

The Victron Energy BlueSolar MPPT Charge Controller, model SCC010015050R, is a high-performance solution designed to optimize your solar energy system. With a maximum PV voltage of 75 volts and a current capacity of 15 amps, this controller ensures efficient energy harvesting even under fluctuating light conditions. Its ultra-fast Maximum Power Point Tracking (MPPT) technology enhances energy extraction by up to 30% compared to traditional PWM controllers, making it ideal for variable weather and cloud cover scenarios. This advanced feature maximizes your solar investment by ensuring the most power is drawn from your panels at all times. The controller offers a load output that prevents battery over-discharge by automatically disconnecting loads once the battery reaches a pre-set voltage. This load management can be customized using the intelligent battery management algorithm, which adjusts the load disconnect level to promote full battery recharge over time. The system's Battery Life feature monitors the charge state and modulates load disconnection to prolong battery lifespan, especially critical for lead-acid batteries. Programmable charge algorithms and day/night timing with light dimming options provide further customization to optimize your system's performance. The Victron BlueSolar MPPT Controller includes user-friendly programming, real-time data, and history display capabilities through compatibility with the Color Control GX or other GX devices, as well as Bluetooth-enabled devices via the VE.Direct Bluetooth Smart dongle. These features enable easy system monitoring and management from anywhere. Please consult the product manual or visit Victron's website for detailed software options and configuration settings. Built with quality and safety in mind, this controller comes with a comprehensive warranty. It is important to note that the product contains chemicals recognized by California's Proposition 65 as potential reproductive hazards. For detailed warranty and safety information, visit the provided links. For support, repairs, or returns, contact your authorized dealer to ensure proper handling and assistance.
Features:
Ultra-fast MPPT technology enhances energy harvest by up to 30% over PWM controllers
Load output prevents over-discharge with customizable voltage disconnect and intelligent management
Battery Life algorithm monitors and optimizes recharging cycles to extend battery lifespan
