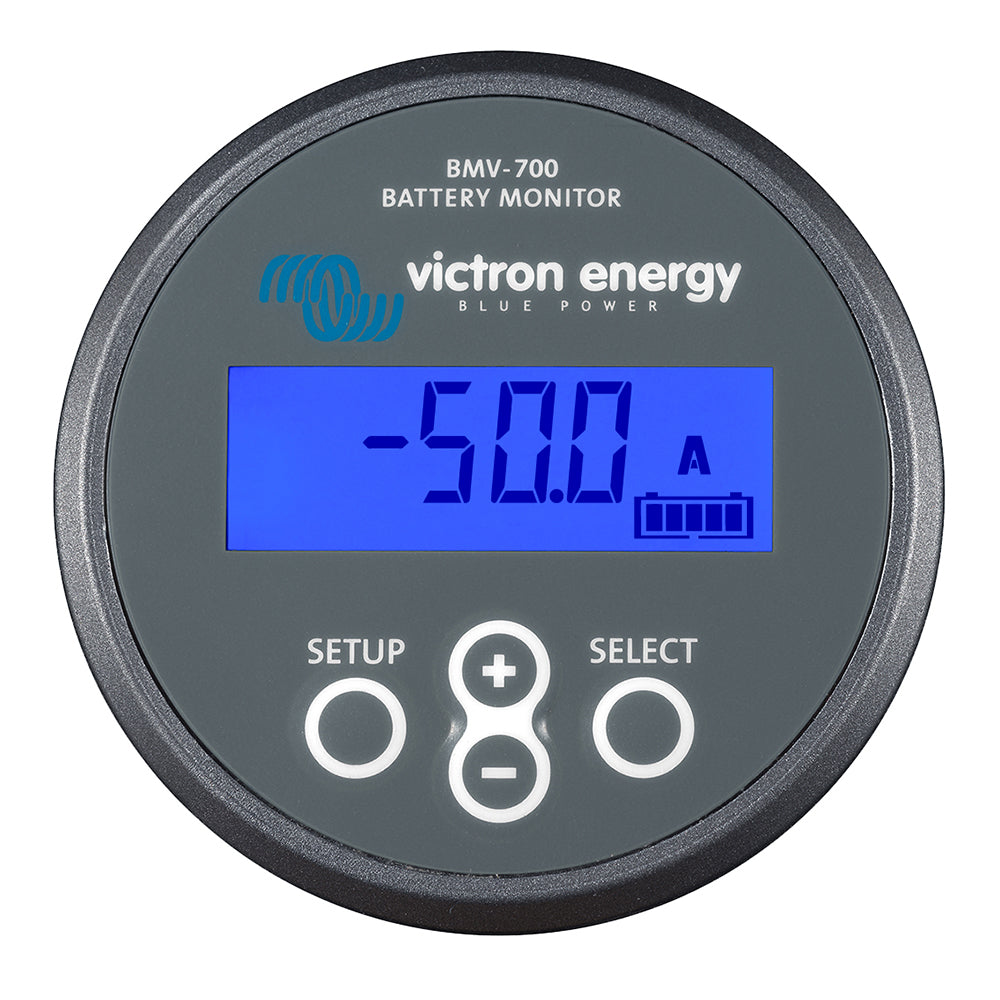

Victron Energy BMV-700 Battery Monitor for Precise State of Charge and Power Management

BMV-700 Battery Monitor

The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

Features:

• Battery voltage, current, power, ampere-hours consumed and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or to run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10.000 Amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6,5 95V
• High current measurement resolution: 10 mA (0,01A)
• Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy BMV-700 Battery Monitor provides high-precision monitoring of your battery system, ideal for RVs, boats, and off-grid applications. This advanced device accurately measures battery voltage, current, power, ampere-hours consumed, and the remaining charge, helping you optimize your energy usage. Its capability to calculate ampere hours consumed by integrating the current flow in and out of the battery ensures precise tracking of energy consumption and battery health. The monitor features a user-friendly interface with a programmable visual and audible alarm, alerting you to critical conditions such as low charge or high discharge rates, enhancing safety and reliability.
The BMV-700 includes a programmable relay, allowing you to automatically disconnect non-critical loads or activate a generator when necessary. It comes equipped with a 500 Amp quick connect shunt and connection kit, supporting shunt selection up to 10,000 Amps for larger systems. The device communicates via VE.Direct port, enabling seamless integration with VictronConnect app on smartphones or tablets for real-time status updates and configuration. It also stores extensive historical data, providing insights into usage patterns and overall battery health. With a wide input voltage range from 6.5V to 95V, it accommodates various battery types and system configurations. The monitor's high current measurement resolution of 10mA ensures accurate readings, while its low power consumption of approximately 2.9Ah per month at 12V allows it to operate efficiently without draining your battery.
VictronConnect app support enhances user experience by providing live status information and easy configuration options, whether via Bluetooth or connected dongle. This feature makes monitoring and managing your battery system straightforward and accessible. The BMV-700 is designed with durability and reliability in mind, making it suitable for demanding environments. Please consult the included owner’s manual for installation instructions and detailed specifications. Note that this product may contain chemicals known to cause reproductive harm, as per California’s Proposition 65; additional safety information can be found at P65Warnings.ca.gov. For support, repairs, or returns, contact your authorized dealer to ensure proper assistance and warranty coverage.

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge measurement

• Remaining time at current discharge rate

• Programmable visual and audible alarm for critical conditions

• Programmable relay to disconnect loads or activate generator

• Includes 500 Amp quick connect shunt and connection kit

• Supports shunt selection up to 10,000 Amps for large system compatibility

• VE.Direct communication port for seamless connectivity

• Stores extensive historical event data for usage analysis and battery health monitoring

• Wide input voltage range from 6.5V to 95V

• High current measurement resolution of 10mA (0.01A)

• Low monthly power consumption of approximately 2.9Ah at 12V
