Battery Monitor - BMV-702 - Grey
Features:
- Battery fuel gauge, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage (see below).
- Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
- Easy to install All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
- Easy to program (with your smartphone!) A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
- Standard features - Battery voltage, current, power, ampere-hours consumed and state of charge - Remaining time at the current rate of discharge - Programmable visual and audible alarm - Programmable relay, to turn off non critical loads or to run a generator when needed - 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps - VE.Direct communication port - Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health - Wide input voltage range: 6,5 95V - High current measurement resolution: 10 mA (0,01A) - Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
Warranty Info
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.

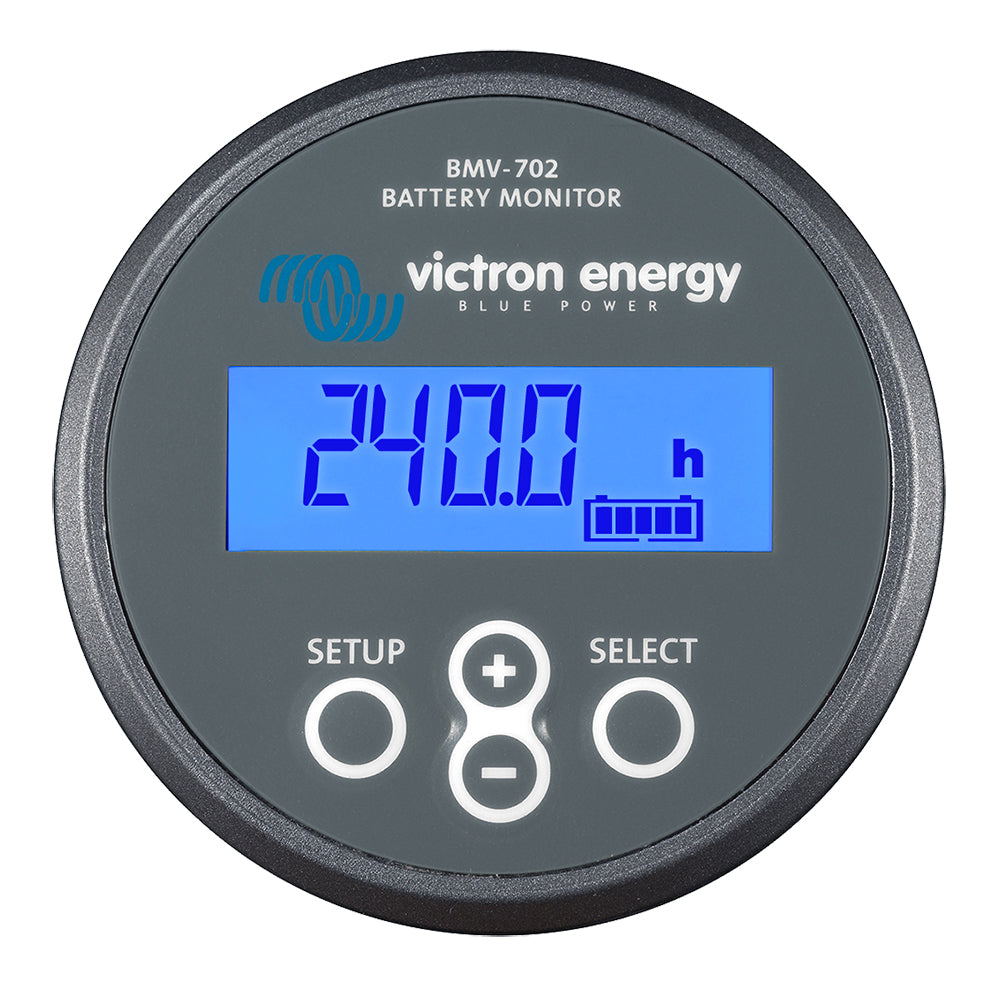

The Victron Energy BMV-702 Battery Monitor in grey provides comprehensive real-time insights into your battery system, making it an essential tool for both recreational and professional applications. This advanced monitor displays key parameters such as voltage, current, ampere-hours consumed, and power in watts, allowing users to assess battery health and performance accurately. Its sophisticated software algorithms account for variables like discharge current, temperature, and battery age, offering precise state-of-charge and remaining run-time estimates. The BMV-702 features an additional programmable input, enabling measurement of a second battery's voltage, temperature, or midpoint voltage, enhancing versatility for complex systems. The monitor supports VE.Direct communication for seamless data transfer and can be monitored remotely via Bluetooth Smart with the optional dongle, compatible with smartphones, tablets, and computers. Installation is straightforward with quick-connect PCB terminals, a standard RJ12 cable, and included mounting hardware, simplifying setup even in tight spaces. Programming the device is user-friendly, with a quick menu and detailed setup options accessible through your smartphone app, reducing the need for complex configurations. Standard features include high-accuracy measurement of voltage, current, and power, along with programmable alarms and relays to automate load management or generator start-up. The monitor also stores historical data, providing valuable insights into usage patterns and battery health over time. Designed for wide input voltage ranges from 6.5V to 95V and capable of measuring currents up to 10,000 amps with high resolution, the BMV-702 is suitable for a variety of battery systems, including large-scale setups. Its low power consumption ensures minimal drain on your batteries, and its comprehensive feature set makes it a reliable choice for monitoring critical power systems with ease and precision.
Features:
- Battery fuel gauge, state of charge, and time-to-go indicators for accurate battery status
- Bluetooth Smart compatibility for remote monitoring via smartphones and tablets
- Easy installation with quick connect PCB terminals, included RJ12 cable, and mounting hardware
- User-friendly programming with smartphone app, quick menu, and detailed setup options
- Supports VE.Direct communication for data transfer and system integration
- Programmable alarms and relays for automated load management or generator control
- Wide voltage input range from 6.5V to 95V with high current measurement resolution up to 10,000 amps
- Stores historical data to analyze usage patterns and battery health over time
- Low power consumption ensures minimal drain on your battery system
- Includes additional input for measuring second battery voltage, temperature, or midpoint voltage
