BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

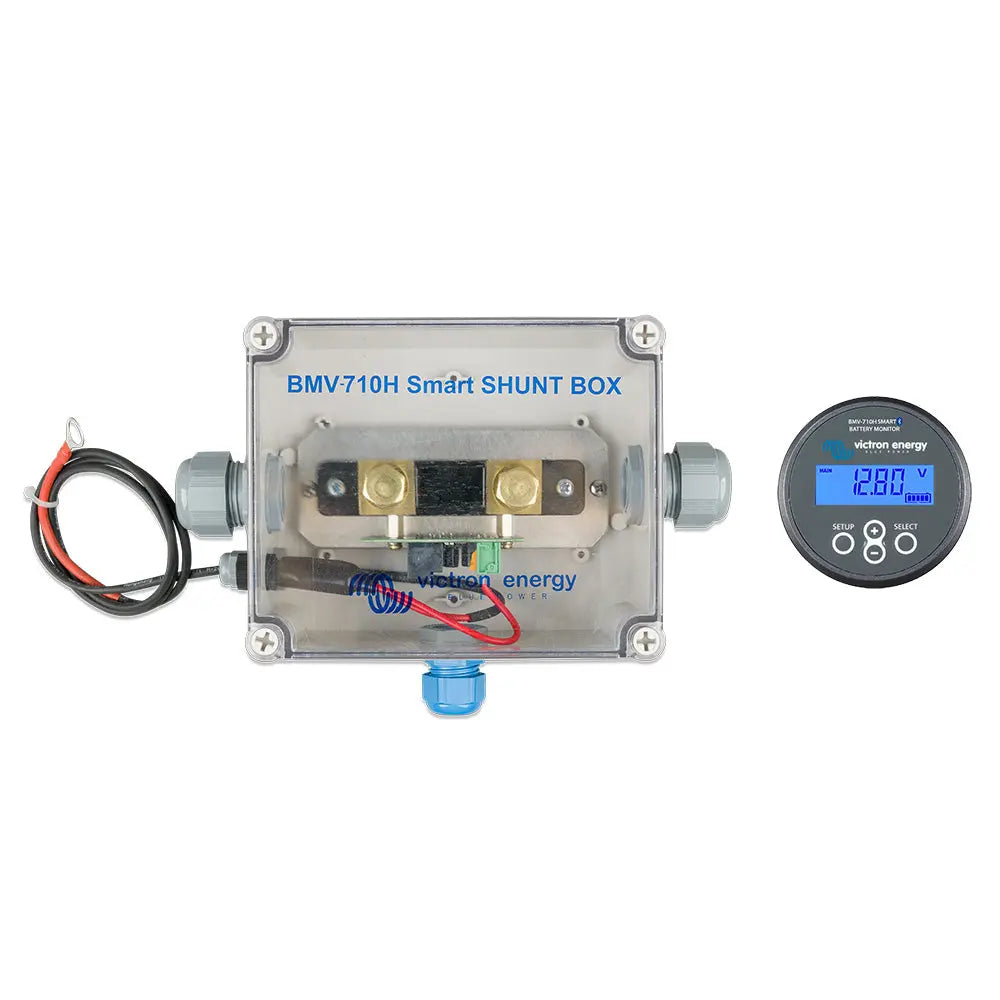

The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

Battery fuel gauge, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.

Bluetooth Smart

Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.

Easy to Install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.

Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.

Easy to Program (with your smartphone!)

A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.

Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10,000 amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6.5 95V
• High current measurement resolution: 10 mA (0.01A)
• Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

BMV-710H Specifications:

• Supply Voltage Range: 60 385 VDC
• Current Draw, Back Light Off: < 4mA
• Input Voltage Range, Auxiliary Battery: n. a.
• Battery Capacity (Ah): 1 - 9999 Ah
• Operating Temperature Range: -40 +50C (-40 - 120F)
• Measures Voltage of Second Battery, or Temperature, or Midpoint: No
• Temperature Measurement Range: n. a.
• VE.Direct Communication Port: Yes
• Relay: 60V / 1A normally open (function can be inverted)

Resolution Accuracy (with a 500 A shunt):

• Current: 0.01A
• Voltage: 0.01V
• Amp Hours: 0.1 Ah
• State of Charge: (0 100%) 0.1%
• Time to Go: 1 min
• Temperature: n. a.
• Accuracy of Current Measurement: 0.4%
• Accuracy of Voltage Measurement: 0.3%

Installations Dimensions:

• Installation: Flush mount
• Front: 63mm diameter
• Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
• Shunt Connection Bolts: M10 (0.3937 inch)
• Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
• Protection Category: IP55 (not intended for outdoor use)

Standards:

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498

Accessories:

• Shunt (included): 500A / 50mV
• Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for + connection
• Temperature Sensor: Optional (ASS000100000)
• Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Energy BMV-710H Smart High Voltage Battery Monitor is a comprehensive solution designed for monitoring batteries with voltage ranges from 60V to 385VDC. This advanced monitor features Bluetooth connectivity, allowing you to wirelessly access real-time battery data via the VictronConnect App on your smartphone or tablet. With this app, users can easily view parameters such as state of charge, remaining runtime, historical events, and power consumption, providing critical insights for efficient energy management.
Designed with user convenience in mind, the BMV-710H includes a round head unit, a square bezel overlay, a mounting screw ring, and a 10-meter UTP RJ12 cable for straightforward installation. The device integrates a 500A/50mV shunt housed in a specialized enclosure to handle high current measurements safely. All necessary wiring components, including a fused power supply cable, are included, making setup quick and hassle-free without requiring additional parts.
Beyond basic voltage and current readings, the BMV-710H offers advanced features such as state of charge calculation, time remaining at current discharge rates, programmable alarms, and relay outputs to turn off non-critical loads or activate a generator when needed. Its high-resolution measurement capabilities include 0.01A current resolution and 0.01V voltage resolution, ensuring precise monitoring. The device can also log a wide range of historical data, which can be used for analyzing usage patterns and assessing battery health for maintenance planning. The monitor supports a broad input voltage range from 6.5V to 95V, making it suitable for various high-voltage applications.
Installation is simplified with a flush-mount design, and the device's compact size allows it to be installed in tight spaces. Its IP55 protection rating makes it suitable for indoor environments, although not designed for outdoor use. Compatibility with VE.Direct communication port enables integration with other Victron Energy products, enhancing system versatility. The BMV-710H also supports shunt connection options up to 10,000 amps, providing scalability for larger battery systems. Whether used in renewable energy setups, off-grid solar systems, or backup power solutions, this monitor offers reliable, detailed battery management and monitoring capabilities for professionals and enthusiasts alike.

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge display

• Remaining time at current discharge rate indicator

• Programmable visual and audible alarms for critical conditions

• Programmable relay to disconnect loads or activate generators

• Includes 500A/50mV quick connect shunt and connection kit

• Supports shunt selection up to 10,000 amps for scalability

• VE.Direct communication port for system integration

• Logs extensive historical data for usage and health analysis

• Wide input voltage range of 6.5V to 95V for versatile applications

• High current measurement resolution: 0.01A

• Low power consumption for energy efficiency

• Easy installation with flush mount design and included mounting accessories

• Bluetooth Smart connectivity for remote monitoring via smartphone or tablet

• Supports optional temperature sensor for additional monitoring options

• Certified to meet safety and electromagnetic compatibility standards
