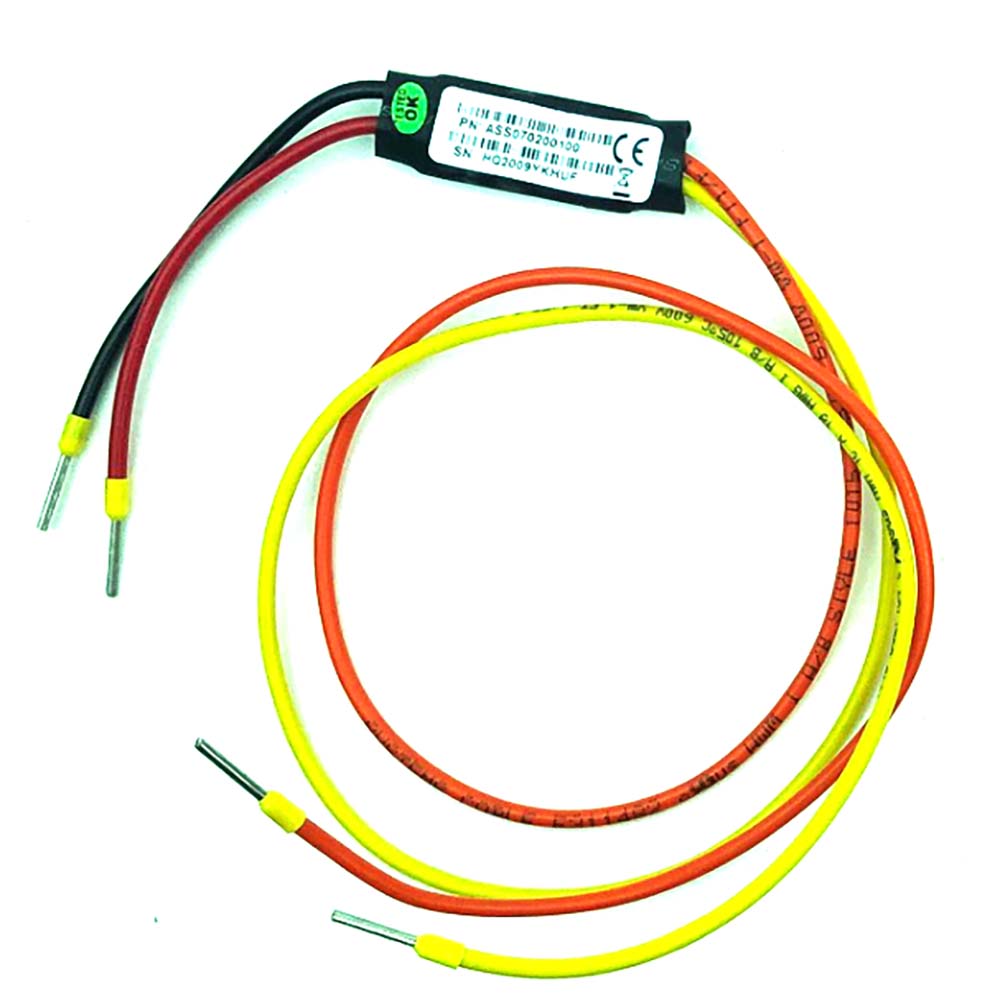

Cable for Smart BMS CL 12-100 to MultiPlus

This cable will allow the MultiPlus 500VA 1600VA, MultiPlus Compact 800VA 2kVA and MultiPlus-II models to be used with BMS products that have no VE.Bus interface, such as the Smart BMS CL 12-100 and the small BMS. These MultiPlus models can be controlled from the Load/Charge Disconnect outputs and Load/Charger outputs respectively.

The cable must be wired to the remote on/off connector of the MultiPlus models:

• When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and the red wire to the (+) terminal.
• When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal and the red wire to the right (IN) terminal.
• When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal.

Both the Load/Charge Disconnect outputs of Smart BMS CL 12-100 and Load/Charger outputs of the small BMS must be in High state in order for the MultiPlus to operate. After shutdown due to low battery voltage, run the alternator or use a battery charger on the primary side of the BMS to reset the system. The MultiPlus will then switch on and start charging (if connected to an AC power source).

The Victron Energy Cable for Smart BMS CL 12-100 to MultiPlus (Part Number: ASS070200100) provides a seamless connection between your Smart BMS and MultiPlus inverter/charger systems. Designed to enable compatibility with models such as MultiPlus 500VA to 1600VA, MultiPlus Compact 800VA to 2kVA, and MultiPlus-II, this cable simplifies system integration for efficient battery management and power control. It allows users to operate their MultiPlus units via BMS signals, ensuring optimal performance and safety during operation. The cable's wiring configuration varies depending on the MultiPlus model, with specific connections to the remote on/off terminals for each. For MultiPlus 500VA-1200VA models, connect the black wire to the ON terminal and the red wire to the (+) terminal. For MultiPlus Compact 800VA-2kVA models, connect the black wire to the middle terminal and the red wire to the right (IN) terminal. For MultiPlus-II models, connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal. Proper wiring ensures that the MultiPlus responds correctly to the BMS status, with the system activating when the Load/Charge Disconnect outputs are in a high state. The BMS must be reset after shutdowns caused by low battery voltage, either by running the alternator or using a battery charger, to restart charging operations. This cable is essential for users integrating Smart BMS CL 12-100 with Victron MultiPlus systems, providing reliable control over power management processes. Please consult your dealer for support, repairs, or returns related to this product, and ensure correct wiring for optimal system performance.

Features:

• Compatible with Victron MultiPlus, MultiPlus Compact, and MultiPlus-II models for seamless integration

• Enables control of inverter/charger operation via Smart BMS signals

• Wiring configurations tailored for different MultiPlus models to ensure correct setup

• Facilitates efficient battery management through Load/Charge Disconnect and Load/Charger outputs

• Designed for easy installation with clear wiring instructions for remote on/off control
