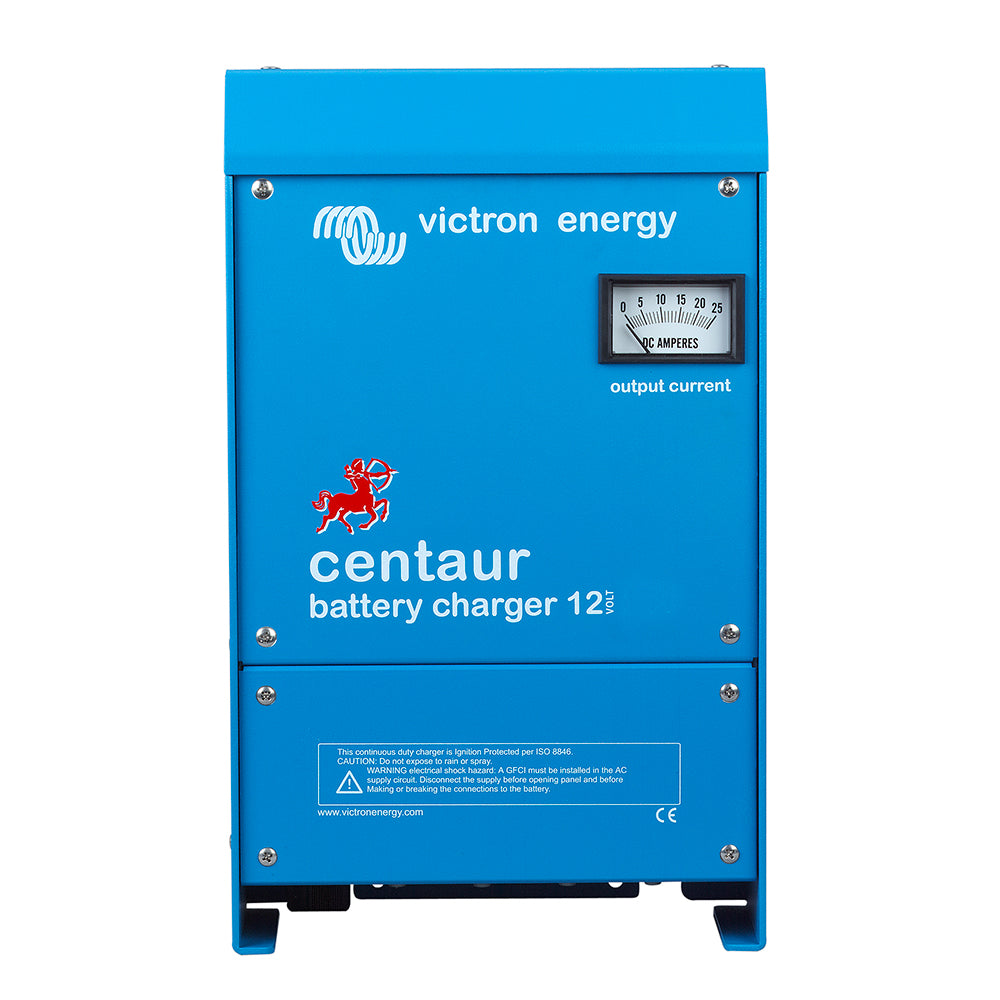

Victron Energy Centaur Charger 12 VDC 60AMP 3-Bank Model CCH012060000

Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger Model CCH012060000 is a high-performance, three-bank battery charger designed for demanding environments. Constructed with durable aluminum epoxy powder-coated cases, complete with drip shields and stainless steel fixings, it withstands heat, humidity, and salt air exposure. Each circuit board is protected by an acrylic coating to maximize corrosion resistance, ensuring longevity and reliable operation in adverse conditions. Integrated temperature sensors monitor environmental conditions, automatically reducing output current when necessary to prevent overheating and maintain optimal performance.

Its universal input voltage range of 90-265V AC, compatible with both 50Hz and 60Hz power supplies, makes it suitable for global applications. The charger also accepts DC supplies from 90 to 400 volts, providing versatile power options. With three isolated outputs, each capable of delivering the full rated current, it can simultaneously charge three separate battery banks without compromise. This feature is ideal for complex systems requiring independent battery management or multiple power sources.

The three-stage charging process includes bulk, absorption, and float phases, with temperature compensation for precise voltage regulation tailored to different battery types such as Flooded Lead-acid, Gel, or AGM. An internal timer ensures proper charging duration, transitioning smoothly from bulk to float to optimize battery health and lifespan. The DIP switch allows users to select the appropriate voltage settings for different battery chemistries, providing flexibility and customization. This charger is engineered for reliability, efficiency, and adaptability in various industrial and marine applications.

For additional information on warranty and support, please refer to the provided documentation and contact your dealer for assistance with returns, repairs, or technical support. This product complies with safety warnings and chemical exposure notices mandated by California law, emphasizing the importance of handling and installation precautions. The Victron Centaur Charger is a robust solution for ensuring your batteries are charged safely and efficiently under demanding conditions.

Features:

• Durable construction with aluminium epoxy powder-coated case, drip shield, and stainless steel fixings for corrosion resistance

• Protected circuit boards with acrylic coating for maximum durability in harsh environments

• Temperature sensors ensure operation within safe limits, automatically reducing output current if necessary

• Universal input voltage range of 90-265V AC and accepts 90-400V DC supply for versatile power options

• Three isolated outputs capable of delivering full rated current to multiple battery banks simultaneously

• Three-stage charging process with temperature compensation for optimal battery care

• Adjustable voltage settings for different battery types via DIP switch

• Compatible with Flooded Lead-acid, Gel, and AGM batteries

• Designed for industrial and marine applications requiring reliable, efficient charging
