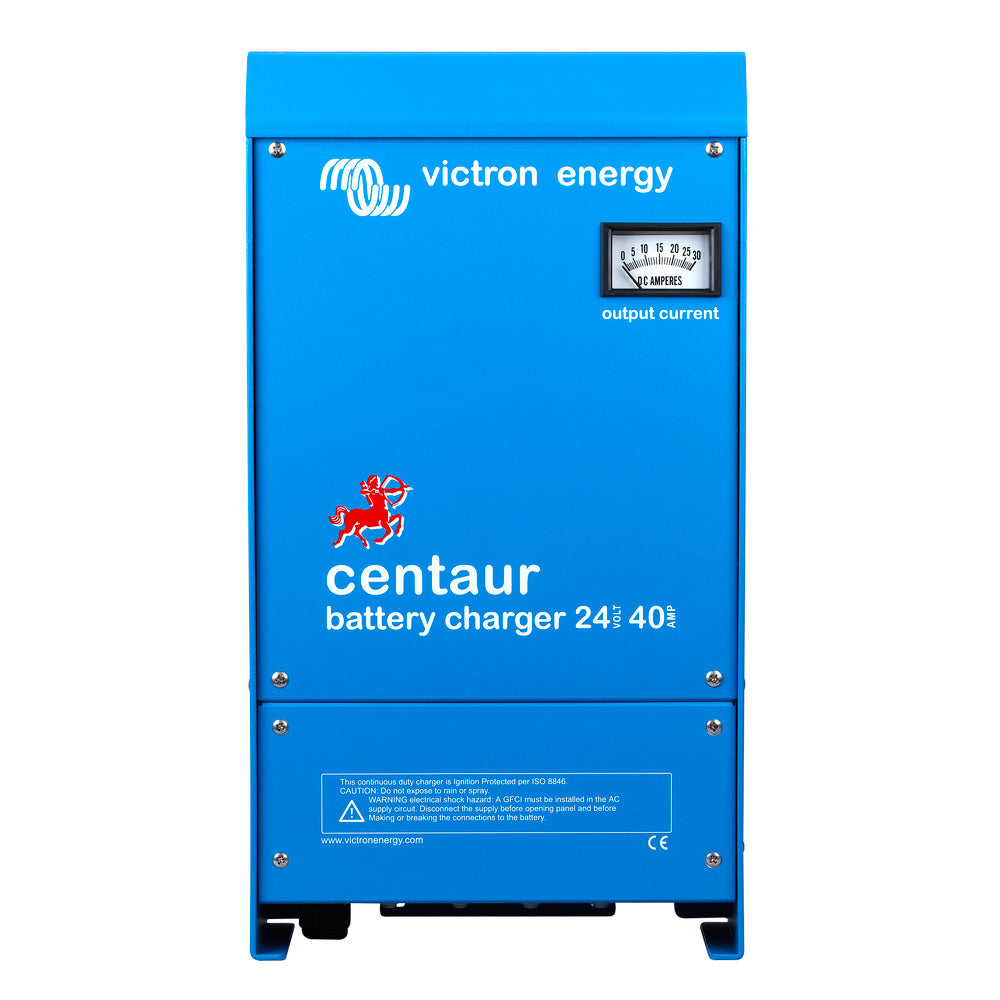

Victron Energy Centaur Charger 24VDC 40A 3-Bank for Marine and RV Applications

Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger model CCH024040000 is a reliable and high-performance solution for charging multiple battery banks in demanding environments. Featuring a robust aluminium epoxy powder-coated case with a drip shield and stainless steel fixings, this charger is built to withstand heat, humidity, and salt air exposure. The acrylic-coated circuit boards provide maximum corrosion resistance, ensuring long-term durability even in harsh conditions. Integrated temperature sensors monitor the environment and automatically reduce output current if necessary, maintaining optimal operation across extreme temperatures. The charger supports a universal input voltage range of 90-265V AC, compatible with both 50Hz and 60Hz power supplies, and can also accept a 90-400V DC supply, offering versatile installation options for various power sources. With three isolated outputs, each capable of delivering the full rated current, this model efficiently charges up to three separate battery banks simultaneously, making it an ideal choice for complex systems requiring reliable multi-bank charging. The three-stage charging process includes bulk, absorption, and float stages, with temperature compensation to protect battery health and extend lifespan. The charger adjusts voltage levels based on temperature, using a 2 mV/C (1 mV/F) per cell correction, and features a DIP switch to select optimum settings for flooded lead-acid, gel, or AGM batteries. This ensures optimal charging tailored to your specific battery chemistry. The Victron Centaur Charger provides a dependable power management solution that combines rugged construction, advanced charging technology, and versatile input options for marine, RV, and off-grid applications. For detailed warranty information, please visit the provided link. Note that this product may contain chemicals known to cause reproductive harm in California; more details are available at P65Warnings.ca.gov. For support, repairs, or returns, contact your dealer directly.

Features:

• Robust aluminium epoxy powder-coated case with drip shield and stainless steel fixings for durability in harsh environments

• Acrylic-coated circuit boards for maximum corrosion resistance

• Temperature sensors with automatic current reduction for extreme temperature management

• Universal input voltage range of 90-265V AC and 90-400V DC support for versatile power sources

• Three isolated outputs capable of simultaneously charging three battery banks at full rated current

• Three-stage charging process with temperature compensation to optimize battery health

• Selectable charge/float voltages tailored for flooded lead-acid, gel, or AGM batteries
