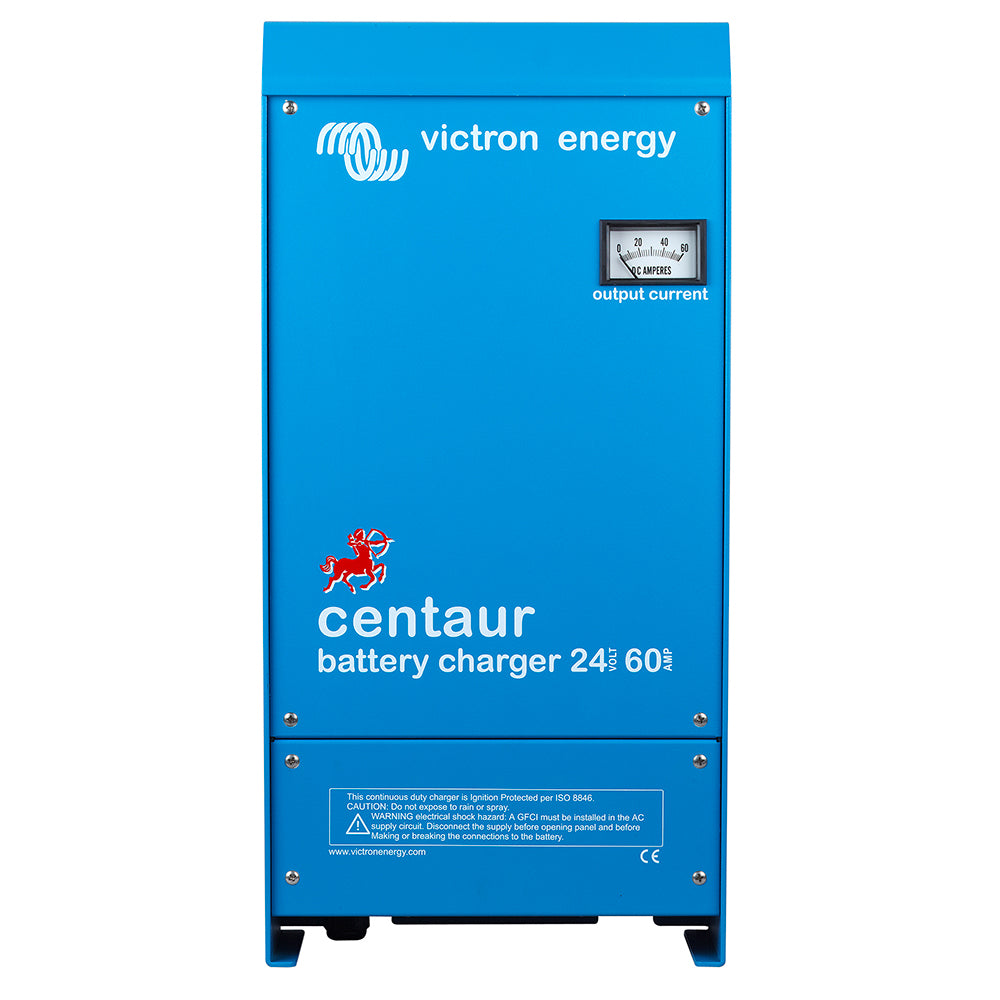

Victron Energy Centaur Charger 24VDC 60AMP 3-Bank with Universal Power Input

Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with 2 mV/C ( 1 mV/F) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Centaur Charger model CCH024060000 is a high-performance, multi-bank battery charger designed for demanding environments. Featuring a robust aluminium epoxy powder-coated case with a drip shield and stainless steel fixings, this charger is built to withstand harsh conditions such as heat, humidity, and salt air. Its acrylic-coated circuit boards provide exceptional corrosion resistance, ensuring reliable operation over time. The integrated temperature sensors monitor environmental conditions and automatically adjust the output current to prevent overheating, optimizing battery health and charger longevity. This model supports a wide input voltage range from 90 to 265 volts AC, making it suitable for global use with both AC and DC power supplies, including DC-DC and AC-DC conversions. It can also accept a DC supply from 90 to 400 volts, providing flexibility for various power setups. With three isolated outputs, the charger can simultaneously charge three separate battery banks at full rated current, simplifying multi-battery system management. The three-stage charging process includes bulk, absorption, and float phases, with temperature compensation to ensure optimal battery conditions. The charger transitions from bulk to float mode after reaching 70% of the rated current, with a built-in four-hour timer to manage the absorption phase. An internal temperature sensor adjusts the charging voltage by 2 mV per degree Celsius per cell, and a DIP switch allows customization for flooded lead-acid, gel, or AGM batteries. For further details, warranty information can be found at the provided link. Please note the product contains chemicals known to cause reproductive harm, as detailed by California law. For support, repairs, or returns, contact your authorized dealer. The Victron Centaur Charger offers reliable, versatile, and efficient battery charging for a variety of applications, ensuring your system remains operational in challenging environments.

Features:

• Robust aluminium epoxy powder-coated case with drip shield and stainless steel fixings for durability in harsh environments

• Acrylic-coated circuit boards provide maximum corrosion resistance

• Temperature sensors automatically adjust output current to prevent overheating

• Universal input voltage range from 90 to 265 volts AC, compatible with AC and DC supplies

• Accepts a 90-400 V DC power supply for flexible installation

• Three isolated outputs allow simultaneous charging of three battery banks at full rated current

• Three-stage charging with temperature compensation for optimal battery health

• Bulk, absorption, and float charging modes with a four-hour timer for absorption phase

• Configurable for Flooded Lead-acid, Gel, or AGM batteries using internal DIP switch
