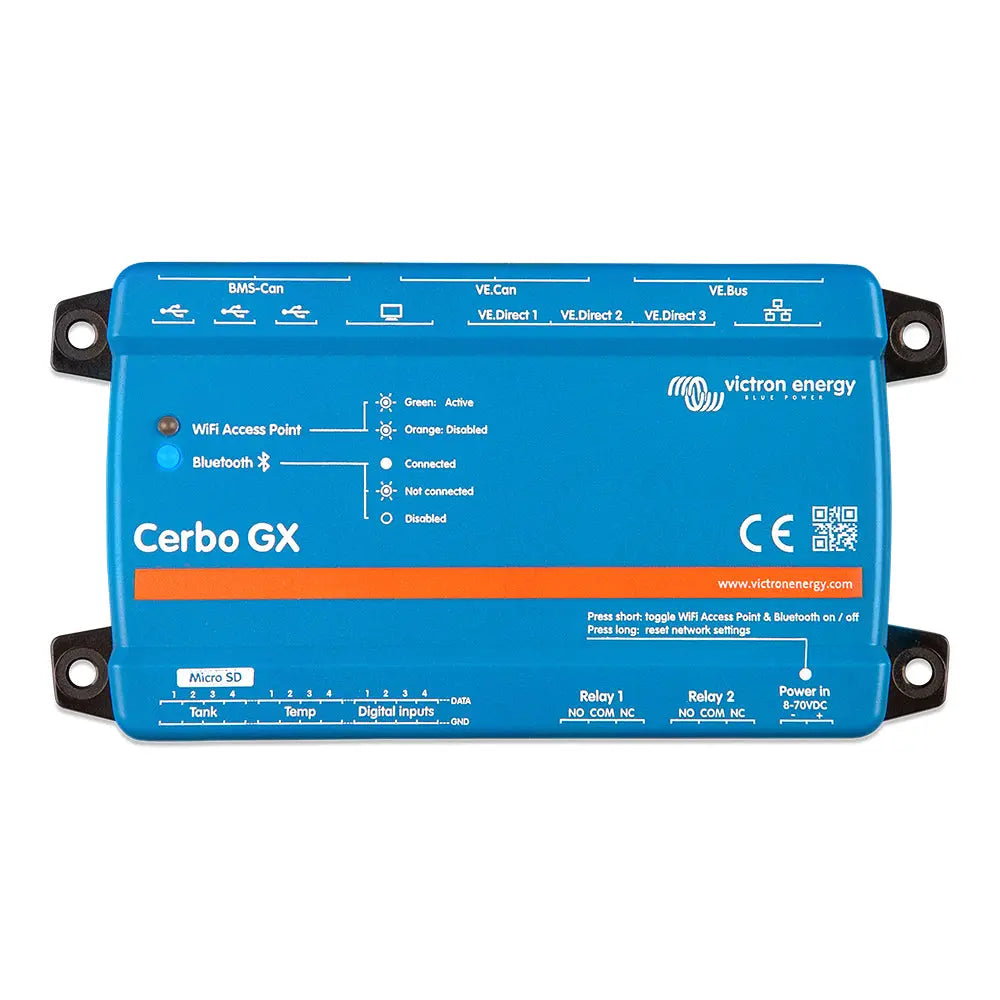

Victron Energy Cerbo GX MK2 Communication Center for Advanced Power Systems

Cerbo GX MK2

Victron's Cerbo GX MK2 is the most commonly used GX product. This communications center has hardware revision 2 with two VE.Can ports, 3 USB host ports, and digital input pulse counting.

The Cerbo GX MK2 Is Different from the Cerbo Gx since It Has:

• Two fully functional CAN bus ports- VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port
• VE.Can 1 is isolated (on previous models, there was no isolated CAN-bus port)
• RJ-45 sockets have been rotated 180 degrees, so it's easier to take the cables out
• All three USB ports are fully functional (instead of two functional and one for power (to a GX Touch) only)
• Digital inputs can do pulse counting

This communication center allows users to always have perfect control over the system from wherever they are and maximizes its performance. Connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, an MFD, or Victron's VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way.

Perfect Monitoring Control

Instantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.

Maximize Your System Performance

The Cerbo GX MK2 maximizes the performance of a system's components in real time and keeps them in perfect tune. This enclosure has two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port. VE.Can 1 is isolated. In the previous models, there was no isolated canbus port. This can be useful where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port are required.

Expand Your View

The (optional) GX MK2 Touch 50 display gives users an instant overview of their system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple Mounting Configuration

The Cerbo GX MK2 is now optimized to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included), and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX MK2). It is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via the VictronConnect app.

Outsmart Any Power Challenge

The Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as marine, or backup off-grid, it will auto-start/stop the generator, or delay ignition until the end of quiet periods. It keeps backup batteries at 100% for energy storage systems, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving users money. For RVs and emergency vehicles, it keeps vital systems functioning flawlessly. But thats just to name a few...

Specifications:

• Remote Console: Yes
• Buzzer: Yes
• VE.Direct ports (always isolated): 3
• VE.Bus (always isolated): 2 paralleled RJ45 sockets
• VE.Can: Yes, VE.Can 1 isolated VE.Can 2 non-isolated
• USB: 3 USB Host ports
• Ethernet: 10/100 RJ45 socket - isolated except for shield
• WiFi: Built-in
• Bluetooth Smart: Yes
• Micro SDcard slot: SDHC cards up to max. of 32GB (5)
• Second CAN-bus port (BMS-Can): Yes - see VE.Can
• BMS-Can port: No
• Built-in RS485: No
• Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC
• Resistive Tank Level Inputs: 4
• Temperature Sense Inputs: 4
• Same as part# BPP900450110 other than Country of Origin
• Digital Inputs: 4

Performance Specifications:

• CPU: Dual-core
• RAM: 1GB
• Max. VE.Direct Devices: 15

Other Specifications:

• Supply Voltage: 8 - 70 VDC
• Power Draw: 2,5 to 5 W
• Mounting: Wall or DIN rail (35mm)
• Outer Dimensions (H x W x D): 478 x 154 x 48 mm
• Operating Temperature: -20 to +50 degrees C
• Battery Backup Clock: Yes
• 5V Output: No

Standards:

• Safety: IEC 62368-1
• EMC: EN 301489-1, EN301489-17
• Automotive: ECE R10-6

The Victron Energy Cerbo GX MK2 is a versatile and powerful communication hub designed to provide seamless control and monitoring of your renewable energy or backup power system. Featuring hardware revision 2, this device offers enhanced connectivity options including two VE.Can ports—one of which is isolated—three USB host ports, and digital input pulse counting. Its robust design ensures reliable performance in various applications such as off-grid systems, marine setups, RVs, and backup power solutions.

With the Cerbo GX MK2, users can monitor battery state of charge, power consumption, and solar or generator power harvest in real time. The system allows for remote management through the Victron Remote Management (VRM) portal, or locally via the optional GX Touch 50 display, VictronConnect app, or integrated Bluetooth. This flexibility enables users to easily adjust system settings, control shore power input, start or stop generators, and receive alerts or perform diagnostics remotely, simplifying complex power management tasks.

The device's upgraded features include two fully functional CAN bus ports—VE.Can 1 and VE.Can 2—with VE.Can 1 being isolated, making it suitable for integration with Lynx Smart BMS and RV-C systems. Its intuitive mounting options include wall or DIN rail installation, with the optional small DIN-35 adapter. The device's single cable connection reduces installation complexity, while Bluetooth capability facilitates quick configuration via the VictronConnect app. The Cerbo GX MK2 is built to meet high safety and EMC standards, ensuring dependable operation in demanding environments.

For expanded system visibility, the optional GX MK2 Touch 50 display offers a compact, waterproof, and top-mountable interface that provides an instant overview of system status and allows for quick adjustments. Its sleek design and easy installation make it an excellent addition for professional installers or advanced users seeking a comprehensive and user-friendly control solution. Whether managing backup batteries, solar power, or generator integration, the Cerbo GX MK2 delivers reliable, real-time control to optimize your system’s performance and energy efficiency.

Features:

• Dual VE.Can ports with one isolated port for versatile system integration

• Three fully functional USB host ports for connectivity with multiple devices

• Digital inputs capable of pulse counting for precise monitoring

• Built-in Bluetooth and WiFi for remote configuration and management

• Supports Ethernet (RJ45) connectivity with isolation except for shield

• Compact wall-mountable or DIN rail installation design

• Optional GX Touch 50 display for instant system overview and control

• Automatic generator start/stop and load management capabilities

• High safety and EMC standards compliance including IEC 62368-1

• Real-time system monitoring of batteries, PV, generator, and mains power
