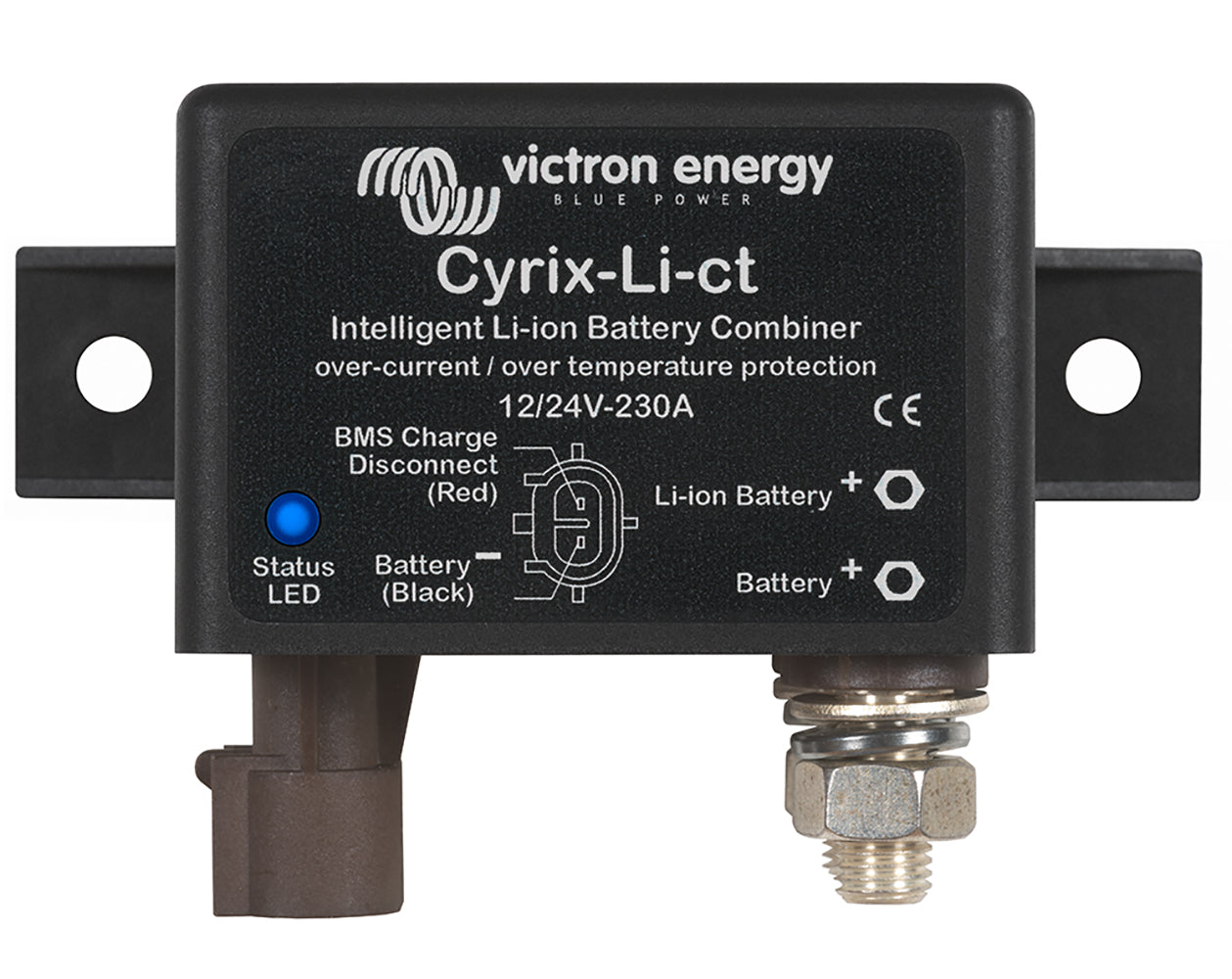

Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Lithium-Ion Battery Combiner

Cyrix-Li-ct 12/24V-230A Intelligent Li-Ion Battery Combiner

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is virtually no voltage loss, so the output voltage of alternators or battery chargers does not need to be increased.

The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.

The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:

• If the charge disconnects the output of the VE.Bus BMS is high, and
• If it senses 13,4 V (resp. 26,8 V) or more on one of its power terminals.

The Cyrix will disengage immediately:

• When its control output becomes free floating, signaling cell over voltage or cell over temperature, and when battery voltage drops below 13,2 V
• Start assist function: a short negative pulse will close the relay for 30 seconds
• A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over-temperature

The Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Lithium-Ion Battery Combiner offers a reliable and efficient solution for managing multiple batteries in your vehicle or RV system. This microprocessor-controlled relay automatically connects batteries in parallel when one reaches a preset voltage, ensuring optimal charging without the voltage drop associated with traditional diode isolators. Designed to handle high current loads, the Cyrix-Li-ct features a seamless switching process that maintains system voltage integrity, making it an excellent choice for integrating lead-acid and lithium-ion batteries. Its intelligent design ensures minimal power loss, preserving your system's efficiency and performance. The device is suitable for various applications, especially where a combination of lead-acid and lithium batteries is needed, such as in camper vans, boats, or off-grid setups. Its robust construction and advanced features make it a dependable component to enhance your energy management system.

Features:

• Automatic battery parallel connection when charging: Connects batteries when voltage reaches the preset level.

• Disconnection during discharge: Separates batteries when voltage drops below the float level.

• Low voltage disconnect: Prevents deep discharge by disengaging at 13.2V.

• Start assist function: Provides a short negative pulse to assist engine startup for 30 seconds.

• Transient voltage suppressor: Limits voltage spikes during disengagement due to overvoltage or over-temperature conditions.

• High current capacity: Supports up to 230A for demanding applications.

• Designed for lead-acid and lithium-ion batteries: Compatible with 12V and 24V systems, including LiFePO4 batteries.

• Microprocessor-controlled operation: Ensures precise and reliable switching with minimal voltage loss.

• No voltage loss: Eliminates the need to increase alternator or charger voltage, optimizing system efficiency.
